Wow that video is just hilarious
yutzybrian is offline   Reply With Quote
Old 08-05-2011, 07:46 AM   #12
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

For all those shafts to be stripped, he'd need a ton of power and pure luck. I'm banking on a diff pin that broke or the roll pin allowing the diff pin to move and carve those strips off the diff cover housing. there'* really no other way those could all be in the pan unless a different part was shaving the case.

The parts you mentioned should have gotten caught in the VB and it'* baby filters from what I've heard about fluid flow paths. Although I will say, I've never looked them up specifically and could be wrong on that.
BillBoost37 is offline   Reply With Quote
Old 08-05-2011, 10:24 AM   #13
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hmmm, good point Bill. I assumed it was all stuck to the magnet there fore not aluminum. I should check that. I thought I heard a grinding sound from the drivers side when the engine was running and in gear.
Danthurs is offline   Reply With Quote
Old 08-05-2011, 01:39 PM   #14
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Once again, moving quickly may have tripped up my theory.

If that'* all steel, then it'* not the diff cover. Gotta look at pics again.

The stuff in your hand, looks like strips. Ground shafts are going to look more chunkish in my experience.

Yeah, looks like a large piece of steel was shaved. I ioriginally thought it looked like shaved aluminum strips.
BillBoost37 is offline   Reply With Quote
Old 08-05-2011, 02:00 PM   #15
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

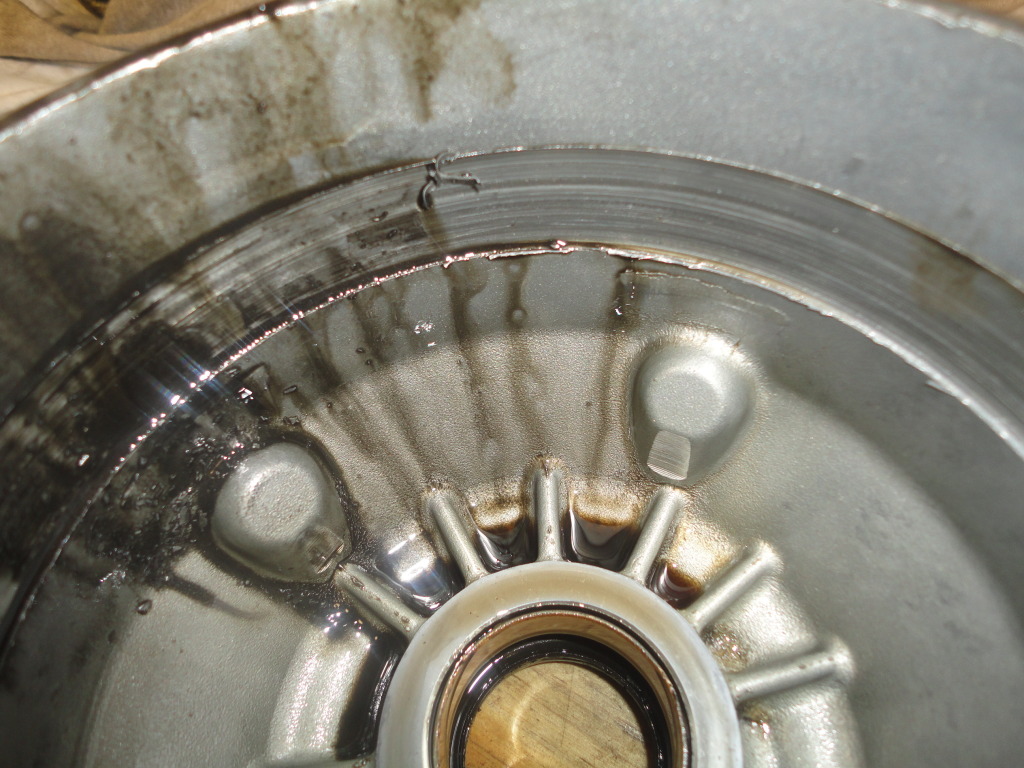

You were spot on Bill, it was me that made the assumption.

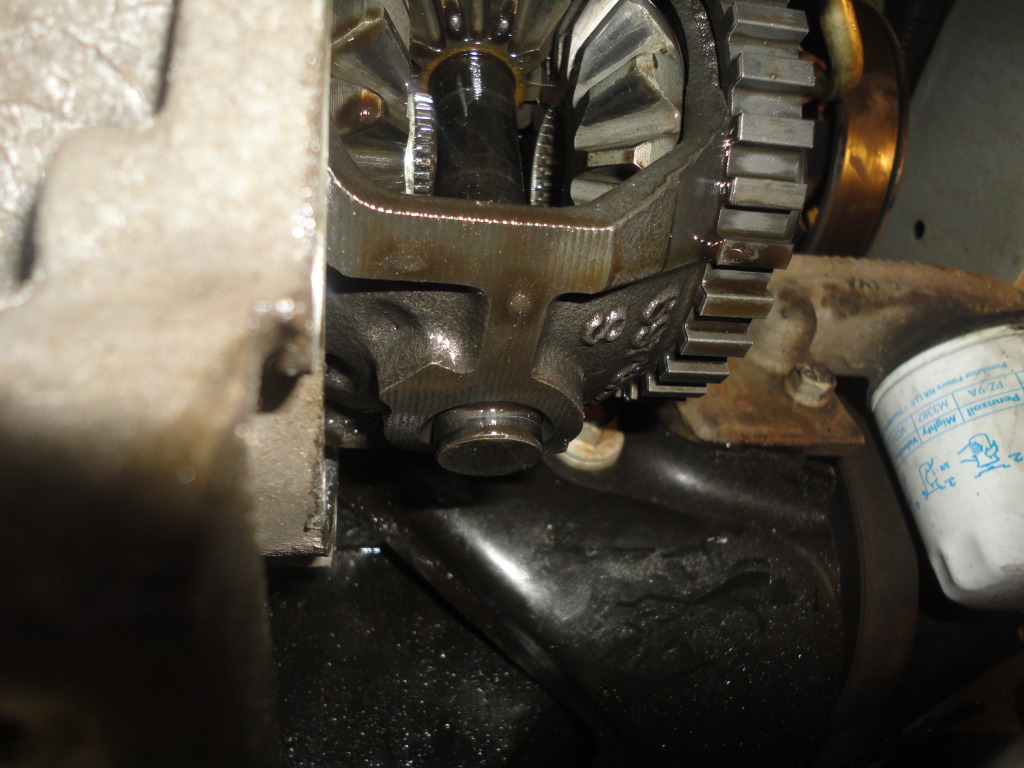

The diff pin moved.
Attached Thumbnails
2004 Impala transmission.-dsc04858.jpg   2004 Impala transmission.-dsc04859.jpg
Danthurs is offline   Reply With Quote
Old 08-08-2011, 08:13 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Does it look like the roll pin broke or the diff pin itself?

Kinda cool huh? The cover is technically reusable as it sits since none of that should ever be touching, but since he needs a diff, I'd probably do another cover as well.

IIRC the reluctor wheels are how you can tell the diff'* apart if you don't check RPO'* at a JY. The reluctors on the end of the diff has a number stamped into it.
BillBoost37 is offline   Reply With Quote
Old 08-08-2011, 11:38 AM   #17
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Only the roll pin moved. Knocked it back in to place with a punch.
Danthurs is offline   Reply With Quote
Old 08-08-2011, 01:25 PM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Odd, cool...

I've only seen a couple roll pins that broke. Nice easy fix.
BillBoost37 is offline   Reply With Quote
Old 08-08-2011, 02:35 PM   #19
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Odd indeed, the roll pin just moved off center. A punch and a hammer and it was back where it belonged.
Danthurs is offline   Reply With Quote
Old 08-12-2011, 05:48 PM   #20
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Well, guess I'm not that lucky. Going to have to pull it anyways. Bad noise.

Attached Thumbnails
2004 Impala transmission.-th_m4h05047.jpg
