If you ever see a diff pin protruding from where it should be, the diff is JUNK period!!

If you have reverse, you know that the you have a solid connection between the 2nd clutch drum and the front planetary. So if you have a good 1st gear and it goes to neutral when it is supposed to upshift into 2nd, the valve body is making the 1-2 upshift. So either 1-your 2nd clutch is not holding, 2-you have a problem with the 2nd clutch hub on your input housing or 3-you have no oil going to the 2nd clutch.
sgp358 is offline   Reply With Quote
Old 08-19-2011, 09:56 AM   #32
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

OK, I checked the oil pressure and I had 54 psi, so I'm going to swap out a new clutch pack then.
Danthurs is offline   Reply With Quote
Old 08-19-2011, 12:14 PM   #33
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Make to to verify that your repair will actually fix the trans before you put it back in the car.
sgp358 is offline   Reply With Quote
Old 08-19-2011, 12:18 PM   #34
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

How would I do that?
Danthurs is offline   Reply With Quote
Old 08-19-2011, 01:15 PM   #35
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Do all your air checks and make sure that everything mechanically is OK. Just go over everything that I outlined. You definitely have a mechanical issue. Make sure that you find the cause of the problem.
sgp358 is offline   Reply With Quote
Old 08-21-2011, 04:04 PM   #36
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

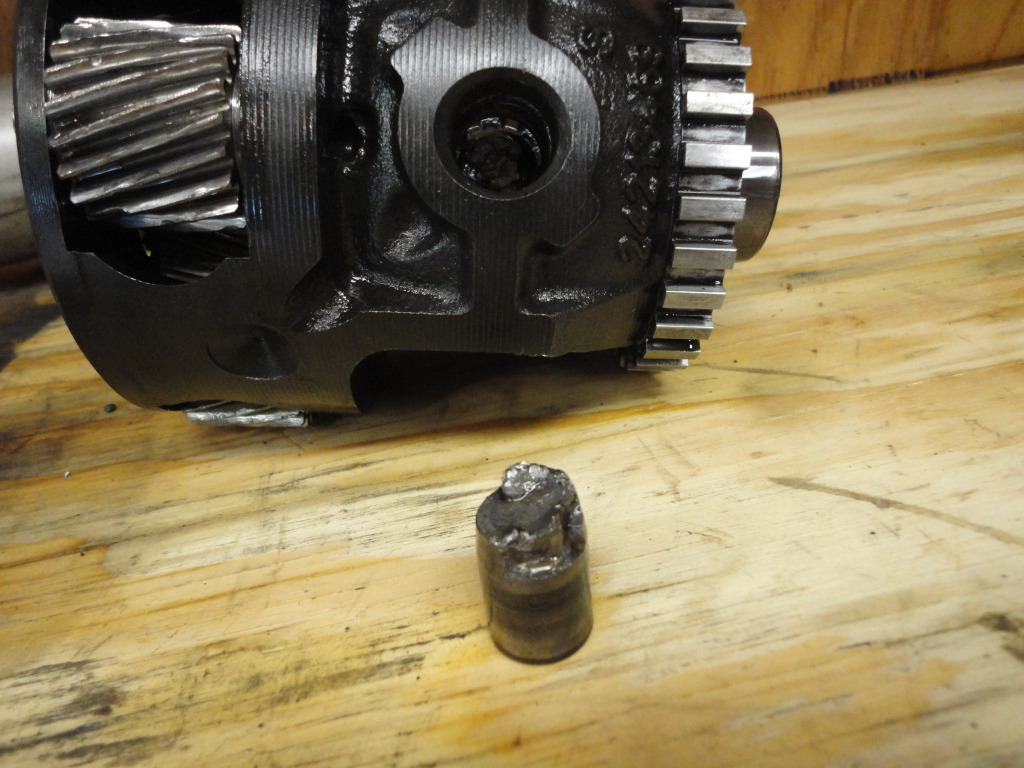

Looking over that diff a bit closer, ya, I think this may have been the start of the problem.

Attached Thumbnails
2004 Impala transmission.-dsc05197.jpg
Danthurs is offline   Reply With Quote
Old 08-22-2011, 07:47 AM   #37
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If you had pulled that diff. You would have noticed the gears/pin being floppy etc. I've been there, but pulled the diff and said "this doesn't look good".

I have also found that same bearing to look like that.
BillBoost37 is offline   Reply With Quote
