Default vats

starting disabled due to theft system malfunction, how do you get the car started? It is a 1997 deville. It is not pass key to related
kathymay is offline   Reply With Quote
Old 09-06-2014, 04:40 PM   #2
Junior Member
Thread Starter

Join Date: Sep 2014
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
kathymay is on a distinguished road
Default

please reply asap if possible
kathymay is offline   Reply With Quote
Old 09-06-2014, 10:59 PM   #3
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,591
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Is the security light flashing when you try to start it?
Have you tried cleaning the chip on the key or even another key?
Soft Ride is offline   Reply With Quote
Old 09-06-2014, 11:47 PM   #4
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Is this PassKey I or II(has a black resistor pellet in key shaft), or PK III(has transponder in head of key)?

Turn key to "on" position.....does the SECURITY light come on for three seconds and go out, or does it stay on solid?

Does the engine crank over and not start, or doesn't crank at all?

Have you checked for codes?

If the SECURITY light does go out, but the engine does not crank over, you need to check for power on the purple wire to the starter solenoid with the key in the crank position.......

Checked battery and cables?
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
Soft Ride (09-07-2014), WilliamE (09-07-2014)
Old 09-11-2014, 06:10 AM   #5
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

I'm pretty sure the 97 Deville had the square key with VATS. If this is the case I'm pretty sure one of the tiny wires that goes into the ignition cylinder has broke. IMO the quickest way to fix this issue is to buy a new ignition cylinder, make a copy of your original ignition key without the chip in it and plug the new ignition cylinder into the steering column harness, tape your original key into the new cylinder and secure it under the dash panel and use the new copy key as your primary key. Basically this save you from tearing your steering colum apart to replace the lock cylinder and you don't need a ohm meter to figure out what resistance your key is.

Last edited by 75 racer; 09-11-2014 at 06:12 AM.
75 racer is offline   Reply With Quote
Old 09-11-2014, 10:51 AM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I have actually done that in the past, but only with a customer'* permission, because now the vehicle is not protected at the lock cylinder....pop it and go...

Cheaper with a resistor, though....and you don't need new keys....
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (09-11-2014)
Old 09-11-2014, 06:29 PM   #7
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by 75 racer View Post
I'm pretty sure the 97 Deville had the square key with VATS. If this is the case I'm pretty sure one of the tiny wires that goes into the ignition cylinder has broke. IMO the quickest way to fix this issue is to buy a new ignition cylinder, make a copy of your original ignition key without the chip in it and plug the new ignition cylinder into the steering column harness, tape your original key into the new cylinder and secure it under the dash panel and use the new copy key as your primary key. Basically this save you from tearing your steering colum apart to replace the lock cylinder and you don't need a ohm meter to figure out what resistance your key is.
I am confused, do you mean tapping your original key into the cylinder wiring?
Or did you really mean taping?

If they have a pellet in there the all you should have to do is measure the resistance of the pellet, if they do not have a multimeter they are pretty cheap for a basic one.
Get the resistance, and some resistors to match the resistance of the pellet, then at the end of each wire coming from the resistor double it back, so it looks like a closed together u, hopefully that makes sense, then just push each end into the main wiring harness spots that the ignition columns wires go into, if you do it well it will stay in there, and not fall out, that is what I did, and there was no need to cut any column wiring.

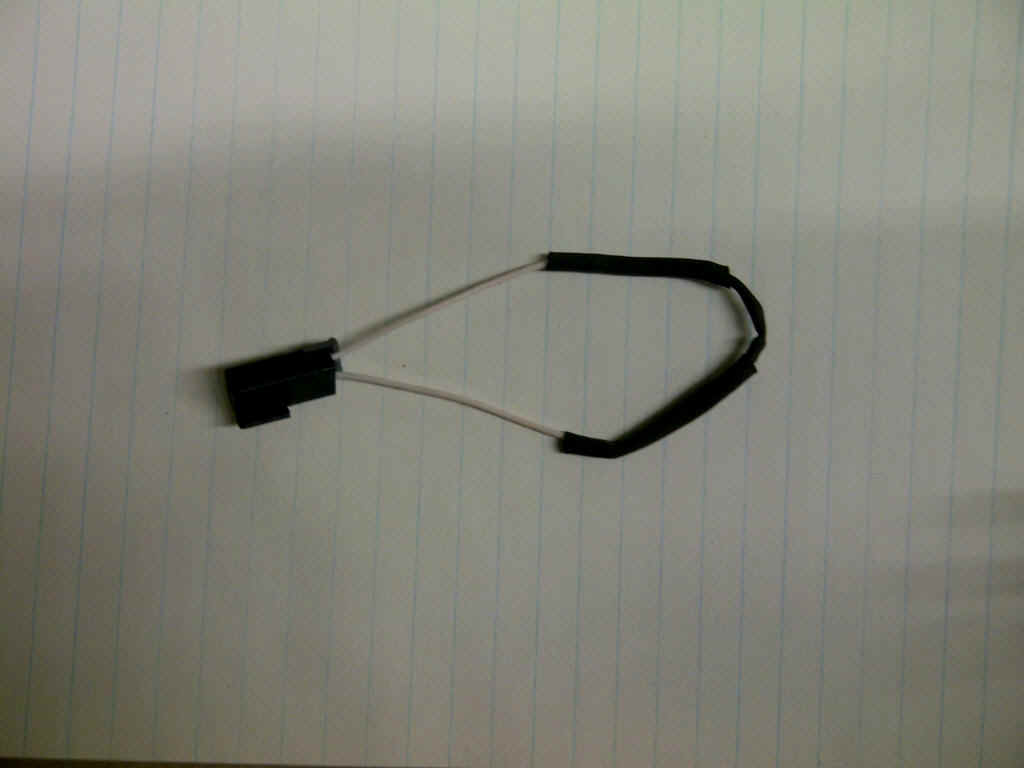

Here is an even better way to do what I am talking about, and it should not fall out, you will need to little black connector that plugs into the main wring harness though.




How to bypass the VATS system in a late model GM vehicle
Attached Thumbnails
WilliamE is offline   Reply With Quote
Old 09-11-2014, 06:30 PM   #8
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

Yes your right 30-40 bucks for a lock cylinder verses a few dollars for a radio shack resistor is cheaper but many DIYers don't have a multimeter or the understanding of ohms law to do the bypass method.
75 racer is offline   Reply With Quote
Old 09-11-2014, 06:33 PM   #9
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Very true, you have a point.
WilliamE is offline   Reply With Quote
Old 09-11-2014, 06:39 PM   #10
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

@William E, if you buy a replacement lock cylinder it won't be keyed the same as the old lock so it comes with a basic key without the resistor in it. You need to find out what resistance key the car came with and have it cut to the new cylinder if you were to replace it in the column. If you were not to replace the cylinder in the column and were just trying to get your car to start again the original key is the proper resistance so you just push it into the new lock cylinder so it compleats the VATS circuit and tape it under the dash. It'* the same thing as adding the resistors but without needing to know what resistance value is needed.
75 racer is offline   Reply With Quote
