Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 06-06-2014, 02:04 PM   #11
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

Did you check to make sure replacement transmission had the same final drive ratio? They had a few different ones to choose from.
75 racer is offline   Reply With Quote
The Following User Says Thank You to 75 racer For This Useful Post:
WilliamE (06-06-2014)
Old 06-06-2014, 09:37 PM   #12
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by 75 racer View Post
Did you check to make sure replacement transmission had the same final drive ratio? They had a few different ones to choose from.
Last I knew, it doesn't matter. If the the ratio'* are different, he can swap them around as LONG as they are the same year trans. ATSG manuals say 94, 95 and I think 96 used different types of cut gears for the diff'* which makes them NON interchangeable.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
WilliamE (06-07-2014)
Old 06-12-2014, 12:42 PM   #13
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2014
Posts: 33
Thanked 3 Times in 1 Post
nwohiochevyguy is on a distinguished road
Default

Transmission was from a 97, and swap went fine, car still cruises great at speed.

However, car still does not have first gear.....guess its an electrical problem that is not "IN" the transmission.

Car starts in 2nd gear whether in Drive or manually shifting.

Where to go from here?
nwohiochevyguy is offline   Reply With Quote
Old 06-12-2014, 03:31 PM   #14
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i would check the wiring harness from the trans to the pcm, could have a shorted wire
jwfirebird is offline   Reply With Quote
Old 06-12-2014, 03:49 PM   #15
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2014
Posts: 33
Thanked 3 Times in 1 Post
nwohiochevyguy is on a distinguished road
Default

Yeah that'* what I'm thinking also, but any idea what wire would cause a first gear problem like this?

I will pull the wiring harness apart and see if I can find a broken wire, but would love to know which wire I should be looking for in the bundle.

Anyone have a wiring diagram?
nwohiochevyguy is offline   Reply With Quote
Old 06-12-2014, 04:03 PM   #16
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2014
Posts: 33
Thanked 3 Times in 1 Post
nwohiochevyguy is on a distinguished road
Default

I found this,

https://images.search.yahoo.com/imag...R&fr=yfp-t-301

Any idea'* which wire it would be?
nwohiochevyguy is offline   Reply With Quote
Old 06-12-2014, 04:54 PM   #17
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i dont know much about that trans but i would think the lt green, 1-2 shift control could be an issue, if everything else works
jwfirebird is offline   Reply With Quote
Old 06-16-2014, 09:52 PM   #18
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2014
Posts: 33
Thanked 3 Times in 1 Post
nwohiochevyguy is on a distinguished road
Default

OK found this on Triple Edge Performance - Home Page and it seams to make sense.

Shift Solenoid Patterns for each gear

Range 1-2 Solenoid 2-3 Solenoid

Park ON ON
Reverse ON ON
Neutral ON ON
1st Gear ON ON
2nd Gear OFF ON
3rd Gear OFF OFF
4th Gear ON OFF

Playing with the car more it seams to use 2nd and 3rd gear fine, but 1st and 4th don't seam to engage. However Park, Neutral and Reverse all work which also shows the 1-2 solenoid being "ON".

Makes me scratch my head even more.

Does anyone have a wiring schematic for where the transmission wires go to? Do they go through the switch on the transmission where the cable attaches to. I believe this to be the NSBU switch
nwohiochevyguy is offline   Reply With Quote
Old 06-16-2014, 10:05 PM   #19
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

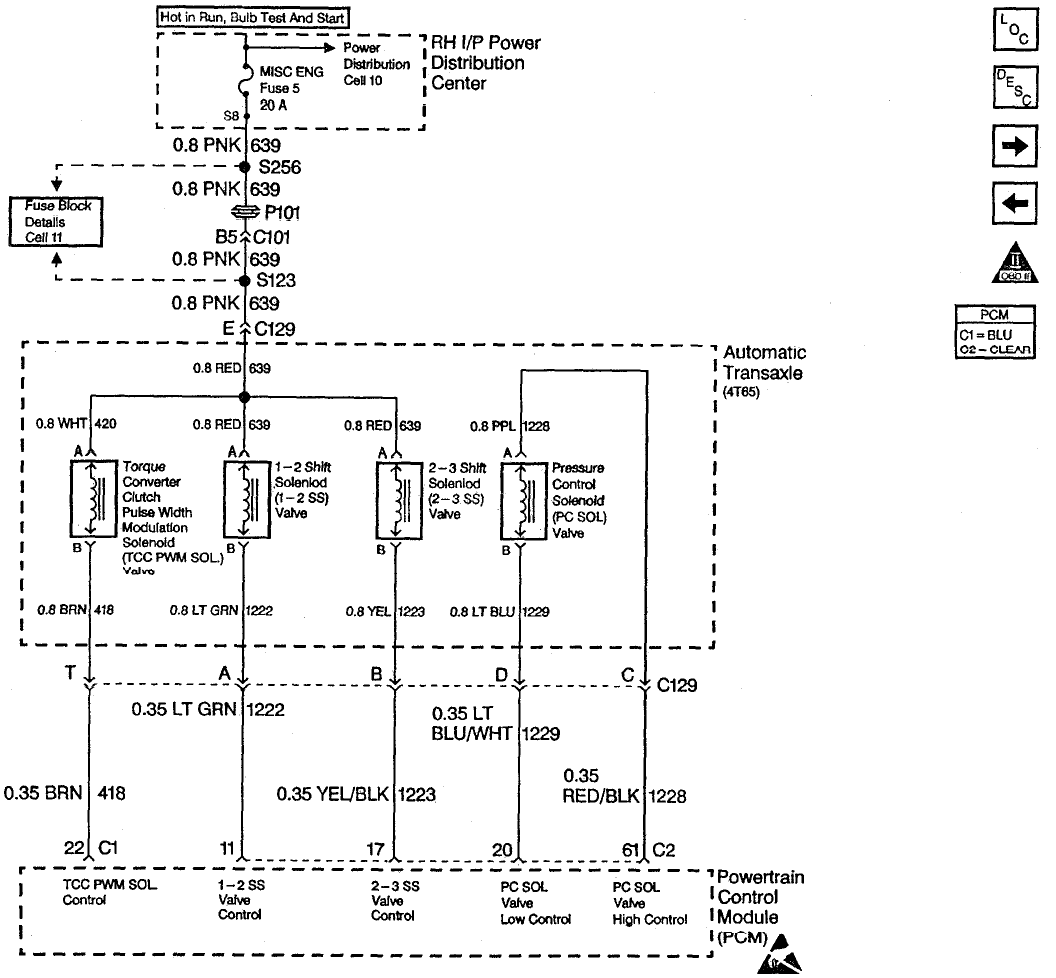

No, the wires from the plug in connector under the air intake tube goto the PCM.

This image is for my 97 Bonneville. Should be the same for yours.




If you need more schematics related to the trans or engine, lemme know. I have an Alldata subscription.
Attached Thumbnails
Transmission swap??-4t65_sol.gif
Mike is offline   Reply With Quote
Old 06-16-2014, 10:33 PM   #20
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2014
Posts: 33
Thanked 3 Times in 1 Post
nwohiochevyguy is on a distinguished road
Default

Thanks Mike!!!
nwohiochevyguy is offline   Reply With Quote
