rear end sway and vibration issues - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 12-02-2014, 08:44 AM   #11
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i thought you meant the rear control arms were done. i am thinking its that and or the sway bar bracket. probably have to get the bushings and you could have them changed by a shop.
jwfirebird is offline   Reply With Quote
Old 12-04-2014, 09:25 PM   #12
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

well the control arm bushings might be fun to find. i dont even list the control arms at work. art- does you're fsm have a part# i could cross?
eltatertoto is offline   Reply With Quote
Old 12-04-2014, 11:08 PM   #13
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

No part # in FSM but Rock Auto list them- rear LCA bushings as :
ACDELCO Part # 46G11089A More Info {#88877020} Advantage $10.72 ea.
Also Edit: They also list MEVOTECH Part # MK6580 (supreme)
& MEVOTECH Part # GK6580 Original Grade

Last edited by Soft Ride; 12-04-2014 at 11:17 PM. Reason: add 2 movotech
Soft Ride is online now   Reply With Quote
Old 12-06-2014, 08:36 PM   #14
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

thanks art. i actually found them at work... gotta order them from Delaware warehouse :/ i was hoping to take a look at them before i bought them. any idea on if they can be knocked out in a vice? im sure i could pound them back in with a dead blow... they dont look like they are pressed in with how thin the metal looks. this may be a dumb question. but do the springs need compressed? i dont wanna be the idiot who unbolts the control arm and has a spring fly across the room and kill someone, so i figured i would ask. lol
eltatertoto is offline   Reply With Quote
Old 12-06-2014, 10:45 PM   #15
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I have not done my LCA rear bushings but when they may need replacing, I have access to a 15 ton press, so anything else is questionable.
Ya you better have a spring compressor on there if you intend on removing the LCA.
You don't want to damage the LCA, so I would have the old ones pressed out and the new ones pressed in properly.
Any decent shop with a press should be able to do this for a nominal fee.
Soft Ride is online now   Reply With Quote
Old 12-07-2014, 09:30 AM   #16
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i think with this setup you would compress it and decompress it with a jack under the control arm, somewhere solid that isnt going to slip or let the jack fall sideways.
jwfirebird is offline   Reply With Quote
Old 12-07-2014, 02:01 PM   #17
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,580
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Jason finally had a second to dig back into the FSM...

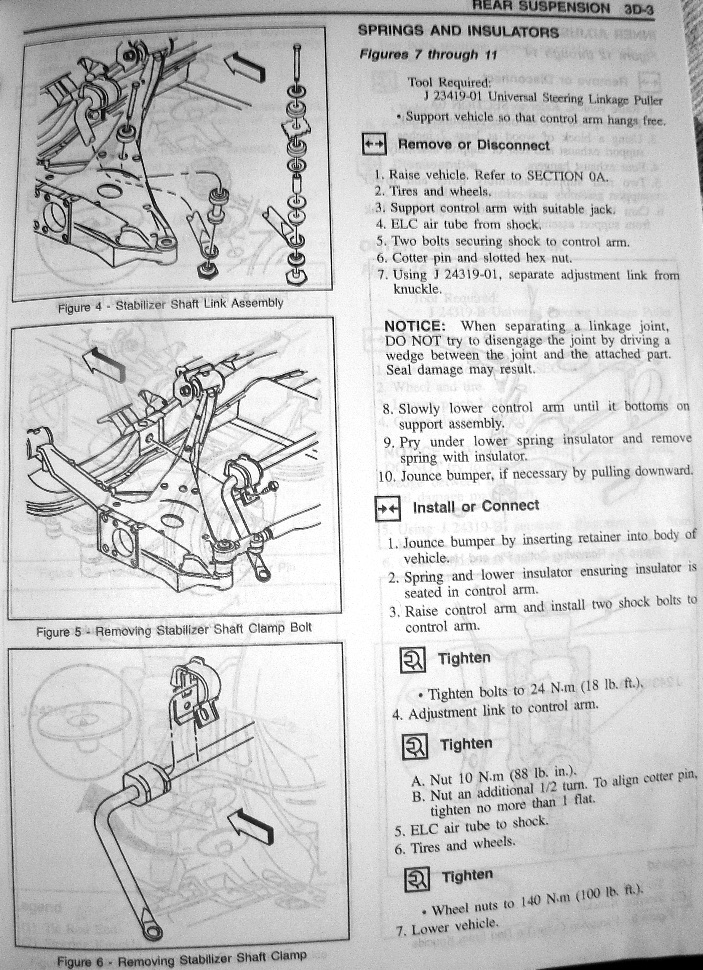

Here is the section on springs....

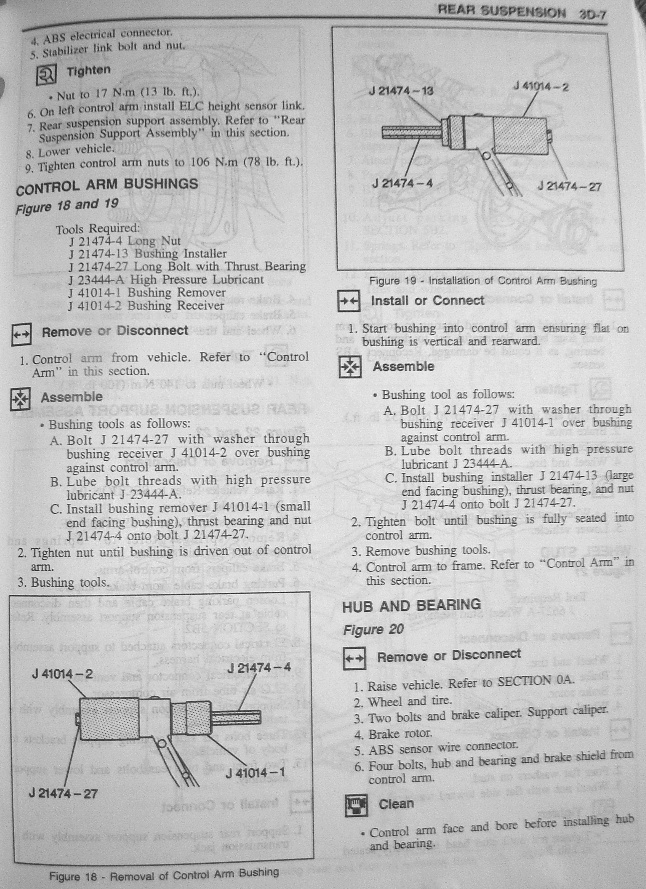

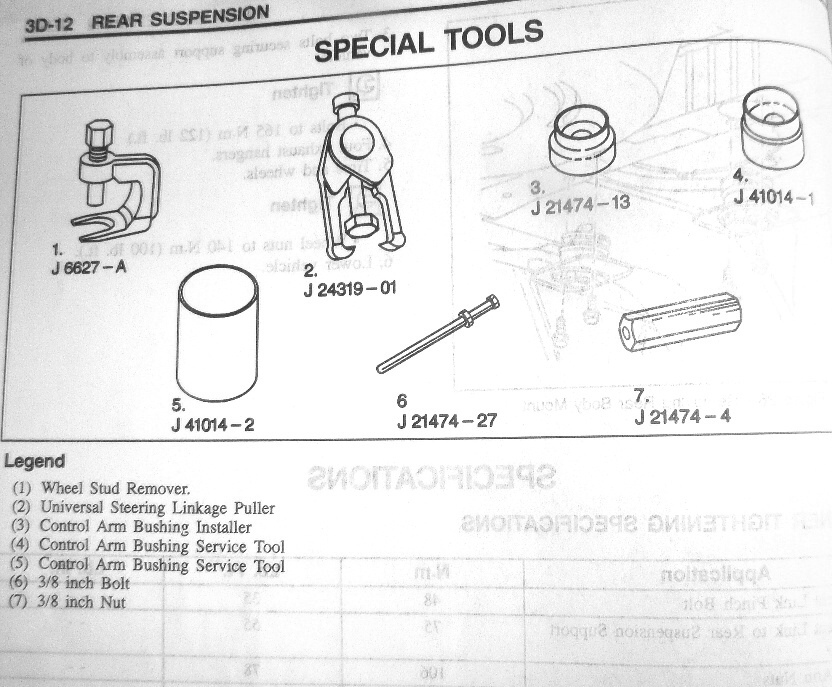

The LCA -FSM specialty press tools...

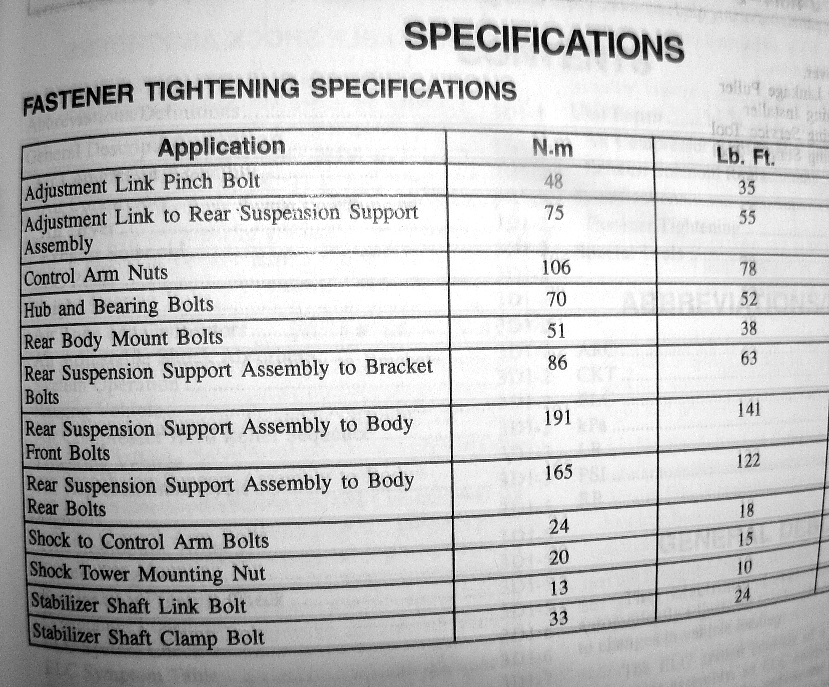

Fastener Torque specs:

Hope this helps.
Attached Thumbnails
rear end sway and vibration issues-pkaverearsuspension4_zpscc4d4da3.jpg   rear end sway and vibration issues-pkaverearsuspension1_zps62da6e37.jpg   rear end sway and vibration issues-pkaverearsuspension3_zps817840ec.jpg   rear end sway and vibration issues-pkaverearsuspension2_zps1ff3652a.jpg
Soft Ride is online now   Reply With Quote
The Following User Says Thank You to Soft Ride For This Useful Post:
WilliamE (12-07-2014)
Old 12-07-2014, 11:32 PM   #18
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

thanks alot for that info art, good to know i wont need a compressor, and that i wont die. lol. i really hope its just the bushings. going to replace those, the sway bar links and the body mounts back there (since i still have 2 from when i did the front, 2 of them weren't bad) if that fixes it all the car will need is a rack seal. and after the t-case seal i did on a jeep a few weeks ago, i am more than confident i can do that no problems at all. after all thats done, this car will effectively have an entirely new suspension. just redoing the front end, it feels as tight as the day it was new. atleast i know ill have the entire friggin suspension in warranty after this. LOL
eltatertoto is offline   Reply With Quote
