Default My "Baby'*" losing Her "Cool"

[I]I have a 2000 Buick Lesabre with the 3.8 V-6. The car has 10000 plus miles on the odometer. I suspect the AC system is low on Refrigerant for a variety of reasons.

Does any one know were and how to access the "low side of the system" to add refrigerant? I've followed the "Circuit" through the Engine compartment and all I see is the access the the "High side".

Am I missing something?? any help would be greatly appreciated.

revolver693
revolver693 is offline   Reply With Quote
Old 10-25-2012, 08:49 AM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Please tell us more about the A/C problem you are experiencing. Th actuator, typically located under the passenger side of the dash, is often a problem on your vehicle in reference to air being a different temperature from passenger to driver.

If you are going to self recharge the a/c, the disposable cans with hoses will only fit the proper connector, no need to worry about low side or high side.
GunsOfNavarone is offline   Reply With Quote
Old 10-25-2012, 09:09 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jul 2012
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
revolver693 is on a distinguished road
Default

Thanks your help is greatly appreciated

revolver
revolver693 is offline   Reply With Quote
Old 10-25-2012, 09:16 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jul 2012
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
revolver693 is on a distinguished road
Default

Oddly enough the Air temp. is O.K when driving. When at a stop light the temperature tends to climb. When driving again the temp will pull down. I'm assuming the the temperature should remain constant either driving or at Idle.

The Dash pad has a split in it from the summer heat in the south and will be replaced by next summer. I'm wondering if a heat load is entering the duct work some how. Any idea'*.

revolver
revolver693 is offline   Reply With Quote
Old 10-25-2012, 09:24 PM   #5
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

When driving, the engine temp and A/C temp should be close to normal. But when sitting, lack of airflow through the radiator and condenser allows the engine temp to rise and the a/c temp to rise also. This is typically normal. All because of lack of airflow.
Mike is offline   Reply With Quote
Old 10-25-2012, 09:24 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jul 2012
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
revolver693 is on a distinguished road
Default

The Car has straight cooling and Heating. There is no variable adjustments for this system. The suction line is "Ice Cold" all the way down to the compressor when the AC is on.

revolver

P.*. don't seem to get much "condensate" water when AC is on. Leads me to think the Evap. coil is not fully flooded with refrigerant.
revolver693 is offline   Reply With Quote
Old 10-26-2012, 01:05 AM   #7
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

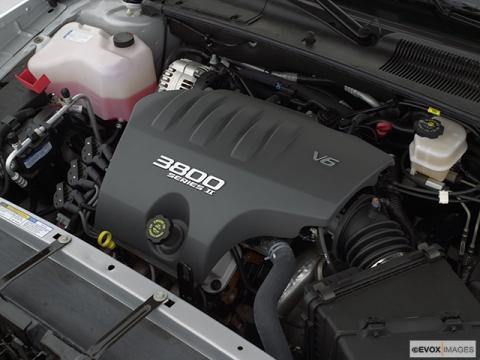

In answer to your question, on the line that runs up, next to the coils, then back down, there should be the high side, the expansion valve, and the low side.

High side is towards the front of the car, expansion valve is where the nut looking thing is in the middle, then the low side is on the other side of the expansion valve.

That was one thing I loved about that gen, they are both just right there. High side should be bigger, low side should be smaller.
Attached Thumbnails
My "Baby's" losing Her "Cool"-0186-050-engine-480.jpg
rjolly87 is online now   Reply With Quote
Old 08-15-2013, 02:21 PM   #8
Senior Member
Posts like a Supercharger

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

i have been taught to always enduce refridgerant on the high side with vehicle turned off
tsaw5500 is offline   Reply With Quote
Old 08-15-2013, 07:40 PM   #9
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

That may be true when loading refrigerant from a machine, but most home solutions have you adding on the low side with the system running.
rjolly87 is online now   Reply With Quote
Old 08-16-2013, 10:21 AM   #10
Senior Member
Posts like a Supercharger

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

makes sense because it needs the compressor to pump in the refridgerant from the can.
