Old 08-07-2016, 07:48 PM   #11
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

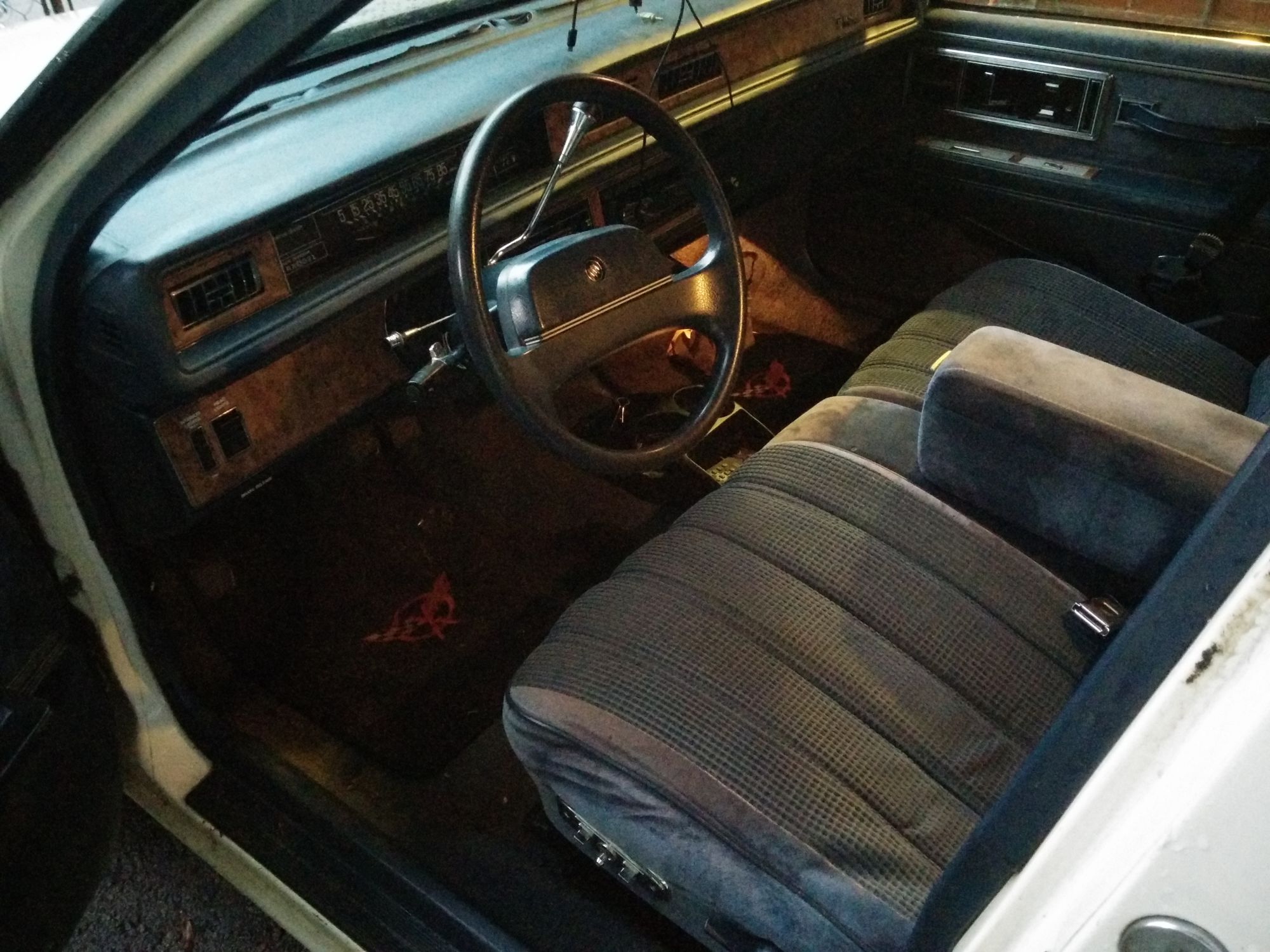

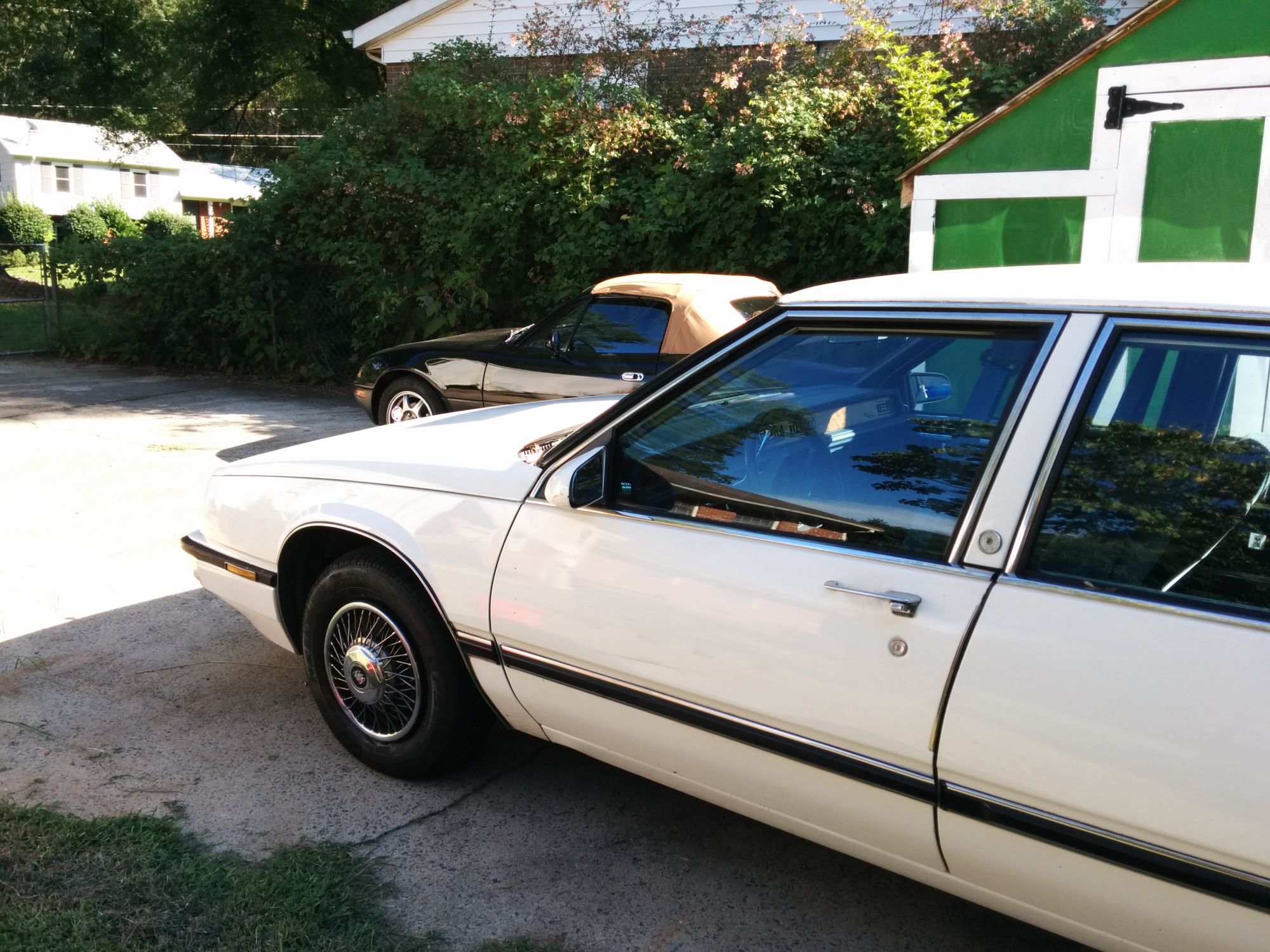

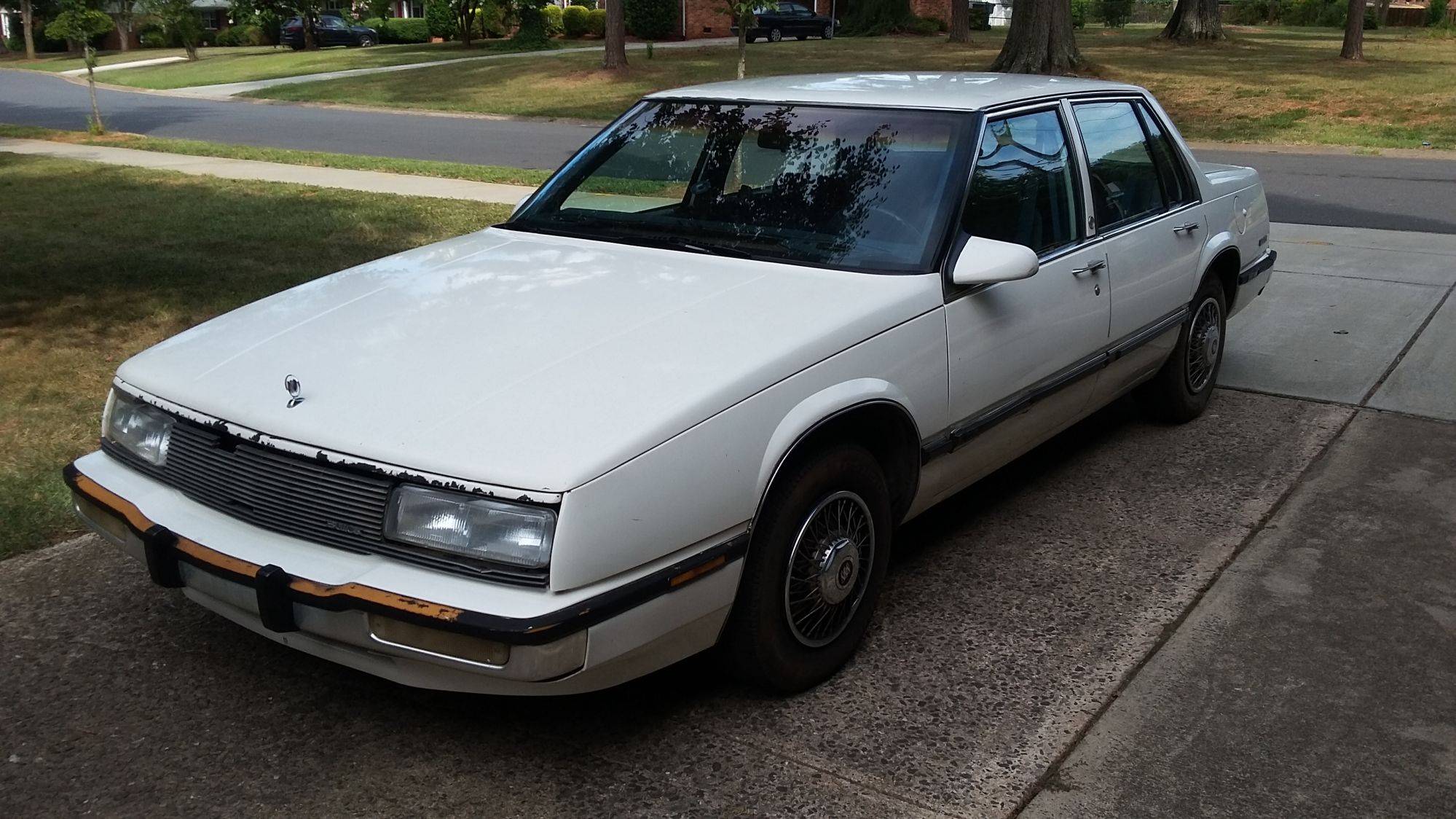

Just for fun, I thought you guys might like to have a look at the car. All in all it'* not in bad shape for being 25+ years old. Everything works except the speedo and the front windows (needs new window motors, that'* the next thing.) It'd be a great second car if I could just solve this little intermittent problem!





Attached Thumbnails
I have a '91 LeSabre that is driving me insane...-80-tjrjub8_6cfeb16addf5655fb1d73ad2f19116d3fcefc1fc.jpg   I have a '91 LeSabre that is driving me insane...-80-9utstxo_e2eb9d66fd8757216474715ae052b9bf65e10980.jpg   I have a '91 LeSabre that is driving me insane...-80-vg6kwas_ada18f294e43acb3957a5b54e4a66c2c303ffbf0.jpg
SineDeviance is offline   Reply With Quote
The Following User Says Thank You to SineDeviance For This Useful Post:
WilliamE (08-08-2016)
Old 08-07-2016, 07:56 PM   #12
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

Quote:
Originally Posted by rjolly87 View Post
This is a fairly comprehensive writeup on the whole swap:
http://padgett.performanceresearch.us//coils.htm
Thanks, I found it!

http://padgett.performanceresearch.us/coils.htm



Yep, I'm gonna try to do this in the next few days.
SineDeviance is offline   Reply With Quote
Old 08-07-2016, 08:22 PM   #13
Member
Posts like a V-Tak

Join Date: Oct 2010
Location: Georgia
Posts: 78
Thanked 15 Times in 14 Posts
joeld will become famous soon enough
Default

Here'* some info on checking cps, etc.

Joel

http://easyautodiagnostics.com/gm/3....-sensor-test-1
joeld is offline   Reply With Quote
The Following User Says Thank You to joeld For This Useful Post:
SineDeviance (08-07-2016)
Old 08-08-2016, 07:33 PM   #14
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

Okay, today I swapped the ignition to the Delco type, and it still misses. But I think I'm on the right track. The missing seems to happen faster now and it stutters more violently sooner. The engine also seems to stall between misses now when at WOT. So, ICM or coils?
SineDeviance is offline   Reply With Quote
Old 08-08-2016, 08:05 PM   #15
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,831
Thanked 287 Times in 237 Posts
rjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud of
Default

The swap should have involved the ICM and coils.

I would want to check to confirm the CPS is behaving as it should at this point.
rjolly87 is online now   Reply With Quote
The Following User Says Thank You to rjolly87 For This Useful Post:
SineDeviance (08-08-2016)
Old 08-08-2016, 08:06 PM   #16
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

I posted the last reply from my phone. I was in a hurry and didn't include all the information, so here goes. One upside with the Delco ignition is that the car (when running correctly) idles much smoother than it did with the old Magnavox ignition. The throttle seems to be moderately more responsive, and it seems to have more pickup. It definitely hesitates less when you floor it.

Let"* talk about the misfire problem. When the problem began to occur with the new ignition, it started to buck pretty bad right at the beginning when I gave it plenty of throttle. There may be an upside though, as this partial engine stall is totally new behavior. With the new ignition, it misses a few times plus it partially stalls in a somewhat rhythmic fashion. It will miss a few times, begin to stall, bounce back, miss a few more times, partially stall again, bounce back, and so on. So, it goes like this:


Interstate on-ramp > WOT > Engine RPMs begin to rise normally > miss > RPMs rise > miss > RPMs rise > partial stall for about a second > RPMs rise > miss > RPMs rise > miss > partial stall for about a second. It seems to repeat. All of this would be happening in maybe 5-10 seconds of WOT.

So, maybe this means I'm on the right track? Maybe it'* possible that the junkyard ICM or coils I got today have the same problem the old ignition was having?

To reiterate, with the old ignition at WOT it would just stutter and miss in a somewhat rhythmic fashion. The stuttering from the misfire would become more pronounced the longer the car is running, but the engine has never stalled when this problem was happening before.

And just like before, after sitting for an hour the car fired right up and ran perfectly on the return trip.

So, do you guys think it'*... bad Delco ICM? One or more bad coils? ICM connector plug, even? Or should I start looking at the fuel pump?
SineDeviance is offline   Reply With Quote
Old 08-08-2016, 08:12 PM   #17
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

Quote:
Originally Posted by rjolly87 View Post
The swap should have involved the ICM and coils.
Yes, I swapped the mounting plate, ICM, and coils. Mounting plate came from a '95 LeSabre 3800, the ICM and coils came from a newer 3800 (it does seem like they changed the plate design after '95, it was different on the '96 I looked at.)

It'* worth mentioning that I had to try two ICMs. On the first ICM, the engine would start but it ran really bad and knocked when throttle was applied. It sounded like a couple of cylinders weren't firing. Second ICM, car cranked right up and it runs smooth.

Quote:
Originally Posted by rjolly87 View Post
I would want to check to confirm the CPS is behaving as it should at this point.
But ... wouldn't the engine not be starting if that sensor was the problem?
SineDeviance is offline   Reply With Quote
Old 08-08-2016, 08:27 PM   #18
Member
Posts like a V-Tak

Join Date: Dec 2015
Posts: 40
Thanks: 0
Thanked 12 Times in 11 Posts
grandpabuick will become famous soon enough
Default

At one point you said that upon starting the engine rpm would rush to 2000 rpm. If you have a multi-meter a quick check of the tps would rule out that sensor.
grandpabuick is offline   Reply With Quote
The Following User Says Thank You to grandpabuick For This Useful Post:
SineDeviance (08-08-2016)
Old 08-08-2016, 09:00 PM   #19
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2016
Posts: 27
Thanked 2 Times in 2 Posts
SineDeviance is on a distinguished road
Default

Quote:
Originally Posted by grandpabuick View Post
At one point you said that upon starting the engine rpm would rush to 2000 rpm. If you have a multi-meter a quick check of the tps would rule out that sensor.
I do have one and I can, how do I check it exactly?

Just for reference, that high idle after start has only occurred four or five times out of maybe 75-100 times cranking up the car over the past couple of weeks. When it did happen, I turned the engine off and immediately started it again, then it would idle normally. I just assume it'* related, maybe not.
SineDeviance is offline   Reply With Quote
Old 08-08-2016, 09:17 PM   #20
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,831
Thanked 287 Times in 237 Posts
rjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud of
Default

I was thinking perhaps that there is an intermittent failure of the sensor, or associated wiring, however, admittedly that would be a failure never seen before. I would think that if this was the case however, you would likely show engine rpms drop to zero when the issue is popping up (especially during the 'stall), at least you would, if you had one.

It would also be good to check fuel pressure at this point too. The 'stall' could also be an indication of a fuel delivery issue, which would be apparent when you throw a gauge on it.

I am not sure how else to proceed at this point, because everything I can think to do next involves plugging a scanner in to the car and reading live data.
rjolly87 is online now   Reply With Quote
The Following User Says Thank You to rjolly87 For This Useful Post:
SineDeviance (08-08-2016)
