Default fuel gauge wierdness

Hello All,

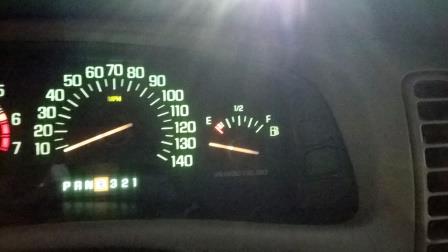

Today the fuel gauge stuck in this one spot and will not move. It was on full last night when I filled the fuel tank and working fine. What could it be? Thanks in advance! fuel gauge wierdness-fuel-gauge-small.jpg
Bretton65 is offline   Reply With Quote
Old 02-06-2015, 09:42 PM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Either the fuel gauge itself is messed up, or your sending unit is messed up. The best way is to have someone with diagnostic equipment "monitor" the data from the fuel tank. That'* English for, dealer puts the Tech 2 on it to watch the data.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
Bretton65 (02-06-2015)
Old 02-06-2015, 10:13 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 779 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Key on, engine not running, disconnect the harness to the fuel tank......gage should read full......if it does, it'* the sender...

You access the harness from the trunk, under an access plate, near the back seat(have to remove trim)....

Last edited by Tech II; 02-06-2015 at 10:15 PM.
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
Bretton65 (02-06-2015), WilliamE (02-07-2015)
Old 02-06-2015, 10:17 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2010
Posts: 66
Thanked 0 Times in 0 Posts
Bretton65 is on a distinguished road
Default A fix!

Thanks for the suggestions! Luckily it was a simple fix. The needle had spun all of the way around to the wrong side of the pin. I searched around the internet and found a fix for the gauge. I was amazed to find that a magnet can spin the needle around to the proper spot. I purchased some strong magnets and it worked! fuel gauge wierdness-magnet.jpg

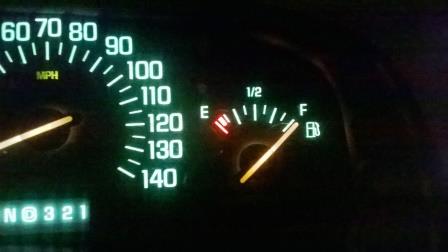

fuel gauge wierdness-fixed-gauge.jpg

Last edited by Bretton65; 02-06-2015 at 10:22 PM.
Bretton65 is offline   Reply With Quote
Old 02-07-2015, 08:54 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

interesting.
jwfirebird is offline   Reply With Quote
Old 02-07-2015, 10:51 AM   #6
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by jwfirebird View Post
interesting.
X2 interesting.
Mike is offline   Reply With Quote
Old 02-07-2015, 11:51 AM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 779 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

The only time I have ever seen that happen, is when the key is left in the "on" position(engine not running), and the battery is disconnected and then reconnected....
Tech II is offline   Reply With Quote
Old 02-07-2015, 01:36 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Dec 2010
Posts: 66
Thanked 0 Times in 0 Posts
Bretton65 is on a distinguished road
Default

Apparently it can also be caused by a low battery, or on some gm vehicles, for no obvious reason at all. . . In my case there was no change to the car overnight but, just to be safe, I am going to check the battery condition and the connections today.
