Default Different temperature in driver side

Hello everybody
today i turned on the air condition and i felt in my (driver) side warmer from the passenger side .
i think it'* the blend door , but , which one of them ?

Thanks
eb-86 is offline   Reply With Quote
Old 06-08-2014, 02:05 PM   #2
Senior Member
Posts like a 4 Banger

Join Date: May 2014
Posts: 110
Thanked 48 Times in 35 Posts
damadtech is a jewel in the roughdamadtech is a jewel in the roughdamadtech is a jewel in the rough
Default

If your system is like the Pontiac, which I assume it is, sounds more like you're low on freon. Classic Pontiac symptom when you need a bump on the servicing with or without the dual climate control.
damadtech is offline   Reply With Quote
The Following User Says Thank You to damadtech For This Useful Post:
WilliamE (06-08-2014)
Old 06-08-2014, 05:23 PM   #3
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

If you have dual zone climate control it could be the driver side blend door, but chances are Steve is right about it needing a freon charge. That'* where I would start.
2kg4u is offline   Reply With Quote
Old 06-09-2014, 06:53 PM   #4
Junior Member
Posts like a V-Tak

TieFighter's Avatar

Join Date: Jun 2014
Location: South Jersey
Posts: 27
Thanked 17 Times in 11 Posts
TieFighter will become famous soon enough
Default

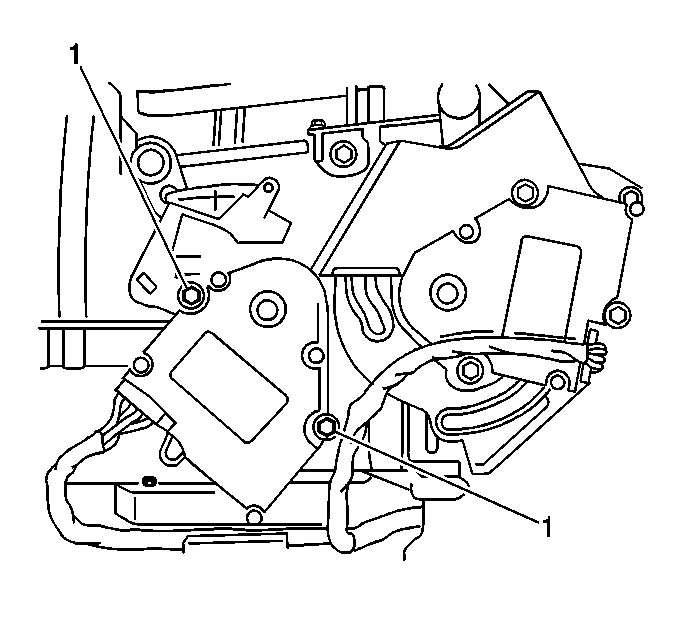

If you suspect the drivers temp actuator is bad this is how I would approach it. Using a TECH II is the easiest way, but if you do not have access to one gain access to the actuator. Look at the center of it there will be the drive motor. Turn you temp **** cold to hot and back and see if it moves back and forth. If it does not move remove the connector wait a few seconds and plug it back in. This will cause the actuator to perform a learn sweep. Maybe it is out of calibration. If it does not move still more then likely its a bad actuator.

Attached Thumbnails
Different temperature in driver side-292138.gif
TieFighter is offline   Reply With Quote
The Following 2 Users Say Thank You to TieFighter For This Useful Post:
Soft Ride (06-09-2014), WilliamE (06-10-2014)
Old 06-10-2014, 04:01 PM   #5
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

If you do change the driver side actuator, do yourself a favor and pull the driver seat when you work on it. Makes it a lot easier to lie on your back and work under there.
2kg4u is offline   Reply With Quote
The Following User Says Thank You to 2kg4u For This Useful Post:
TieFighter (06-10-2014)
Old 06-10-2014, 04:05 PM   #6
Junior Member
Posts like a V-Tak

TieFighter's Avatar

Join Date: Jun 2014
Location: South Jersey
Posts: 27
Thanked 17 Times in 11 Posts
TieFighter will become famous soon enough
Default

Quote:
Originally Posted by 2kg4u View Post
If you do change the driver side actuator, do yourself a favor and pull the driver seat when you work on it. Makes it a lot easier to lie on your back and work under there.
laying on you back while working up under the dash just sucks!! I would take out the seat too.
TieFighter is offline   Reply With Quote
Old 06-11-2014, 01:33 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2014
Posts: 163
Thanked 6 Times in 5 Posts
eb-86 is on a distinguished road
Default

I forgot to mention that sometimes after driving is more colder than i start the car
eb-86 is offline   Reply With Quote
Old 06-11-2014, 11:56 PM   #8
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,146
Thanked 781 Times in 610 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

You guys have to learn to be contortionists, if you want to work on cars. That'll be the day I pull a heavy motorized seat of a customer'* car, risking scratching the interior to get to 2-5.5 mm screws....
Tech II is offline   Reply With Quote
Old 06-12-2014, 09:33 AM   #9
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by Tech II View Post
You guys have to learn to be contortionists, if you want to work on cars. That'll be the day I pull a heavy motorized seat of a customer'* car, risking scratching the interior to get to 2-5.5 mm screws....

I'm old. I don't bend like I used to.
2kg4u is offline   Reply With Quote
Old 06-12-2014, 09:35 AM   #10
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

And by the way, those screws are an odd size. You need a 5.5 mm socket.
