Default 96 Buick Regal

Trying to locate tranaaxle bolt I heard it was kind of hard to find.
Pulling engin
whitnhemdric is offline   Reply With Quote
Old 04-08-2014, 10:02 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,149
Thanked 784 Times in 613 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I assume you are talking about the bolt that you access through the passenger side wheel well and is located between the tranny and the rear of the engine block.....you will need a long extension and 18mm swivel socket to easily access it....
Tech II is offline   Reply With Quote
Old 04-08-2014, 10:08 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I never needed a swivel socket.

As many times as I have removed that bolt, I find that many "short" extensions work better than 1 long one.

As long as the power steering pump and oil pressure sensor is removed, you have a straight shot to that bolt which is center of this picture...

Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
WilliamE (04-08-2014)
Old 04-09-2014, 01:24 AM   #4
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
whitnhemdric is on a distinguished road
Default

yes we are pulling the engin and it is as my fatherinlaw described hard to locate trans axel bolt and hard to access
thank you
whitnhemdric is offline   Reply With Quote
Old 04-09-2014, 07:32 AM   #5
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

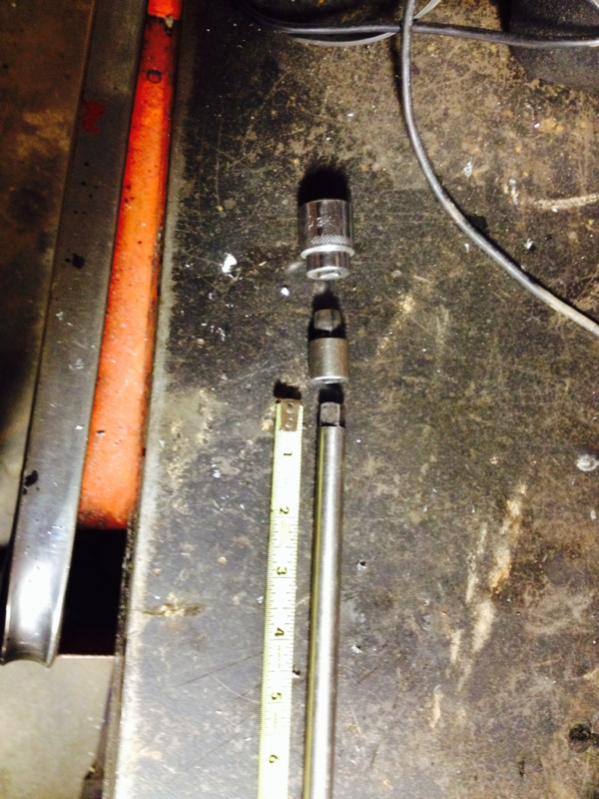

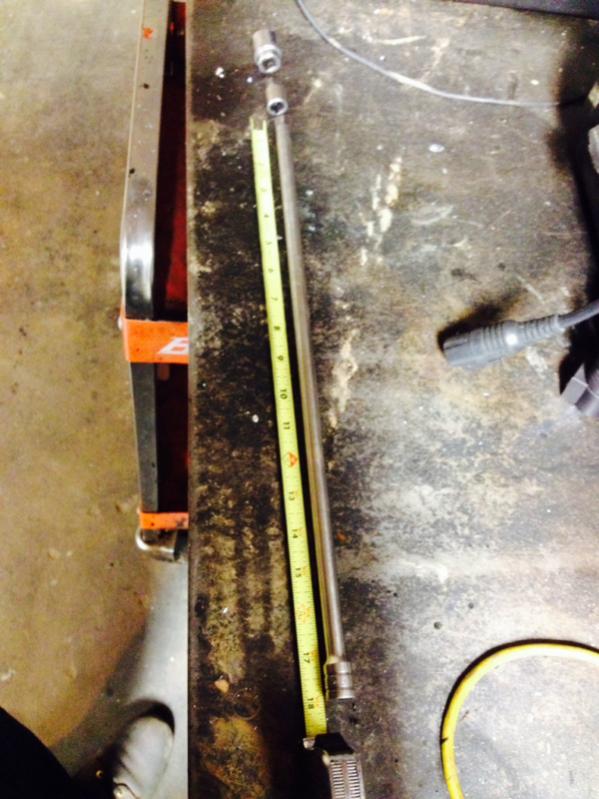

This what I use for that bolt 18in extension, 1in swivel extension and a 18mm short socket. Works without fail every time.


96 Buick Regal-image-3835568591.jpg



96 Buick Regal-image-3587457375.jpg
75 racer is offline   Reply With Quote
Old 04-18-2014, 07:45 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
whitnhemdric is on a distinguished road
Default

Still can't get the Engine separated from Tranny what am I missing
Regal 3800 1996
whitnhemdric is offline   Reply With Quote
Old 04-18-2014, 09:53 PM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,149
Thanked 784 Times in 613 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

OK, I assume you have removed the bolts from the flexplate/converter and the converter is free of the flexplate?....

Then there is the "hidden bolt" you remove from the passenger side......

Then there are the bolts(3) and stud/bolts(2) from the driver'* side...

If these have all been removed, the two should separate.....
Tech II is offline   Reply With Quote
Old 04-18-2014, 11:31 PM   #8
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

And the bracket that supports the passenger end of the transmission to the block.
