Unhappy 2005 Buick Century Leaking behind motor mount

I have a 2005 Buick Century 3100 SFI and it is leaking coolant from the top driver side Engine Mount. It looks like it is coming from the bottom most bolt (there are 3), that holds the mount to the block. I can see the coolant between the mount and the block. It runs down the front of the engine from the mount. This seems to be below the lower gasket which is dry. Is there a freeze plug in between there? Could it be leaking out of the bolt holes? I thought it was the intake manifold gasket and just got a great quote on fixing it, but after another look and some research it seems to be leaking from below the lower gasket for the intake. Engine starts and runs great with no loss of power. Any feed back would be greatly appreciated!!!!!

Last edited by HitShane; 08-10-2015 at 03:24 PM.
HitShane is offline   Reply With Quote
Old 08-10-2015, 04:49 PM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,590
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Sometimes it is difficult to pinpoint the real location.
Get engine all clean with a quick power wash, and use a rad pressure tester.
Pumping it up to 16 psi may help to find the exact leak area better.
Soft Ride is offline   Reply With Quote
Old 08-10-2015, 05:26 PM   #3
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Saint Petersburg, FL
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
HitShane is on a distinguished road
Default

Quote:
Originally Posted by Soft Ride View Post
Sometimes it is difficult to pinpoint the real location.
Get engine all clean with a quick power wash, and use a rad pressure tester.
Pumping it up to 16 psi may help to find the exact leak area better.

It is in between the motor mount and the engine block. I can top off water and start the engine to reproduce the problem. Looks like out of the mount bolt from the side of the block. Is there a freeze plug there? I can't getter a better look without removing the engine mount itself. Could it be leaking from the actual bolt some how.

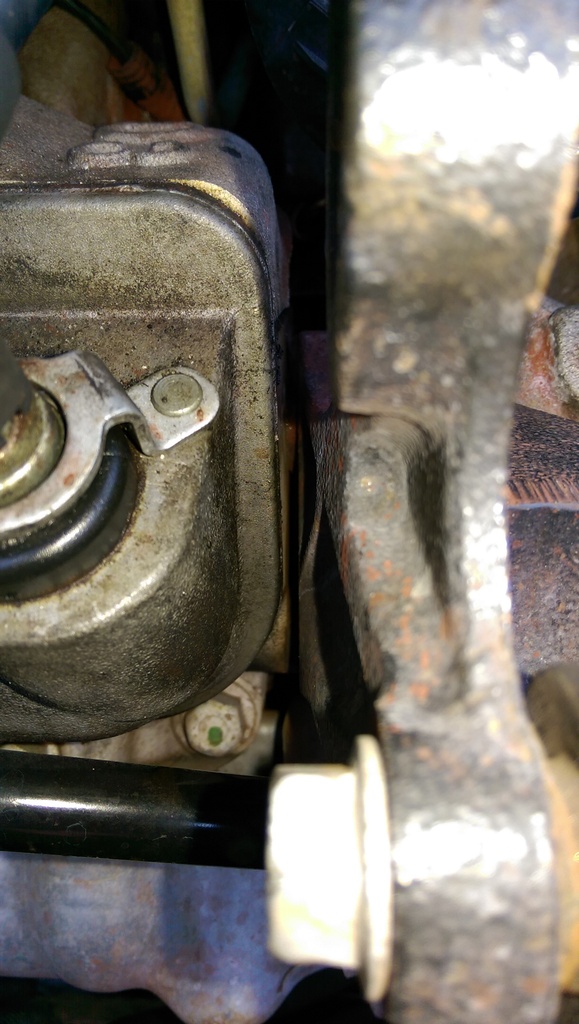

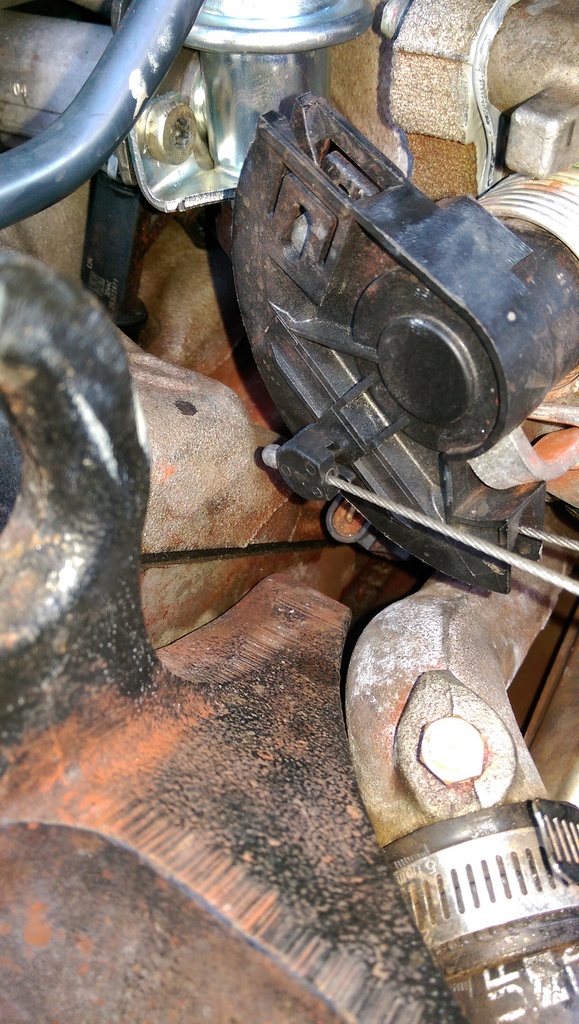

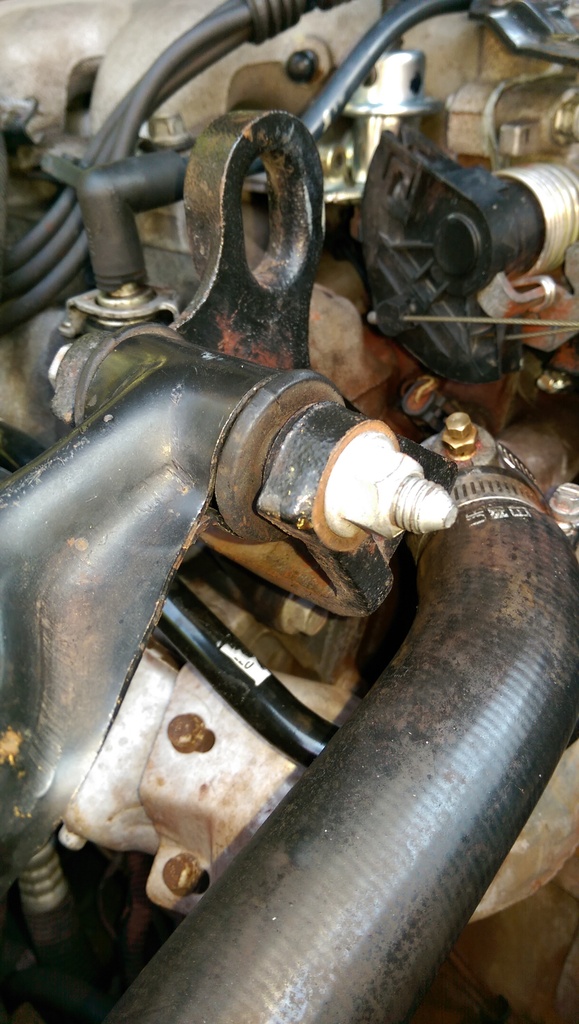

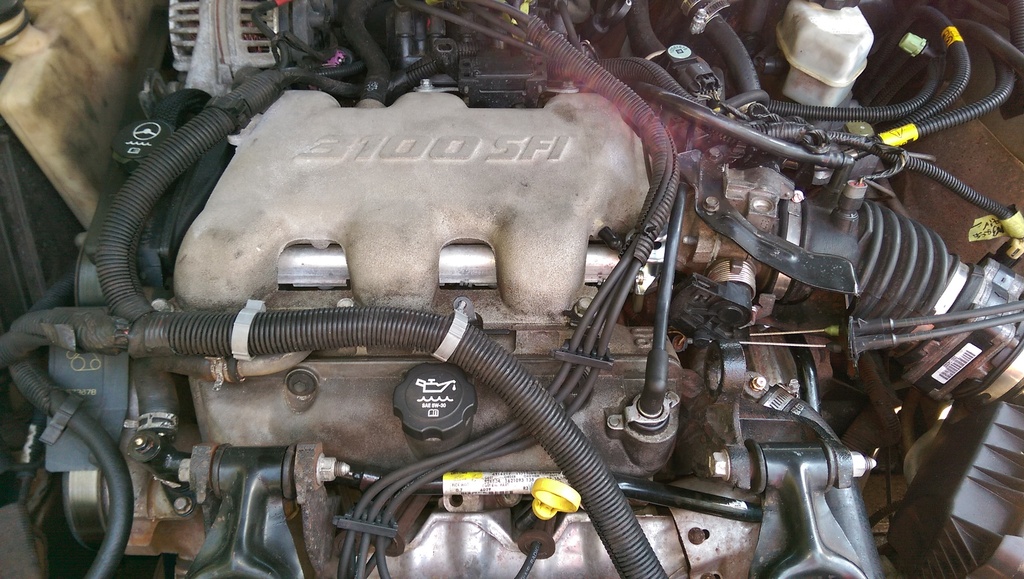

It'* coming out where the bottom mount bolt is seen going into the block or right above it, but behind the mount plate. Here are some more angles...














Attached Thumbnails
2005 Buick Century Leaking behind motor mount-imag0255_zpskrqzryf1.jpg   2005 Buick Century Leaking behind motor mount-imag0256_zpsta9kphbi.jpg   2005 Buick Century Leaking behind motor mount-imag0251_zps6xaslgbj.jpg   2005 Buick Century Leaking behind motor mount-imag0252_zpsf2zgghwr.jpg   2005 Buick Century Leaking behind motor mount-imag0253_zpshdvodgaf.jpg


Last edited by HitShane; 08-10-2015 at 05:31 PM.
HitShane is offline   Reply With Quote
Old 08-10-2015, 05:36 PM   #4
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Saint Petersburg, FL
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
HitShane is on a distinguished road
Default

Quote:
Originally Posted by Soft Ride View Post
Sometimes it is difficult to pinpoint the real location.
Get engine all clean with a quick power wash, and use a rad pressure tester.
Pumping it up to 16 psi may help to find the exact leak area better.


Here it won't let me edit the first reply...
Attached Thumbnails
2005 Buick Century Leaking behind motor mount-imag0251_zpso7xtrp3r.jpg
HitShane is offline   Reply With Quote
Old 08-11-2015, 09:59 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Sure it'* not the lower intake? Possible head gasket?

When not sure of the origin, I like to use a coolant dye and black light to follow the trace of the fluid....
Tech II is offline   Reply With Quote
Old 08-13-2015, 08:39 PM   #6
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Saint Petersburg, FL
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
HitShane is on a distinguished road
Default


Last edited by HitShane; 08-13-2015 at 08:40 PM.
HitShane is offline   Reply With Quote
Old 08-15-2015, 04:58 AM   #7
Senior Member
Posts like a Supercharger

Join Date: Jul 2015
Location: Chico, California (USA)
Posts: 158
Thanked 20 Times in 18 Posts
1.8TTony will become famous soon enough1.8TTony will become famous soon enough
Default

Yes, there is a freeze plug behind that motor mount bracket. To fix this problem, you will need to remove the air intake tube then remove the throttle body then remove the thermostat housing then remove the motor mount bracket then remove the freeze plug.

I just did this job last week. Anybody can do it with a few simple wrenches and a screwdriver. I installed a steel freeze plug......I think it cost all of 25 cents wholesale bulk......auto parts store probably sells the same plug for a buck. Brass freeze plugs are an option, but I would advise against it. Adding brass to the aluminum cylinder head is not good for the engine as it could promote electrolysis corrosion between the different metals. Brass and iron is ok, but brass and aluminum is a no-no.
1.8TTony is offline   Reply With Quote
Old 08-15-2015, 10:50 AM   #8
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

A lot of work for a simple "freeze" plug. Actually that is a misnomer, the plug is actually a casting clean out plug but somewhere along the line someone thought they were freeze plugs and started calling them such. If you have to take the throttle body off might as well remove the sensors and give it a good cleaning. Since you have to take the thermostat housing off, you might as well get a new thermostat and gasket and replace it for preventive maintenance.
Kimberly is offline   Reply With Quote
Old 08-15-2015, 11:05 AM   #9
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

Yes your correct the holes are there to get the sand out after casting them so a lot call them core plugs.
The freeze plug name came after some got lucky with water only in the block and when the water froze solid they popped out the core plugs saving the block at times.
So a lot of people got the idea they were made to do that by the manufacturer
REGAL GUY is offline   Reply With Quote
Old 08-15-2015, 02:31 PM   #10
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Saint Petersburg, FL
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
HitShane is on a distinguished road
Default

Quote:
Originally Posted by 1.8TTony View Post
Yes, there is a freeze plug behind that motor mount bracket. To fix this problem, you will need to remove the air intake tube then remove the throttle body then remove the thermostat housing then remove the motor mount bracket then remove the freeze plug.

I just did this job last week. Anybody can do it with a few simple wrenches and a screwdriver. I installed a steel freeze plug......I think it cost all of 25 cents wholesale bulk......auto parts store probably sells the same plug for a buck. Brass freeze plugs are an option, but I would advise against it. Adding brass to the aluminum cylinder head is not good for the engine as it could promote electrolysis corrosion between the different metals. Brass and iron is ok, but brass and aluminum is a no-no.
One of the mount bolts is well behind the exhaust shroud. How would I go about removing this bolt?
HitShane is offline   Reply With Quote
