Default 2000 regal ls, adding heated seats

I just picked up all new (used but great shape) seats for my girls regal today. Current setup is power driver, manual passenger, no heat. The new seats are dual power and heated. I cut the sores long and left both sides of the plug so I could add on and extend where I need to. I'm no novice when it comes to doing the wiring, I just need a pinout to know what goes to what without going back to the junk yard and tearing everything apart and tracing it myself. I need the pinout for the harness under the seat and also the plug for the switches. I'm pretty sure at the seat, the orange is constant and the black is ground, but there is a pink with black stripe and a blue with black stripe. I don't have the switch with me at the moment, but there were more than just those 2 at the switch. Thanks for any help that can be provided.
LilTeddyP is offline   Reply With Quote
Old 02-22-2016, 11:32 PM   #2
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanked 0 Times in 0 Posts
LilTeddyP is on a distinguished road
Default

At the switch there is blue, pink, black, gray, brown. I know the pink and blue go to the seats, the black I'm assuming is ground. My thoughts are brown is ignition accessory and gray is illumination. I would just like more info before doing all that and potentially messing something up
LilTeddyP is offline   Reply With Quote
Old 02-23-2016, 07:27 PM   #3
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

Actual the most easy way would be to get a main body wiring harness out of a Regal with heated seats.
The car is wired for it even with fuses in place already in the PS fuse box.
If the car has Monsoon you will need a harness with Monsoon as they are different.
A car with heated seats will have the plug for the power passenger seat at the same time even if the car did not have a power passenger seat.
REGAL GUY is offline   Reply With Quote
Old 02-23-2016, 07:30 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanked 0 Times in 0 Posts
LilTeddyP is on a distinguished road
Default

Quote:
Originally Posted by REGAL GUY View Post
Actual the most easy way would be to get a main body wiring harness out of a Regal with heated seats.
The car is wired for it even with fuses in place already in the PS fuse box.
If the car has Monsoon you will need a harness with Monsoon as they are different.
A car with heated seats will have the plug for the power passenger seat at the same time even if the car did not have a power passenger seat.
The easiest way if for me to rewire it with what I have vs going back to the junk yard and taking out the console and the carpet to get all the wire. That'* just not necessary when I CAN hook up the wires I have, just need more clarification to what goes to what
LilTeddyP is offline   Reply With Quote
Old 02-23-2016, 08:15 PM   #5
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

The factory has HI & LO settings on the seats so did you plan to use the factory heated seat switches? or other?
REGAL GUY is offline   Reply With Quote
Old 02-23-2016, 09:18 PM   #6
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanked 0 Times in 0 Posts
LilTeddyP is on a distinguished road
Default

Quote:
Originally Posted by REGAL GUY View Post
The factory has HI & LO settings on the seats so did you plan to use the factory heated seat switches? or other?
I pulled the oe switch panel and kept the pigtails
LilTeddyP is offline   Reply With Quote
Old 02-24-2016, 12:08 AM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

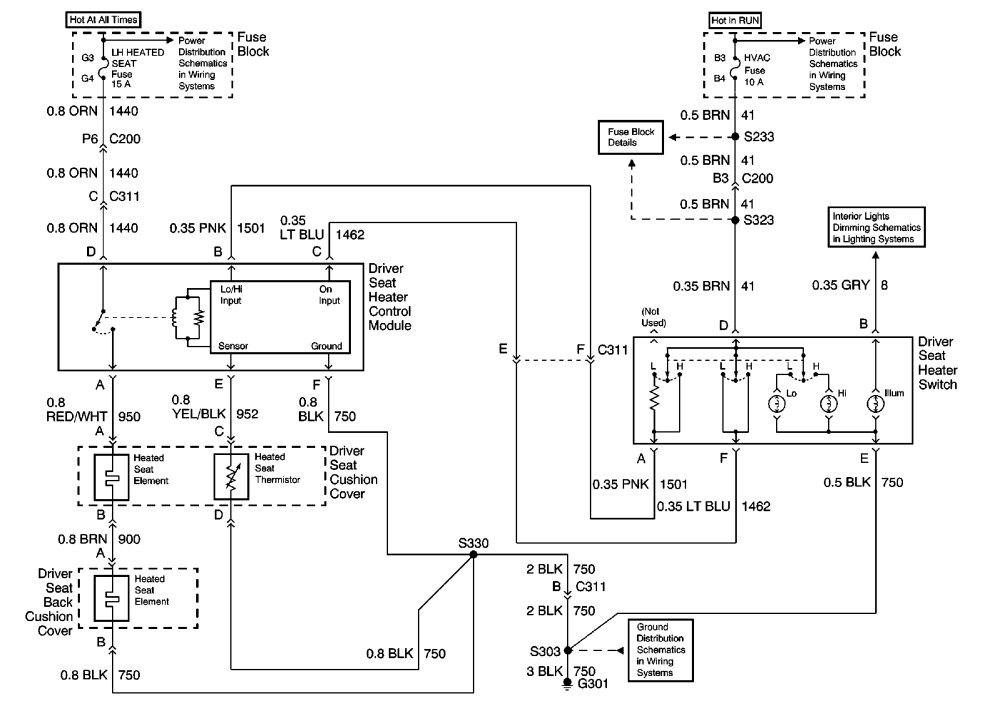

Driver'* side.....

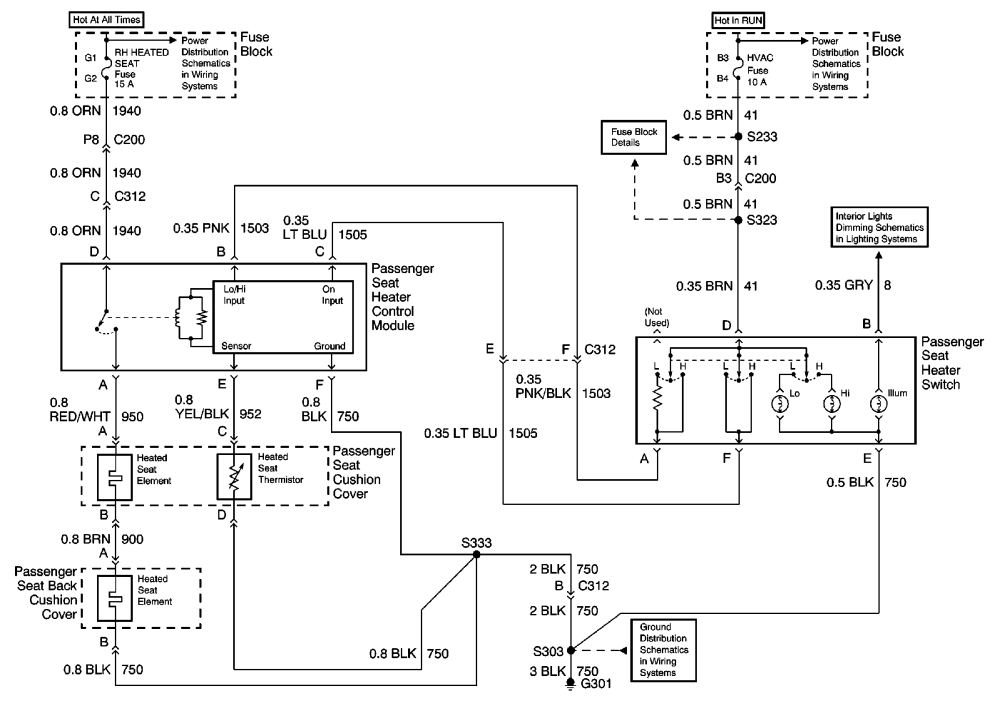

Passenger......

Attached Thumbnails
2000 regal ls, adding heated seats-0996b43f802438e5.gif   2000 regal ls, adding heated seats-0996b43f802438e6.gif
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
LilTeddyP (02-24-2016), WilliamE (02-24-2016)
Old 02-24-2016, 12:12 AM   #8
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanked 0 Times in 0 Posts
LilTeddyP is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Driver'* side.....



Passenger......

Exactly what I needed. Thank you much!
