2000 Park Ave steering gear boot - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 10-15-2014, 09:51 PM   #1
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default 2000 Park Ave steering gear boot

The boot on the rack and pinion unit on my 2000 Park Ave has become severely distorted. It seems to drive fine but the boot on the passenger side does not compress and expand like an accordion any more. It sort of wads up in a knot .I suspect it will rip itself apart very soon. I checked the FSM and they make it sound like to replace the boot you have to remove the rack from the vehicle. Does anyone have any experience with this repair? Hoping there is a way to fix it without tearing half of the car apart.
ssei98 is offline   Reply With Quote
Old 10-15-2014, 10:05 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Is equalizing line(connects both boots) ok? Never seen that happen......

you have to break the band on the boot on the end of the rack, and remove the friction clamp from the other end of the boot........loosen the locking nut from the outer tie rod....remove the nut from the outer tie rod/knuckle......separate outer tie rod from knuckle.....count the number of rotations it takes to remove the outer tie rod from the inner.....remove the locking nut from the inner tie rod.......remove boot.....
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
Soft Ride (10-18-2014), WilliamE (10-16-2014)
Old 10-15-2014, 10:10 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

Are you indicating that you have done this on the vehicle? It looks to me like it could be done but, the FSM says to remove the entire rack to replace the boot.
ssei98 is offline   Reply With Quote
Old 10-15-2014, 10:52 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

equalizing line??? Good question. It makes sense that the problem was caused by suction. I can see how air that was in the expanded boot would have to go somewhere when it gets compressed and I can see how that would cause the boot to collapse. I will check into that.
ssei98 is offline   Reply With Quote
Old 10-15-2014, 11:03 PM   #5
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

yes it can be done on the car loosen the outer tie rod end nut just a haft turn pop outer tie rod end out a gear puller will pop it out with out messing up the rubber
careful count exact how many times you unscrew it so you don't affect the alignment
brake the bands with long cutters or long needle nose
pull old boot off
some big 1/4 wide black zip ties can be used to hold the new one on from
Lowes
REGAL GUY is offline   Reply With Quote
The Following User Says Thank You to REGAL GUY For This Useful Post:
WilliamE (10-16-2014)
Old 10-16-2014, 12:40 PM   #6
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Strong zip ties do work pretty well, I had a band slip off somehow, so I just cut the band and removed it, then zip tied the boot back on, has held well for a while now.
WilliamE is offline   Reply With Quote
Old 10-16-2014, 09:54 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

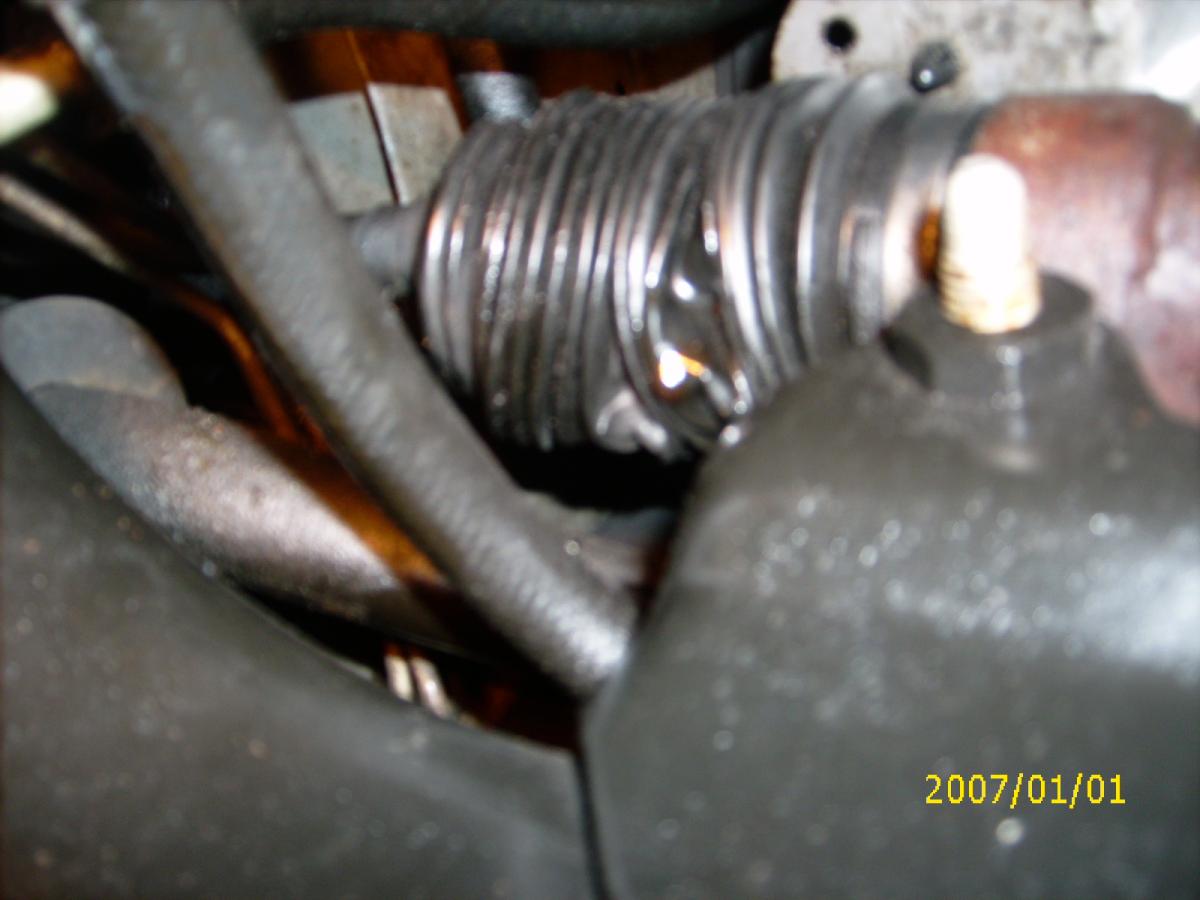

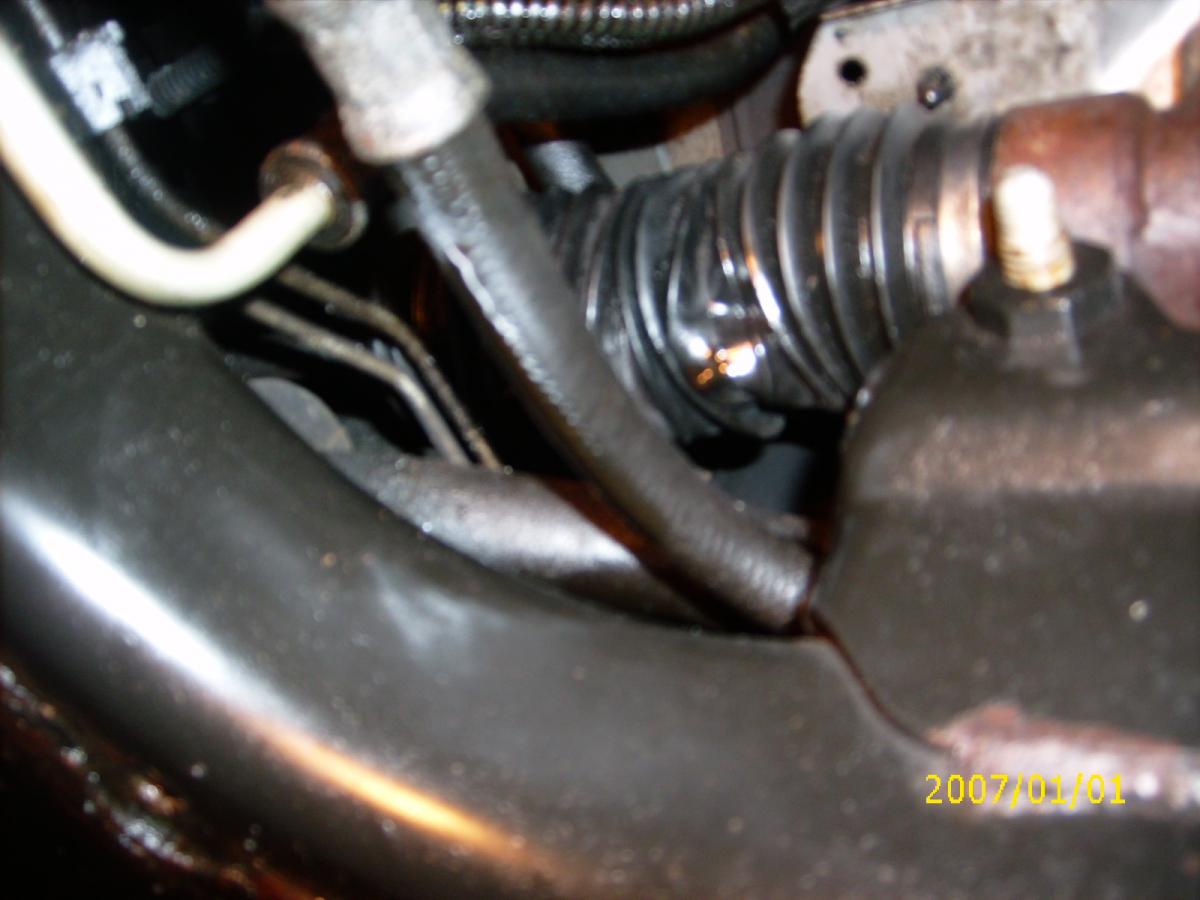

I looked for a transfer between the boots and could not see one.. Attached are pics of the boot in center, right turn, and left turn positions. I drilled a tiny hole in the affected part of the boot to see if maybe it was full of oil. A couple drops came out but nothing major. I am thinking about taking the tie rod end off, swapping the boot with an aftermarket boot that comes with zip ties and see what happens. Seems to me like something caused it to go bad and if I don't find the cause it will likely just happen again.. Any help is appreciated.
Attached Thumbnails
2000 Park Ave steering gear boot-dsci0053.jpg   2000 Park Ave steering gear boot-dsci0054.jpg   2000 Park Ave steering gear boot-dsci0055.jpg
ssei98 is offline   Reply With Quote
Old 10-17-2014, 09:58 AM   #8
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

not knowing what zip ties comes with the new boot I would still get a few of the 1/4
black long ones from lows like a foot long there is not much room to get at the boot
{at lease on some cars I have worked on} if you have good access great
so I found the long ones can be snaked around the rack and pulled real tight with foot long needle nose then cut off with a razor blade same way or long knife
hope this helps
REGAL GUY is offline   Reply With Quote
Old 10-17-2014, 06:55 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

Thanks, I found some replacement boots at Rock Auto and Advance Auto. I think I will give it a try. If I get lucky and replacing the boot is all I need to do then great! If that doesn't work I will have to figure out how too remove the entire rack and pinion and replace the whole thing.
ssei98 is offline   Reply With Quote
Old 10-18-2014, 01:58 AM   #10
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Let us know how it goes.
WilliamE is offline   Reply With Quote
