Ok Help! The wiring harness in front of the plenum has a groundwire on the left side which comes off near the Map sensor plug and fuel injector. Where does it go? I totally forget...lol

Let me know...Thanks!
kanecats is offline   Reply With Quote
Old 05-06-2012, 07:47 PM   #12
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Does it have a round grommet, about 5/8 in size? If so, this will connect to one of the ICM bracket bolts. One of those bolts should have an extra nut on it. If not, then remove the bolt, insert it through the grommet and then into the cylinder head and tighten.
Mike is offline   Reply With Quote
Old 05-06-2012, 08:43 PM   #13
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Yup, if it is like Mike described then that is the ground that goes to the bolt that is right under the ICM.

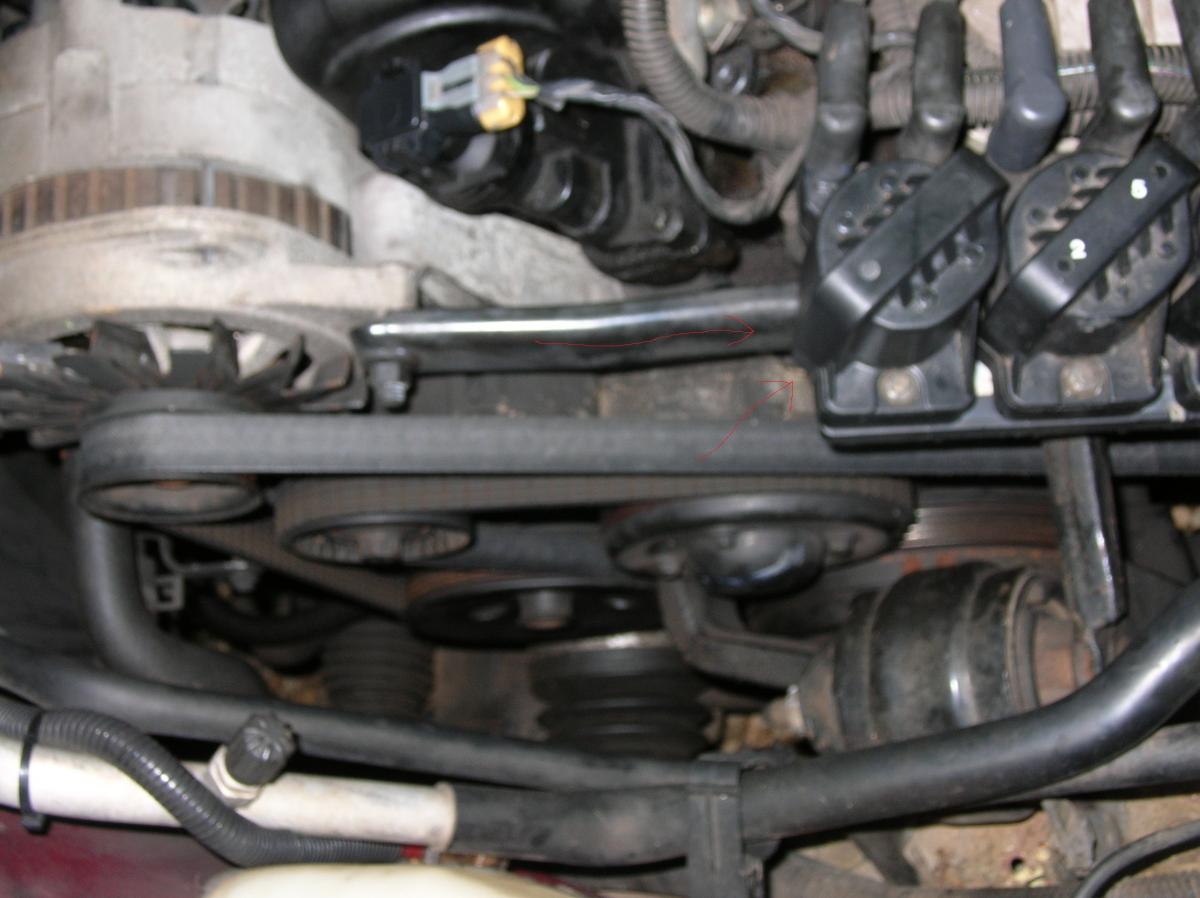

Here is a pic of right where the area is, sorry it is a bit blurry, and you cannot see the actual bolt, but it is right up under the ICM.
Attached Thumbnails
02 Park Ave Torque Sequence of U/L Intakes-dscn5347.jpg
WilliamE is offline   Reply With Quote
Old 05-06-2012, 08:51 PM   #14
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

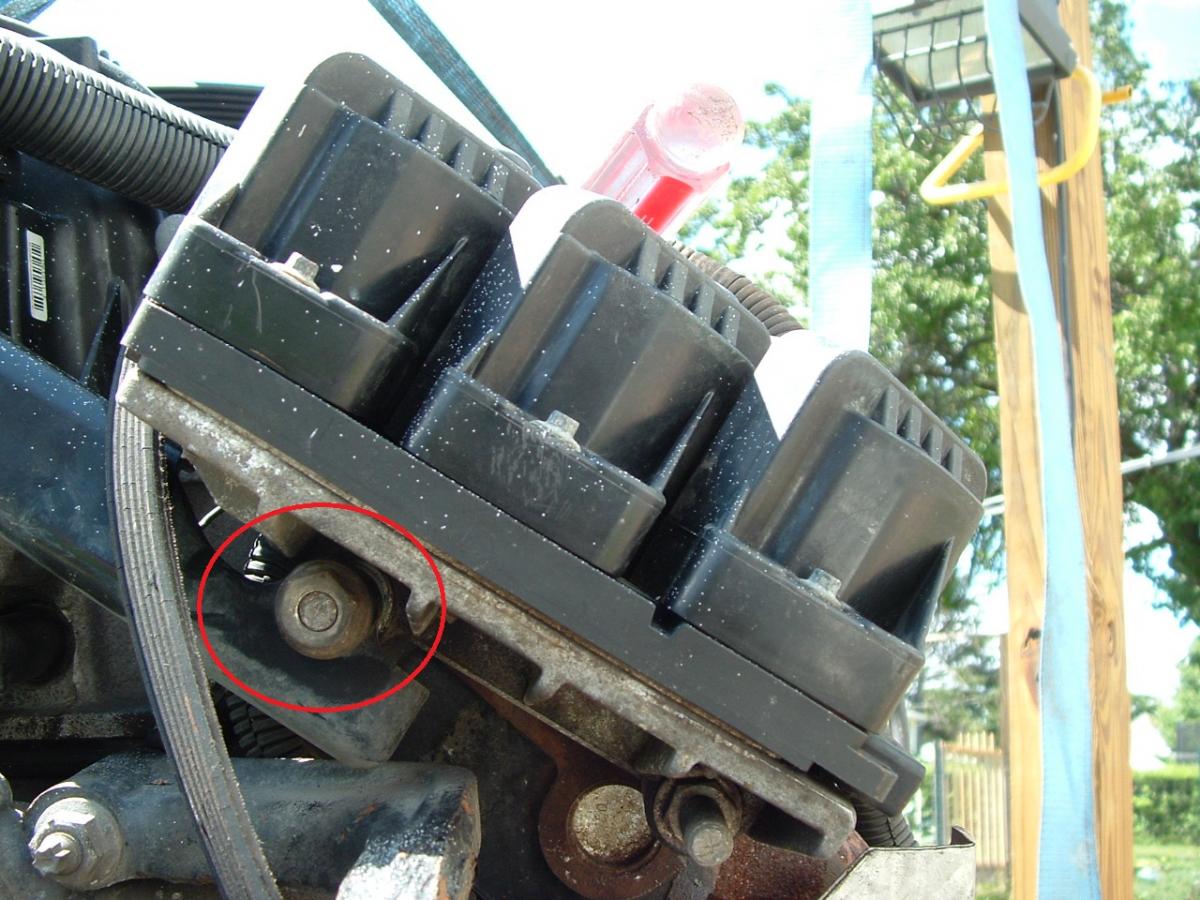

Here'* a better shot... circled in red is the bolt the grommet needs to go on....

Attached Thumbnails
02 Park Ave Torque Sequence of U/L Intakes-coilpack2.jpg
Mike is offline   Reply With Quote
Old 05-06-2012, 11:15 PM   #15
Member
Posts like a V-Tak
Thread Starter

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

Yep that'* it! It has the grommet. Thank you...I couldn't remember even disconnecting it...lol

Fuel injector/fuel regulator and alternator to go, along with the wiring harness and throttle body linkage and I should be all set. I plan to do a thorough flush of the engine and also change the oil filter/oil. I need to fish for a 15mm socket and small screw driver that fell victim to my clumsiness I am having a hell of a time finding them so fingers crossed when it is jacked up I will have more success! Thank you for your speedy replies...I hope to finish up tomorrow nite!
kanecats is offline   Reply With Quote
Old 05-07-2012, 06:20 AM   #16
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Much better shot of it Mike!
I looked over the pics I had and that one was the best I could find, if it was not raining out I would have went and took a pic of the actual bolt.


Hope all goes well with finishing it all up tonight.
WilliamE is offline   Reply With Quote
Old 05-07-2012, 12:59 PM   #17
Member
Posts like a V-Tak
Thread Starter

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

Yet another question...I want to add a Prestone flush kit to the car. Which hose is the inlet hose for the heater core? The larger diameter or smaller diameter hose? My common sense tells me the larger...but I want to be sure! Thanks...
kanecats is offline   Reply With Quote
Old 05-07-2012, 01:09 PM   #18
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by kanecats View Post
Yet another question...I want to add a Prestone flush kit to the car. Which hose is the inlet hose for the heater core? The larger diameter or smaller diameter hose? My common sense tells me the larger...but I want to be sure! Thanks...
The larger one is the inlet, you are correct.

http://parts.nalleygmc.com/showAssem...modelYear=2002
WilliamE is offline   Reply With Quote
Old 05-07-2012, 11:27 PM   #19
Member
Posts like a V-Tak
Thread Starter

kanecats's Avatar

Join Date: Apr 2012
Location: NJ
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
kanecats is on a distinguished road
Default

Well guys I messed up tonight. I didn't think I was tightening the coolant drain plug too tight, but the plastic nut sheered off the plastic bolt. Any suggestions on getting the thing out ?

Also is there a particular procedure I need to go through when I crank this thing over? I figure I will be ready soon! Thanks!
kanecats is offline   Reply With Quote
Old 05-07-2012, 11:39 PM   #20
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Sorry to hear that broke on you, I'm not sure how you'd get it out, but I found the part for you if you can get it out, there has to be some way, good luck!

http://parts.nalleygmc.com/showAssem...modelYear=2002

Part #18
WilliamE is offline   Reply With Quote
