Default 01 Park Ave Ultra lighting issues

Hey folks

I've got a 2001 Park Ave Ultra, with a bit of a lighting issue in the rear.

I've got no license lamps and no right side parking lamp.
They were working just earlier today.. in fact I just changed those license plate lamps last month... bulbs didn't blow, but I threw new ones in just now just because.

Checked fuses under the hood, all looks OK.


Does it sound like perhaps there is a ground issue? The turn signals, brake lights (both), reverse lights, and left side park light work just fine!

I'm expecting to get this car inspected on Friday and this is bugging me out!

Thanks for any hints or points in the right direction.. have minimal tools here.. not even a test light. moved a while ago and my power-probe/tool-box/et.al. is stored 60 miles away!
pkny1 is offline   Reply With Quote
Old 03-19-2014, 10:37 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,149
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

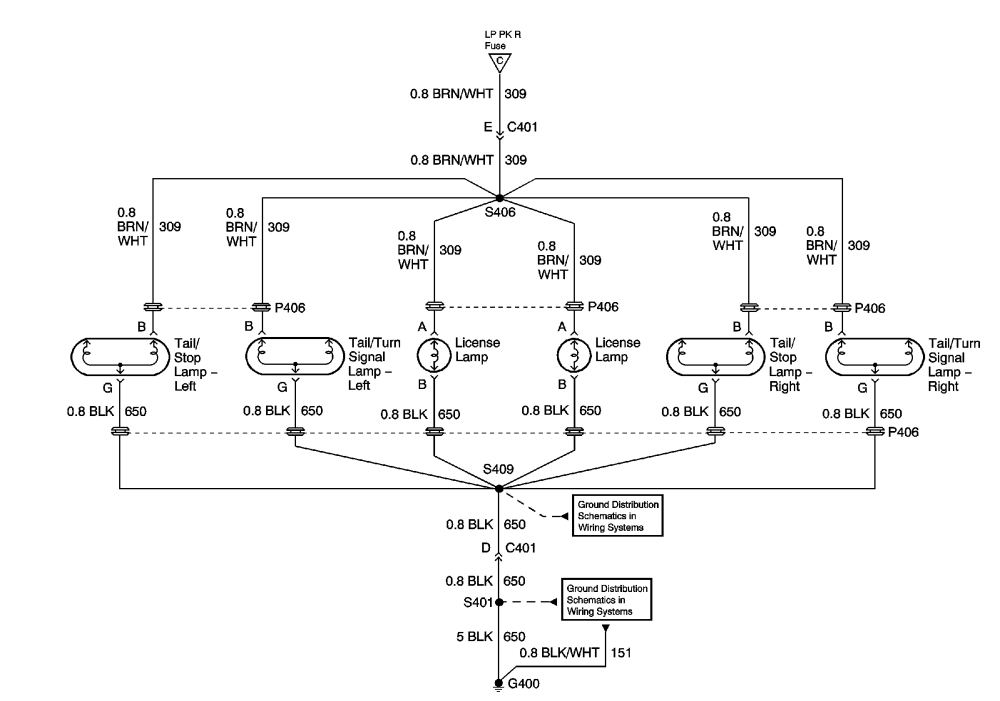

Your license plate bulbs have the same power and ground as your tail lamps......so if the tail lamps light, your power and ground, is ok....recheck your bulbs, along with the side marker bulb....could be bad sockets, or wiring, if bulbs are ok.....

Attached Thumbnails
01 Park Ave Ultra lighting issues-0996b43f80244ac1.gif

Last edited by Tech II; 03-19-2014 at 10:39 PM.
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
pkny1 (03-20-2014)
Old 03-19-2014, 11:19 PM   #3
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

it is true, they all share the same ground point. but there are several connections going to that point. i would check it anyway. if you pull back the passenger side carpet near the trunk hinge, there is a 10mm bolt with 3 ground wires going to it. if this isnt the problem, id trace the wires to where they connect. (i believe the junction point is in the right side of the trunk near the back of the seat behind the carpet, if i remember correctly.)
eltatertoto is offline   Reply With Quote
The Following User Says Thank You to eltatertoto For This Useful Post:
pkny1 (03-20-2014)
Old 03-19-2014, 11:48 PM   #4
Junior Member
Thread Starter

pkny1's Avatar

Join Date: Mar 2014
Posts: 5
Thanked 0 Times in 0 Posts
pkny1 is on a distinguished road
Default

thanks for the info so far guys, appreciate that awesome diagram. I once had access to Mitchell but the guy retired..

Reading this diagram I'm seeing that I might be wrong with what I thought was actually working.. seems more tail lights are out


The Left Tail/Stop lamp is working for tails and stops. The Right Tail/Stop lamp is working actually, for Stop only. Nothing else back there illuminates for tail lights, but signals work.

I see they call the others Tail/Turn on left and right, and those do nothing but turn signal right now.

Started raining just after I posted this... maybe in a few I'll go brave the rain.. sucks not having a garage anymore GRR
pkny1 is offline   Reply With Quote
Old 03-19-2014, 11:53 PM   #5
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

trunk is big enough, you could climb in. just remember to bring the remote and have someone within ear shot. haha. i know this sounds basic, but did you check the bulb sockets for corrosion? might be worth checking at least.
eltatertoto is offline   Reply With Quote
Old 03-20-2014, 12:14 AM   #6
Junior Member
Thread Starter

pkny1's Avatar

Join Date: Mar 2014
Posts: 5
Thanked 0 Times in 0 Posts
pkny1 is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Your license plate bulbs have the same power and ground as your tail lamps......so if the tail lamps light, your power and ground, is ok....recheck your bulbs, along with the side marker bulb....could be bad sockets, or wiring, if bulbs are ok.....

curious why you mentioned the side marker bulb... just so happens the driver'* side side marker bulb on the rear bumper went out a few days ago. are you thinking it may be shorting something?
pkny1 is offline   Reply With Quote
Old 03-20-2014, 12:34 AM   #7
Junior Member
Thread Starter

pkny1's Avatar

Join Date: Mar 2014
Posts: 5
Thanked 0 Times in 0 Posts
pkny1 is on a distinguished road
Default

Can't seem to edit my last post but I just went out there and I'm soaked. lol damn rain. I just buttoned up all the nuts holding the lights on and it'll be good for daytime driving, have to revisit this tomorrow I guess.

So now I noticed... both side markers out on the rear also.

Bulb sockets don't seem to have any corrosion, bright copper colored in there with no hint of green.

The first bulb I noticed which was the right park light, did indeed have a blown bulb (black colored glass with a broken filament inside)

Kind of irks me that the right side park lamp does function as a Brake lamp only, even with new bulb. a new bulb is supposed to fix this issue!!! lol, at least it always had on every other car I've had in the past !
pkny1 is offline   Reply With Quote
Old 03-20-2014, 11:06 PM   #8
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

are you absolutely sure you have the right bulbs? they make a bulb for that socket that isnt dual filament.
eltatertoto is offline   Reply With Quote
Old 03-24-2014, 02:07 PM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i have got the right dual filament bulb but put it in wrong before as well as had corrosion in it so it was working before i messed with it and then it didnt after. hard to tell without at least a test light
jwfirebird is offline   Reply With Quote
