Default Pic needed under hood GXP Bonnie

I hae a clunk then sqeek when taking off since I got the car back. While checking under the hood I noticed they didnt put things back the way they should have and need some pics. On the passenger side firewall there is a bracket with a relay on it. My realy is hanging loose and I think the bracket is upside down. Also on the passenger side lower where the heater pipe attahces to fire wall looks like he has things twisted up and no nut on the stud coming out of the firewall.

If anyone has or can take a pic of their unmolested one it would be great.

Thanks,

Brian
SLOGXP is offline   Reply With Quote
Old 08-25-2012, 03:01 PM   #2
Member
Posts like a V-Tak

Bill's GXP's Avatar

Join Date: Nov 2008
Location: New Jersey
Posts: 93
Thanks: 0
Thanked 1 Time in 1 Post
Bill's GXP is on a distinguished road
Default

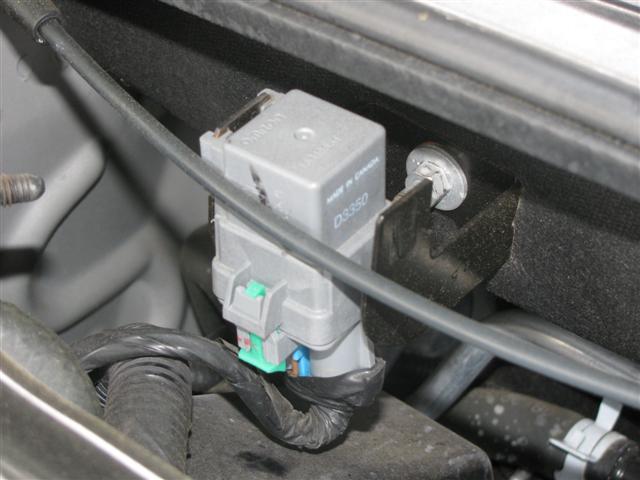

here'* pic of relay. Does this help. It'* never been moved. I'll look again for the heater pipe.
Attached Thumbnails
Pic needed under hood GXP Bonnie-img_1400-small-.jpg
Bill's GXP is offline   Reply With Quote
Old 08-25-2012, 03:34 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2012
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
SLOGXP is on a distinguished road
Default

Thanks Bill thats it helps alot. I appriciate your time in getting those pics.
Brian
SLOGXP is offline   Reply With Quote
Old 08-29-2012, 04:07 PM   #4
Junior Member
Posts like a Ricer Type-R

OldsGuy's Avatar

Join Date: Nov 2009
Location: On the peninsula
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
OldsGuy is on a distinguished road
Default

The relay is loose because the tabs on the bracket look like it should hold two relays on the outsides of the metal, not one in the middle. There is a lock tab on each side of the bracket and it is formed to lock a relay on the outside. If you bend it back in toward the relay then reinstall it, it should lock.

BTW, what is this relay for?
