Default Speaker connectors

I would like to make my own speaker connectors for a pair of aftermarket 5 1/4"*.......and i still want the factory tweeter to be hooked up at the same time.......now i will need some male and female delco speaker connectors for this to work, and i have found the female connectors

PT217--AC Delco site
Name:  pt217.gif
Views: 1
Size:  72.5 KB

now could anyone assist me in finding the male connectors for this? thanks
96bonniessei is offline   Reply With Quote
Old 03-07-2006, 09:29 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

i can get them..BOTH male and female....how many do you need.....going to junkyard tomarrow
1993 SLE is offline   Reply With Quote
Old 03-08-2006, 12:43 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

thanks for the offer man, but i just dont have any pay pal stuff set up to pay you........

im just kinda looking for a place on the internet where i can purchase these, or would i be able to buy them from my local gm dealer?
96bonniessei is offline   Reply With Quote
Old 03-08-2006, 08:11 PM   #4
Junior Member
Posts like a V-Tak

Join Date: Jan 2006
Location: Anderson IN/Rolla MO
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
TISbonneville is on a distinguished road
Default

im not sure if its exactly what your looing for, but crutchfield sells the connectors with the wires and all, makes for a clean install and you dont need to cut the wires, they run around 8 bucks, also be careful wireing like that, it might jack up you impedence on the head unit and fry the outputs
TISbonneville is offline   Reply With Quote
Old 03-08-2006, 08:21 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

yes im worried about that now......i figured when they came from the factory wired so that the tweeter could be hooked up and the 5 1/4" connector had full range signal, that i could hook a full range 5 1/4" instead of a delco bass speaker.........but now im not so sure it will work that way
96bonniessei is offline   Reply With Quote
Old 03-08-2006, 08:37 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 96bonniessei
yes im worried about that now......i figured when they came from the factory wired so that the tweeter could be hooked up and the 5 1/4" connector had full range signal, that i could hook a full range 5 1/4" instead of a delco bass speaker.........but now im not so sure it will work that way
not sure what you mean but ill give it a shot

there are 2 sets wires in each door....one for the Tweeter and one for the 5.25...BOTH of the sets of wires has the full range signal....the Factory Tweeter has a Freq blocker to prevent the low notes from damaging the speaker.....and then the other set of wires powers the 5.25 at full range
1993 SLE is offline   Reply With Quote
Old 03-08-2006, 09:19 PM   #7
Senior Member
Posts like a Northstar

charliemax's Avatar

Join Date: Jan 2006
Location: Valley Forge, PA
Posts: 598
Thanks: 0
Thanked 0 Times in 0 Posts
charliemax is on a distinguished road
Default

Yeah. Like TISbonneville said above...... I picked up conversion plugs at Circuit City. $8 for a pair. Just go back to their installation area and tell the guys you are upgrading speakers in the Bonne. They'll give you the right connectors.
charliemax is offline   Reply With Quote
Old 03-08-2006, 09:38 PM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

well i was just worried about the ohm load on the radio, since i would be connecting 2 speakers to one connector that is in the door............the way my speakers are at the moment, is the signal goes to the 51/4, then passes through that and heads to the tweeter.........
96bonniessei is offline   Reply With Quote
Old 03-11-2006, 03:00 AM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

i have the 8 speaker stereo in my 96 ssei, and im pretty sure its not bose, and the guys and best buy thought i had a crossover on my front speakers..........................so there is a bass blocker on the tweeter, but is there anything on the 5 1/4"*? is there a thing on it that blocks the higher frequencies?
96bonniessei is offline   Reply With Quote
Old 03-11-2006, 03:30 AM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

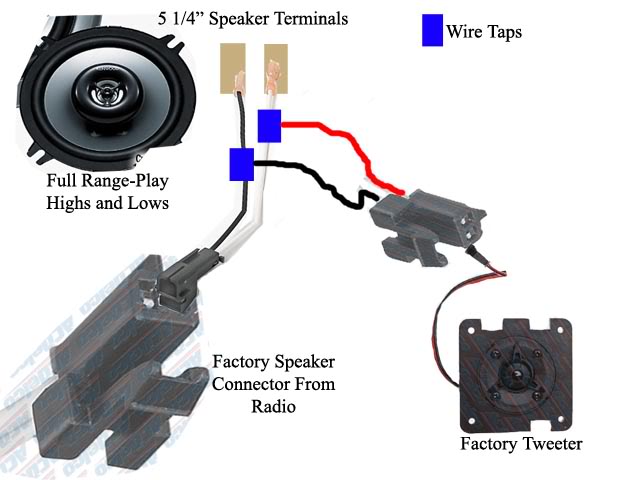

i guess this is what i'm trying to say.......i'd like to do this without messing up the resistance/ohms between the headunit and the speakers


Name:  speakersetup.jpg
Views: 1
Size:  37.8 KB
96bonniessei is offline   Reply With Quote
