Install new speakers in 2002 SSEi - Easy...?
#21
Senior Member
True Car Nut
They will sound better than the ones that are blown, and since you plan to sell it next year there is no need go overboard and add anything else.
Wait, after actually looking at the price, considering you do not plan to keep the car long, I would not invest that much on speakers I would not be using for long, like already suggested, I'd just check a junkyard and try to find some stock replacements if it were me.
Wait, after actually looking at the price, considering you do not plan to keep the car long, I would not invest that much on speakers I would not be using for long, like already suggested, I'd just check a junkyard and try to find some stock replacements if it were me.
#22
Senior Member
Posts like a Turbo
Thread Starter
What about these?
JBL GTO series.
JBL Car Audio: Car Speakers
They are a true 2 ohm speaker - and fit the SSEi.
JBL GTO series.
JBL Car Audio: Car Speakers
They are a true 2 ohm speaker - and fit the SSEi.
#24
-- SITE DONATOR --
True Car Nut
The monsoon amp is mounted on the left side behind the back seat:

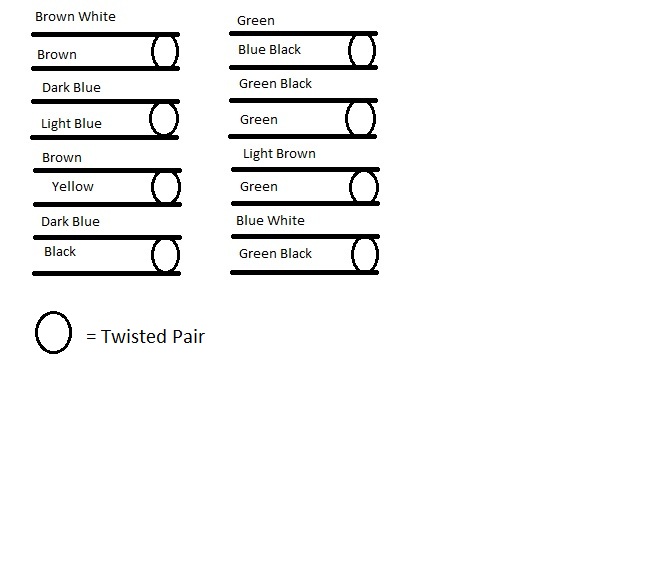

If I remember correctly, the amp only has 4 speaker inputs which it splits into 8 speaker outputs. Two inputs for the front which is crossed over and sends high to tweeters and mid range to door drivers, and two for the rear which is crossed over and sends lows to rear 6x9s and mid range to the rear door drivers. If you plan to replace the headunit you can and should bypass the amp. There are two harnesses in the amp. One contains the wires coming from the radio, the other contains the wires to the speakers. I made a wiring diagram based on my car, might work for yours as well. Notice you can only hook up 4 speakers though, so you will want a component kit for the front doors so that you can use those two feeds to feed all four front speakers, then you choose either rear doors or rear 6x9s.
For the 2003 Bonneville with the Monsoon amp, there are two bigger harnesses going into the monsoon amp. One is an input from the radio, the other is an output to speakers. The speaker wires are in twisted pairs. I believe Brown is LeftRear +, Yellow is LeftRear -, Dark Blue is RightRear+ and Light Blue is RightRear -. Not sure about the rest but, if you are bypassing the amp, the wire on the left side of the diagram gets connected to the wire on the right side of the diagram. Atleast that is how it worked out in mine.
Eventually I gutted the car and ran all new wiring, but perhaps the above will be helpful in your endeavor or convince you to do the same as I did:
https://www.gmforum.com/members/ymmo...o-project-231/
https://www.gmforum.com/members/ymmo...*-03-ssei-229/
If I remember correctly, the amp only has 4 speaker inputs which it splits into 8 speaker outputs. Two inputs for the front which is crossed over and sends high to tweeters and mid range to door drivers, and two for the rear which is crossed over and sends lows to rear 6x9s and mid range to the rear door drivers. If you plan to replace the headunit you can and should bypass the amp. There are two harnesses in the amp. One contains the wires coming from the radio, the other contains the wires to the speakers. I made a wiring diagram based on my car, might work for yours as well. Notice you can only hook up 4 speakers though, so you will want a component kit for the front doors so that you can use those two feeds to feed all four front speakers, then you choose either rear doors or rear 6x9s.
For the 2003 Bonneville with the Monsoon amp, there are two bigger harnesses going into the monsoon amp. One is an input from the radio, the other is an output to speakers. The speaker wires are in twisted pairs. I believe Brown is LeftRear +, Yellow is LeftRear -, Dark Blue is RightRear+ and Light Blue is RightRear -. Not sure about the rest but, if you are bypassing the amp, the wire on the left side of the diagram gets connected to the wire on the right side of the diagram. Atleast that is how it worked out in mine.
Eventually I gutted the car and ran all new wiring, but perhaps the above will be helpful in your endeavor or convince you to do the same as I did:
https://www.gmforum.com/members/ymmo...o-project-231/
https://www.gmforum.com/members/ymmo...*-03-ssei-229/
#25
Senior Member
True Car Nut
he said he wasent going to replace the hu or speakers because he was selling the car. those mm and jbl and infinity speakers dont sound good un-amped you cant really believe what they tell you in the description. and like i said the oem amp doesnt even put out as much as a good aftermarket hu
#26
Senior Member
True Car Nut
three and two way refers to the tweeters and mids on the speaker. a three way has the big cone for lows, the mid size cone for mids and little tweeter for highs. two ways just have the regular speaker and tweeter
#27
Retired
Please stay on the original topic of actual installation and leave the technical speaker questions in the other thread. It'* confusing answering the same question in 2 threads. Thank you.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
