Default Almost finsihed

Well after several attempts to make this look right, i think i finally just about have it. IM not entirely done yet, but im pretty close to where i want to be. what do u all think?

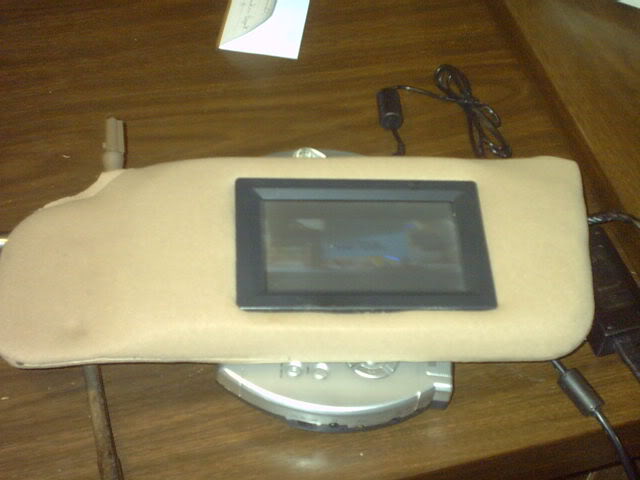

Name:  Picture030.jpg
Views: 1
Size:  33.0 KB

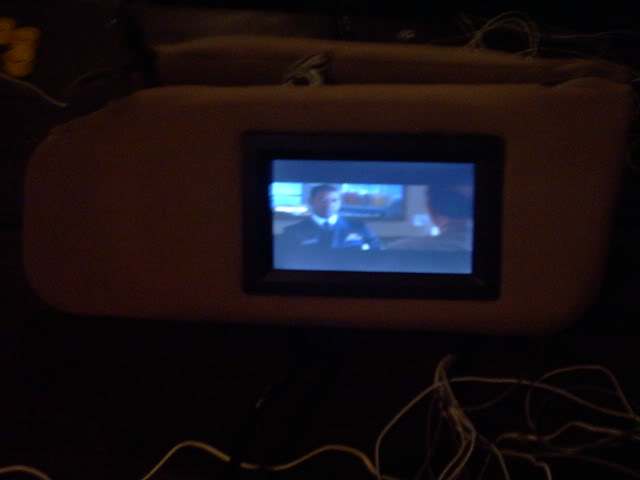

Name:  Picture033.jpg
Views: 1
Size:  18.3 KB
jachin is offline   Reply With Quote
Old 02-11-2005, 10:09 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

that is really sweet. what are you using as a source unit for your video??
1993 SLE is offline   Reply With Quote
Old 02-11-2005, 10:22 PM   #3
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Sep 2003
Location: springfield il
Posts: 1,369
Thanks: 0
Thanked 1 Time in 1 Post
jachin is on a distinguished road
Default

just a cheapie mobile dvd player. I might upgrade to mobile navigation later though, depending on how other things turn out
jachin is offline   Reply With Quote
Old 02-11-2005, 10:47 PM   #4
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

How are your wires routed? The second pic makes it look like they are just loosly mounted.. are they?


-justin
opensourceguy is offline   Reply With Quote
Old 02-11-2005, 10:52 PM   #5
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

that looks hawt! get a ps2 or something in there. that would be better than navigation imo!
Lowrider0308 is offline   Reply With Quote
Old 02-11-2005, 10:58 PM   #6
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Lookin good there, Jachin. I'd like to know how the wires will be routed too. Can you elaborate?

The visor looks a little thick. Have you considered mounting the screens without the rear housing?
randman1 is offline   Reply With Quote
Old 02-11-2005, 11:05 PM   #7
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Sep 2003
Location: springfield il
Posts: 1,369
Thanks: 0
Thanked 1 Time in 1 Post
jachin is on a distinguished road
Default

Yeah, that was one option. I have to admit that in the end, certain elements of this might seem tacky. The screens were inexpensive, so i can live with them being a little thick, and im not putting the second visor back in, so it should seem about normal with them up. When i flip them down, it might be another matter, idk ill have to see. They are thick because i had to make some foam plates that attatced to the visor so the screens woudnt just stick out and also so i could mount them in the visors. I might go back later on anc cut out the back like you said, all depends on how satisfied i am with the final project. As for the wires, they are thicker than what i would like them to be, but for the most part, after i redo my headliner, they wont be seen. there is no way to run them through the visor mount
jachin is offline   Reply With Quote
Old 02-11-2005, 11:12 PM   #8
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

What'* the overall thickness of the monitor including the housing?
randman1 is offline   Reply With Quote
Old 02-11-2005, 11:28 PM   #9
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

idnt that illegal?
rjolly87 is offline   Reply With Quote
Old 02-12-2005, 12:18 AM   #10
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Sep 2003
Location: springfield il
Posts: 1,369
Thanks: 0
Thanked 1 Time in 1 Post
jachin is on a distinguished road
Default

the plastic housing was maybe 3/8 along with the chipset id say about 1/2 inch. Im considering shaving down the back of the visor on the other other side considering it isnt fabriced yet, and comparing the 2. Like just about everything else i do, im not gunna get the best result the first time, or the second or third for that matter.
jachin is offline   Reply With Quote
