Anyone got a second to talk about what lines might go where on my 01 SSEi? I'm finding someone has messed something up at some point... BUT I have no camera for pics. Sorry. It seems to run great, but the lines don't match the hood diagram and there is an empty port with no line on the BCS. Just the remains of foam and a clip to hold a line. Any idea or suggestion would be greatly appreciated.

Doug
fdh01bonneville is offline   Reply With Quote
Old 04-01-2007, 09:02 PM   #2
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Mar 2007
Location: Charlotte, NC
Posts: 124
Thanks: 0
Thanked 0 Times in 0 Posts
fdh01bonneville is on a distinguished road
Default

Figured out the foam - it'* a vent, thank you wilren. But still have a ? 'bout another T and line. :(
fdh01bonneville is offline   Reply With Quote
Old 04-01-2007, 09:24 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

What is the question?
Archon is offline   Reply With Quote
Old 04-02-2007, 12:05 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

this might help you

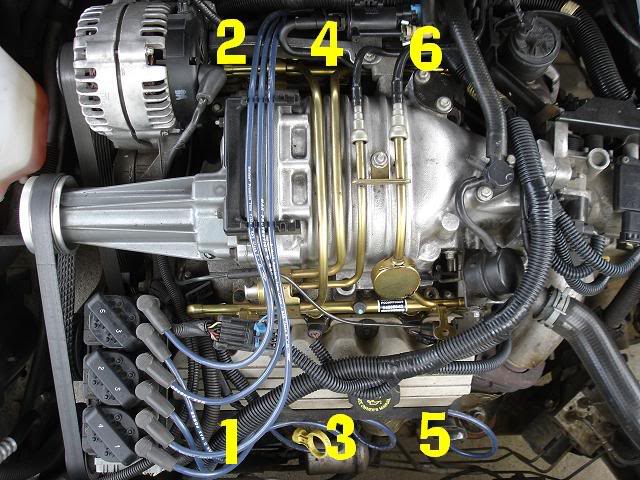

Name:  wires.jpg
Views: 2
Size:  74.7 KB
1993 SLE is offline   Reply With Quote
Old 04-02-2007, 12:35 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

willwren is offline   Reply With Quote
Old 04-02-2007, 11:07 PM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

From a PM, he was wondering about the routing of the vacuum line from the T under the supercharger snout, as well as the multi-port connection on top of the supercharger.

Quote:
Originally Posted by Archon
First the center vacuum port on the supercharger is capped off.

Then, the port from the LIM under the supercharger snout has a T connected to it. If you're standing on the passenger side of the engine, the left side of the T runs back to the MAP sensor. It has an elbow fitting that connects the vacuum line to the MAP sensor.

The right side goes to a vacuum line that runs to another T at the fuel pressure regulator, and then runs from that T to the BCS.
Archon is offline   Reply With Quote
Old 04-03-2007, 01:01 AM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Mar 2007
Location: Charlotte, NC
Posts: 124
Thanks: 0
Thanked 0 Times in 0 Posts
fdh01bonneville is on a distinguished road
Default

Thanks you guys - I ordered the lines and Tees from the dealer and I will get it back together correctly friday. I jury rigged it and it works sooooo much better!

You guys rock.

Doug
fdh01bonneville is offline   Reply With Quote
