Default New Intermediate Shaft- What IS the Diff

Can anyone tell us what the difference is in the original shaft and the revised one (P/N 26068295)?

Picture would be super.
compyelc4 is offline   Reply With Quote
Old 04-03-2007, 12:35 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I don't have a picture, but the TSB describes it this way.

Quote:
The replacement steering intermediate shaft is physically different in appearance than the original. However, the vehicle'* ride performance will not be affected.

Replace the original concentric style steering shaft with P/N 26068295, a Double "D" design.
Archon is offline   Reply With Quote
Old 04-03-2007, 01:00 AM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Dec 2002
Location: Bellbrook, Ohio
Posts: 547
Thanks: 0
Thanked 0 Times in 0 Posts
compyelc4 is on a distinguished road
Default

Thanks archon,

Have you seen one? What does the double "D" refer to?
compyelc4 is offline   Reply With Quote
Old 04-03-2007, 11:33 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

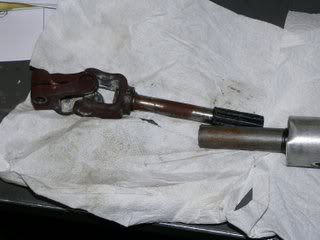

I have not seen one as of yet. The current concentric shaft has one circular shaft inside the other, with splines on the inner shaft.
Name:  Lowershaft.jpg
Views: 18
Size:  11.7 KB

As I understand the double D, it is basically a round shaft with flats on opposite sides to give it sort of an oval shape. The top U joint of the current ISS is that type. This is the best picture of what I have that would show that.
Name:  Hole.jpg
Views: 27
Size:  34.0 KB
Archon is offline   Reply With Quote
Old 04-03-2007, 08:28 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Dec 2002
Location: Bellbrook, Ohio
Posts: 547
Thanks: 0
Thanked 0 Times in 0 Posts
compyelc4 is on a distinguished road
Default

Thanks for the pics. I am most familiar with my current one. I often wonder if the slight scrunching sound is coming from the universal OR the steering wheel bearing. Has anyone replaced the shaft and the noise/feel NOT gone away?[/u]
compyelc4 is offline   Reply With Quote
Old 04-04-2007, 01:54 AM   #6
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

OK, as you're familiar with the current one, where the top U joint slips into the steering column, that is the double D design.

I don't recall anyone reporting that they still had the clunk after replacing the intermediate shaft.
Archon is offline   Reply With Quote
Old 04-04-2007, 02:07 AM   #7
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

I know the new one is a lot beefier then the one posted here I should have taken a frickin pic when they swapped mine
