Default Vacuum line. What is supposed to go here?

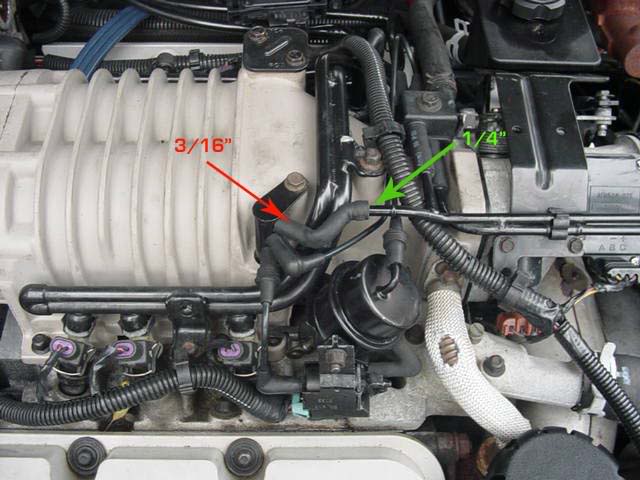

I replaced almost evert rubber vacuum hose section under the hood and ran into one small problem. Thake a look at the pic to see that one stud is 3/16" and the other is 1/4". Previously, there was a 1/4" hose connecting the two which caused a small leak. I managed to shove a 3/16" hose over the 1/4" stud and now the leak has stopped but it looks crappy and I'm woried that it might fall of the one end (you can see that it didn't go on very far. What does the original line look like??

Name:  DSC01060_edit.jpg
Views: 51
Size:  54.7 KB
randman1 is offline   Reply With Quote
Old 10-15-2004, 02:53 PM   #2
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

OOOps, forgot to mention this too. The BCS has that V-shaped line that I would like to replace. Has anyone seen direct replacements?

Also, there is a missing foam "cap" of sorts just beside the aformentioned line. What is supposed to go there too?
randman1 is offline   Reply With Quote
Old 10-15-2004, 03:02 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

want a picture of mine?
harofreak00 is offline   Reply With Quote
Old 10-15-2004, 03:04 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Sure, if you have one handy.
randman1 is offline   Reply With Quote
Old 10-15-2004, 03:11 PM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

wow i forgot how cold it was outside...

i found that on mine, the smaller side was extrememy loose, it basically just fell off...and a lot of the lines looked liked they need to be replaced...maybe loosing some boost there?

anyways here ya go

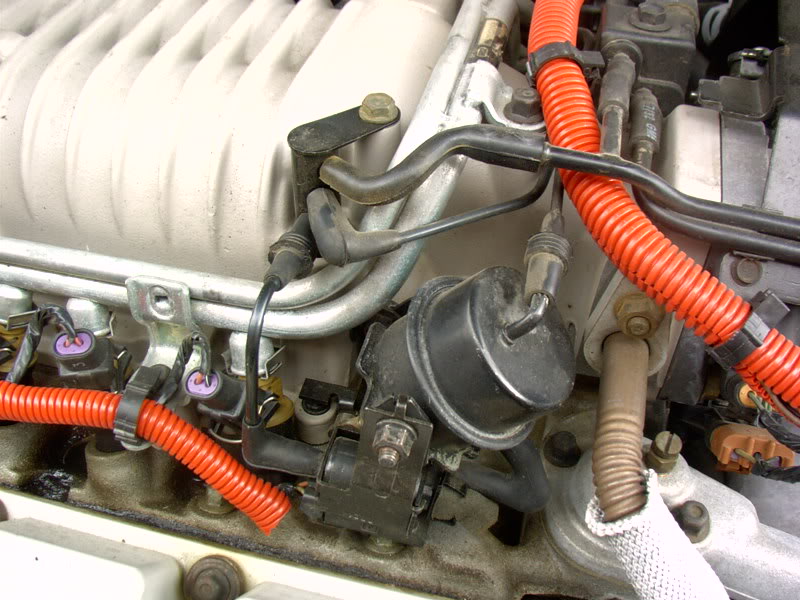

Name:  PDR_0010.jpg
Views: 34
Size:  96.2 KB

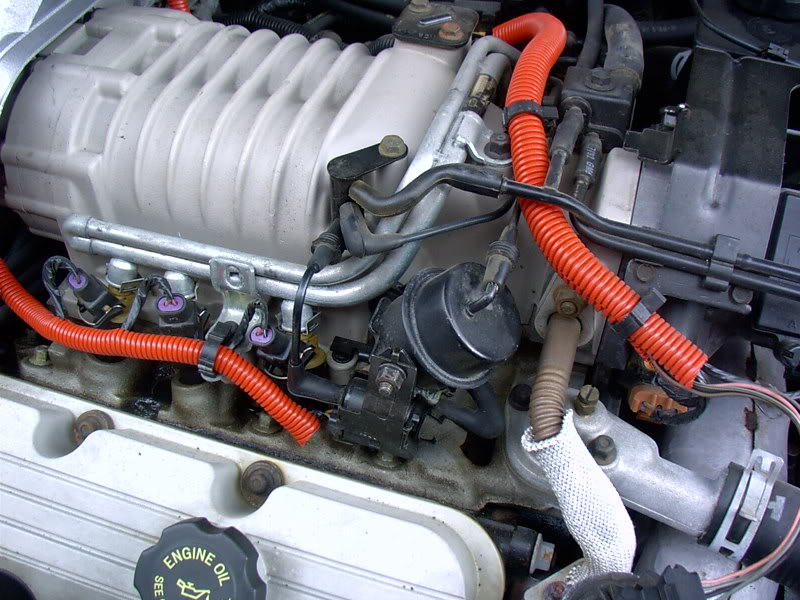

Name:  PDR_0011.jpg
Views: 32
Size:  104.1 KB

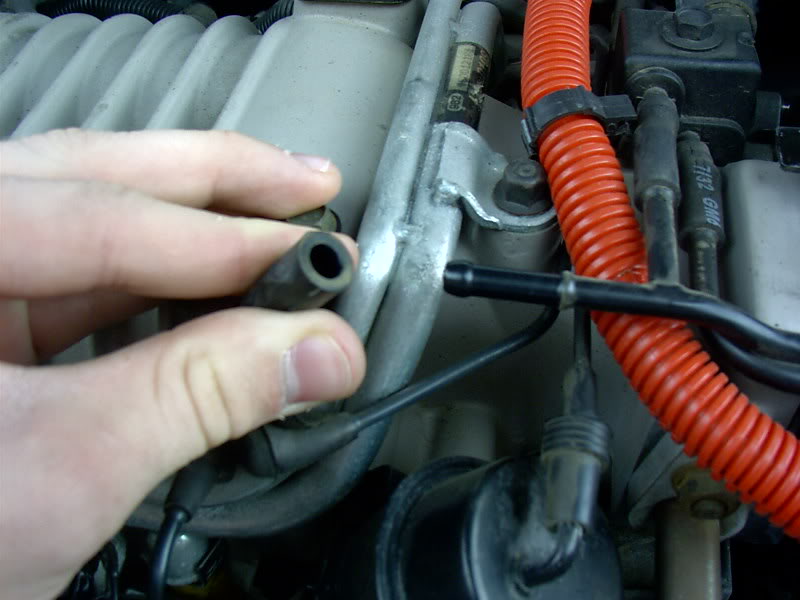

Name:  PDR_0012.jpg
Views: 28
Size:  57.2 KB

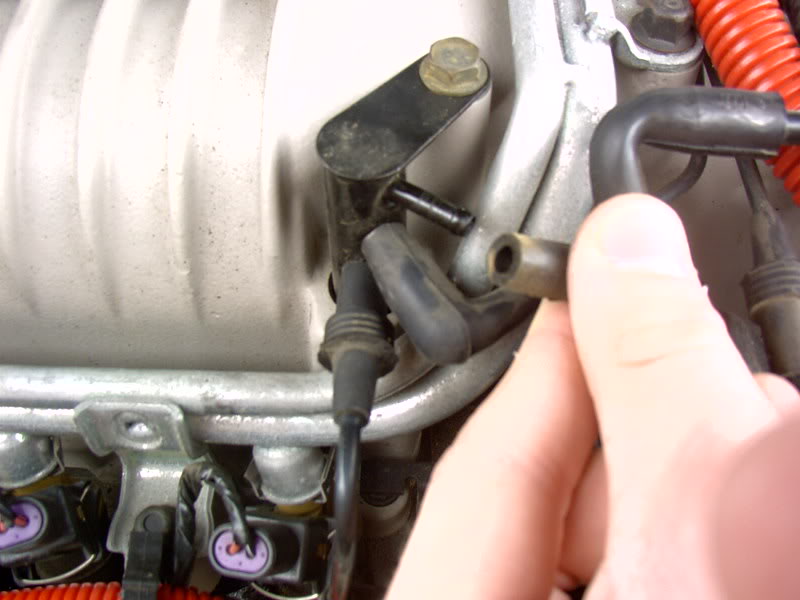

Name:  PDR_0013.jpg
Views: 33
Size:  53.0 KB
harofreak00 is offline   Reply With Quote
Old 10-15-2004, 03:23 PM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

That looks exactly like the one I removed. Hmmm... maybe a plactic hose clamp would work???

Thanks for going out there in the cold for me!
randman1 is offline   Reply With Quote
Old 10-15-2004, 07:20 PM   #7
Senior Member
Certified GM nut

Join Date: Apr 2003
Location: Davison,Michigan
Posts: 1,867
Thanks: 0
Thanked 0 Times in 0 Posts
russianpolarbear is on a distinguished road
Default

Just use 1/4 hose and then clamp it onto the smaller fitting. Thats whats gotta be done.
