Default SuperCharger belt pulleys are noisy

2001 SSEI,

Are there any good pulleys to use as replacements? Also, I'm not sure how these tensioners work? I have read that they use a T-50 and are reverse threaded. So how do you loosen the tensioner to remove the belt and then remove the three pulleys?

I can see a tiny bit of wobble in #3 pulley.

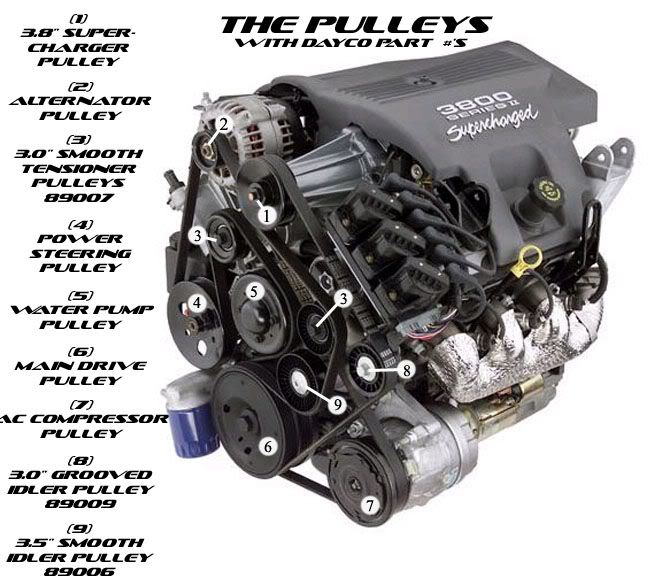

Attached Thumbnails
SuperCharger belt pulleys are noisy-s2l67.jpg

Last edited by mdbonnie; 08-03-2009 at 05:09 PM. Reason: updated
mdbonnie is offline   Reply With Quote
Old 08-03-2009, 05:07 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Some cars have the T50 torx and others have a 15mm bolt. You will loosen the belt by going towards the rear of the car with the wrench. ZZ performance has a good selection of after market pulleys.
Danthurs is offline   Reply With Quote
Old 08-03-2009, 05:17 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2009
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
mdbonnie is on a distinguished road
Default

ok will check it out and find out where I can buy a T-50 torx...
mdbonnie is offline   Reply With Quote
Old 08-03-2009, 05:44 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think I got mine at Sears. It'* a whole set.
Danthurs is offline   Reply With Quote
Old 08-04-2009, 09:45 AM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2009
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
mdbonnie is on a distinguished road
Default

I had a smaller set but found the T-50 at PEP boys for 3.99.

Will pick up the pulleys from a NAPA auto parts store later today and also get some super charger oil and remove and replace the supercharger oil at the same time.

From what I've read it sounds like I tighten the tensioner to loosen it up. Remove the belts and loosen all of the reverse threaded torx bolts for all of the pulleys to remove them.
mdbonnie is offline   Reply With Quote
Old 08-05-2009, 05:51 AM   #6
Senior Member
Posts like a Northstar

Nobotada84's Avatar

Join Date: Apr 2009
Location: Indianapolis, Indiana
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
Nobotada84 is on a distinguished road
Default

Just as an FYI, when you change the SC oil be prepared for the WORSE SMELL you have ever experienced.LOL
Nobotada84 is offline   Reply With Quote
Old 08-05-2009, 12:50 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2009
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
mdbonnie is on a distinguished road
Default

I found the following link for a 2001 GTP. Apparently for the GTP there is only one left handed thread on the Serpentine tension pulley. All others are right handed,inlcuding the super charger tensioner? Does anyone know if this is true for the Bonneville? Practically the same engine and same layout.

WikiAnswers - How do you change the serpentine belt on a 2001 Pontiac Grand Prix
mdbonnie is offline   Reply With Quote
Old 08-08-2009, 01:53 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2009
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
mdbonnie is on a distinguished road
Default

Very easy, It turns out there were two left handed threaded bolts in the case of my 2000 SSEI, from the above chart pulleys 3 and 8. I only replaced pulley 9 as the pulleys i got from Napa were made in China and # 3 wasn't even close to fitting with the stock torx head bolt and special washer plate. Since it was so easy I will replace when needed and with stock or a quality after market part.
mdbonnie is offline   Reply With Quote
