Intake PCM relocation - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 11-19-2006, 05:11 PM   #1
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Central Illinois
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
94bonni is on a distinguished road
Default Intake PCM relocation

Call me stupid but how do i get the stock air intake off of the 2003 se so i can put a cai on there?? Well i figured it out but now what do i do about the pcm??
94bonni is offline   Reply With Quote
Old 11-19-2006, 06:17 PM   #2
Senior Member
Posts like a Supercharger

Join Date: Dec 2005
Location: the 'swha
Posts: 155
Thanks: 0
Thanked 0 Times in 0 Posts
Kaddykid is on a distinguished road
Default

Intense sells a cradle for the Pcm....But I just cut down my old airbox down...it works
Kaddykid is offline   Reply With Quote
Old 11-19-2006, 06:42 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

well worth it..

Quote:
Quantity in Basket: none
Code: GMH-PTR
Price:$16.99
http://www.intense-racing.com/Mercha...tegory_Code=IE

harofreak00 is offline   Reply With Quote
Old 11-19-2006, 07:10 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Central Illinois
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
94bonni is on a distinguished road
Default

how do i take the pcm out of the air box?
94bonni is offline   Reply With Quote
Old 11-19-2006, 09:21 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Basically, disconnect the batt neg., disconnect the IAT sensor, remove the air intake duct from tb & air cleaner housing, remove cover assembly from air cleaner housing. This should provide access to remove the PCM.
markwb is offline   Reply With Quote
Old 11-19-2006, 10:31 PM   #6
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Inside the air box the pcm is held down with 2 tabs on either side.
PontiacDad is offline   Reply With Quote
Old 11-21-2006, 11:26 PM   #7
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: Niagara Falls Ontario Canada
Posts: 1,121
Thanks: 0
Thanked 0 Times in 0 Posts
brianj is on a distinguished road
Default

I use the Intense PCM tray. Mounts best on an angle if you cut of the one side mounting bracket that extends out from the tray. I used self tap screws drilled through the bottom of the tray.

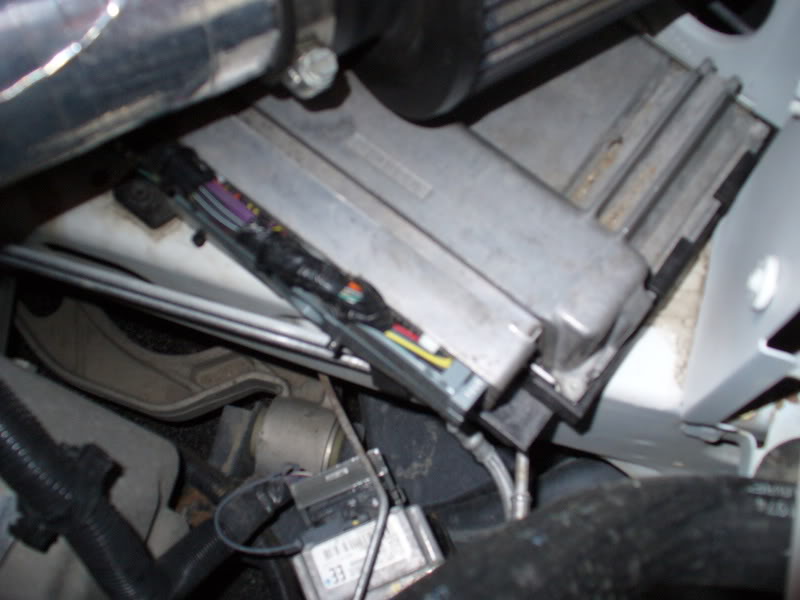

Name:  P1000616.jpg
Views: 4
Size:  57.1 KB

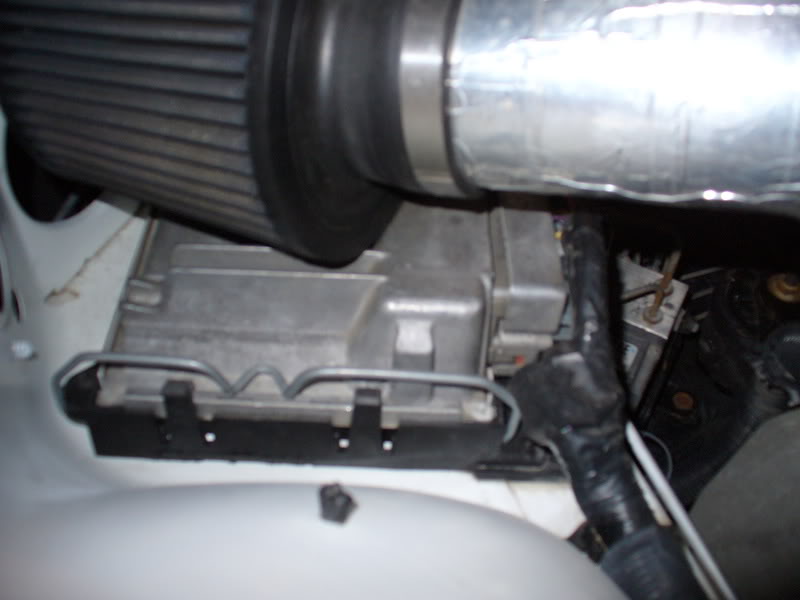

Name:  P1000615.jpg
Views: 4
Size:  45.7 KB

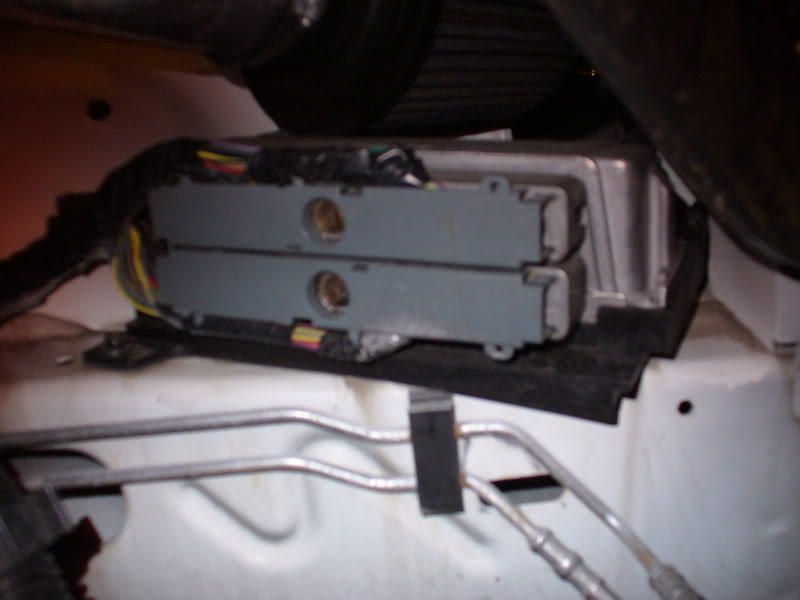

Name:  P1000614.jpg
Views: 4
Size:  41.5 KB
brianj is offline   Reply With Quote
