Default Front windows don't go down, painfull troubleshooting

Background- the 2001 SSEi front windows would not roll down after the car was sitting in Arizona for six months. The rear windows worked. The rear regulators were replaced in 2010 after the windows dropped and would not roll back up.

Driving from AZ to PA, the front passenger window worked once. The front driver'* window started to work and then stopped working.

There is a roll of wire in a plastic that goes from the dash to the door that contains power, speaker wires, etc. It is common thought that a orange wire in the space between the cabin and the door breaks over time. I pulled out the wire harness (super pain in the but) and found no wire issues. I had voltage to the door, but heard a clicking when trying to roll down the windows so I thought maybe enough voltage, but a frayed wire could be preventing amps from running.

With the wires looking ok, I replaced the DDM. Still no change in front windows not comming down. I then replaced the window switches, although I thought unlikely both went bad at same time. Still no windows going down. Next I replaced the door wires with an extra set, still no windows going down.

I reluctantly pulled the plastic water shield off the door and inspected the window actuator. I don't like removing this shield as it is the source of water entering the cabin under the carpet and I spent weeks doing a permanent seal a few years back.

With the door open, I inspected the window actuator and motor, connections, etc. All looked well. Prior failures always involved a broken cable and a dropped window, an inspection showed everything intact-ed.

I then took a heavy steel mallet and hit the regulator motor, Low and behold, the driver'* window started working. I went to front passenger side and did the same, but without pulling the plastic water shield and the front passenger window still did not work. I then pulled the plastic water shield and struck the actuator motor directly, and it then began to work.

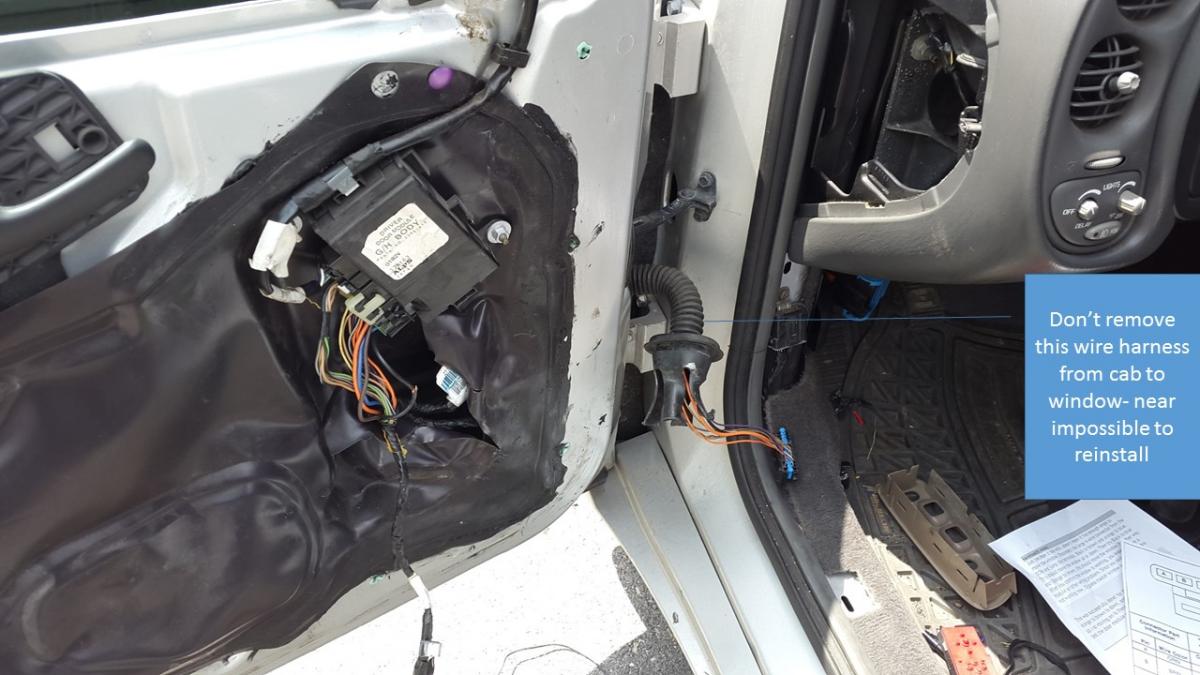

Attached is a picture of what I tore apart in the diagnoses- I am sorry to say I spent a lot and time and money when all along it was the regulator motor. Maybe they are tired and the AZ heat put them in a coma. I will be working the windows every chance I get to give them exercise.

Lot of lessons learned in this job- number one is to not pull the wire harness from the cab to the door. Is is near impossible to pull back in place, if I did not have a plumbers snake I don't think I could of got it back without a major cab dis-assembly.
Attached Thumbnails
Front windows don't go down, painfull troubleshooting-bonneville-window.jpg
GunsOfNavarone is offline   Reply With Quote
The Following User Says Thank You to GunsOfNavarone For This Useful Post:
Soft Ride (05-24-2015)
Old 05-23-2015, 08:00 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Whoever designed the window system on these newer cars should be taken out into field and given wall-to-wall counseling with a baseball bat.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
John01 (05-23-2015)
Old 05-23-2015, 09:01 PM   #3
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

I'm going out to buy a big rubber mallet right now..
John01 is offline   Reply With Quote
Old 05-24-2015, 04:11 AM   #4
Retired Administrator

True Car Nut
Thread Starter

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Quote:
Originally Posted by John01 View Post
I'm going out to buy a big rubber mallet right now..
I used a metal mallet......
GunsOfNavarone is offline   Reply With Quote
Old 05-24-2015, 09:54 AM   #5
Senior Member
Posts like a Supercharger

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

Quote:
Originally Posted by GunsOfNavarone View Post
I used a metal mallet......
You caught me just in time.. metal it is..
John01 is offline   Reply With Quote
Old 05-28-2015, 01:33 PM   #6
Junior Member

Join Date: May 2015
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
nerd is on a distinguished road
Default

Looking at this I have a window problem with my 2001 Bonneville I am mechanical enough I will end up hitting the right thing with a mallet sometime sooner rather than later. But after replacing all the fuses that go to my passenger door still do not have a working window. AC works wonderful but love the feel of fresh air when driving. Would you recommend just buying a new regulator motor or banging it and possibly doing more damage than now? need advice.
