Old 12-01-2005, 07:45 AM   #51
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Andrew..Let me get more info... but Thomas from AZGP had mentioned in the thread I started that one of them had mismounted the PS pump at one time. Maybe there are multiple positions.

Looks like this problem is getting closer to being solved.
BillBoost37 is offline   Reply With Quote
Old 12-01-2005, 10:16 AM   #52
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

Hmmmm...intersting...

What parts are you using from what vehicle? Specifically the Power Steering Pump and Tensioner/Alt Bracket/Heater components?

The tensioner bracket is different on the GTP, very similar but not identicle. I didn't realise there may be a different in Power Steering Pumps either, that said, both of these assemblies obviously mount to the same holes on the engine.

In case you have mixed components, I would suggest you use the Bonneville Tensioner Assembly and Power Steering Pump if you're not already. But I'm sure this is the root of your problem, you must be using the GTP Tensioner Assembly, right?

Cheers,
Foghorn is offline   Reply With Quote
Old 12-01-2005, 10:29 AM   #53
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Actually Foghorn...Thomas had said there was more than one way to mount a ps pump..lol

Off to get the info...below is the post from Thomas...I wll try and get more information.

Re: Need help...98 GP Accessory Belt Posted: Tue Nov 22, 2005 11:28 pm
Download Post


--------------------------------------------------------------------------------

Ok, looked at my car with a friend and my friend told me a story about one day he miss mounted his alt, didn't realize it until he couldn't get the belt on... it was a 3800. Yep same motor. 1989 La sabre.

Check the mounting of the parts.

Actually, one day I miss mounted my PSpump. Doh..!!!!
BillBoost37 is offline   Reply With Quote
Old 12-01-2005, 10:57 AM   #54
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Off to get the info...below is the post from Thomas...I wll try and get more information.
--------------------------------------------------------------------------------

Actually, one day I miss mounted my PSpump. Doh..!!!!
You can't actually 'miss-mount' the pump, there are 2 bolt holes in the block and the corresponding 2 holes in the pump at the 12 o'clock and 5:30 positions relative to the center of the pulley (maybe slightly offset to the right of center).

Either the pump is mounted correctly or it'* not.

Cheers,
Foghorn is offline   Reply With Quote
Old 12-01-2005, 12:06 PM   #55
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

I was chatting with Andrew last night....and I though it was the accessory bracket....looks like that might be correct....getting closer Andrew
1993 SLE is offline   Reply With Quote
Old 01-01-2006, 05:49 PM   #56
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

FIXED!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

put a new bonnie alt bracket on, and the original alt, everything is fine and dandy...
harofreak00 is offline   Reply With Quote
Old 01-01-2006, 06:05 PM   #57
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

glas to hear man...at least one less thing to worry about :P
1993 SLE is offline   Reply With Quote
Old 01-02-2006, 11:40 PM   #58
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Name:  DSC08824.jpg
Views: 0
Size:  164.8 KB

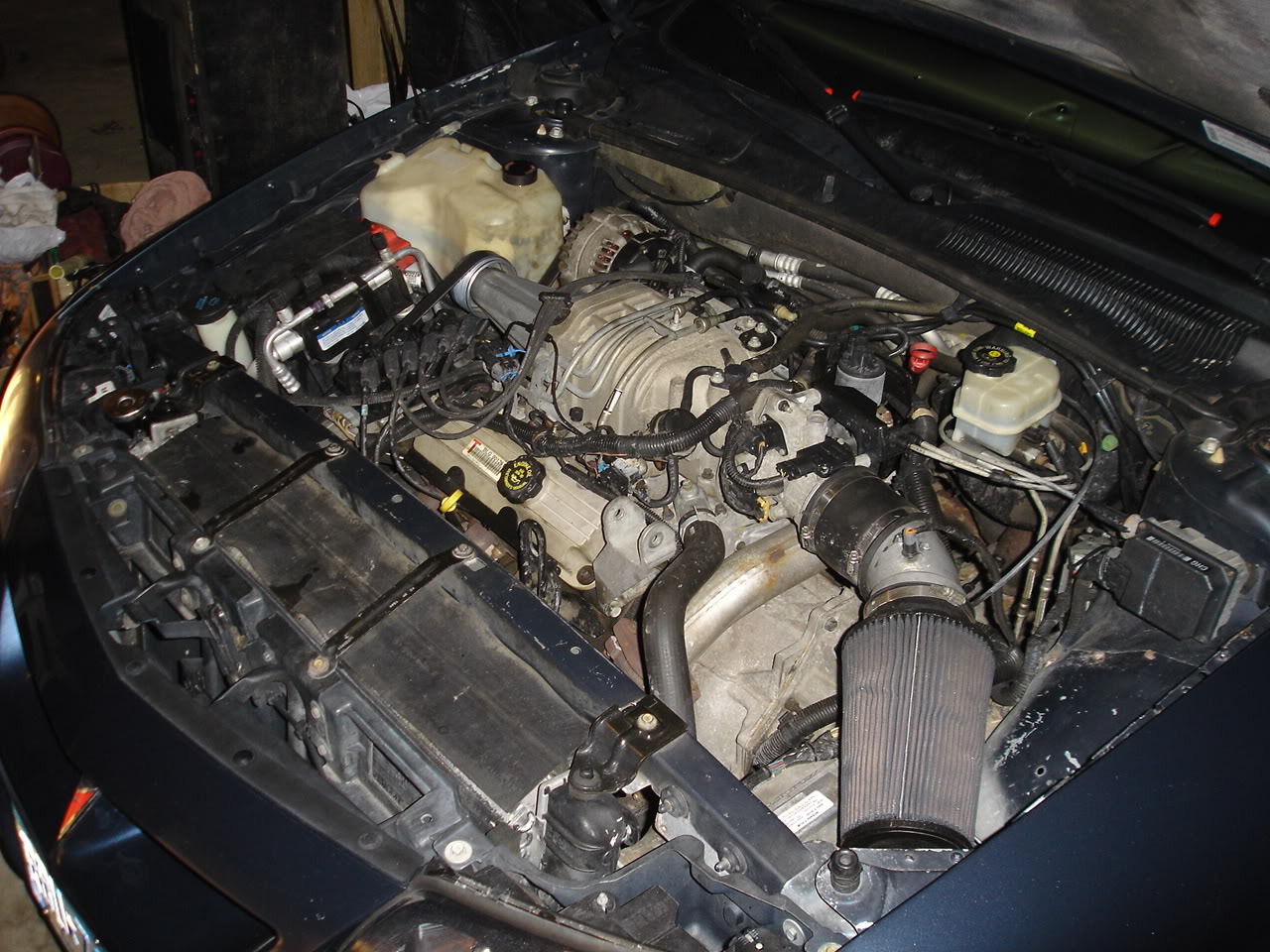

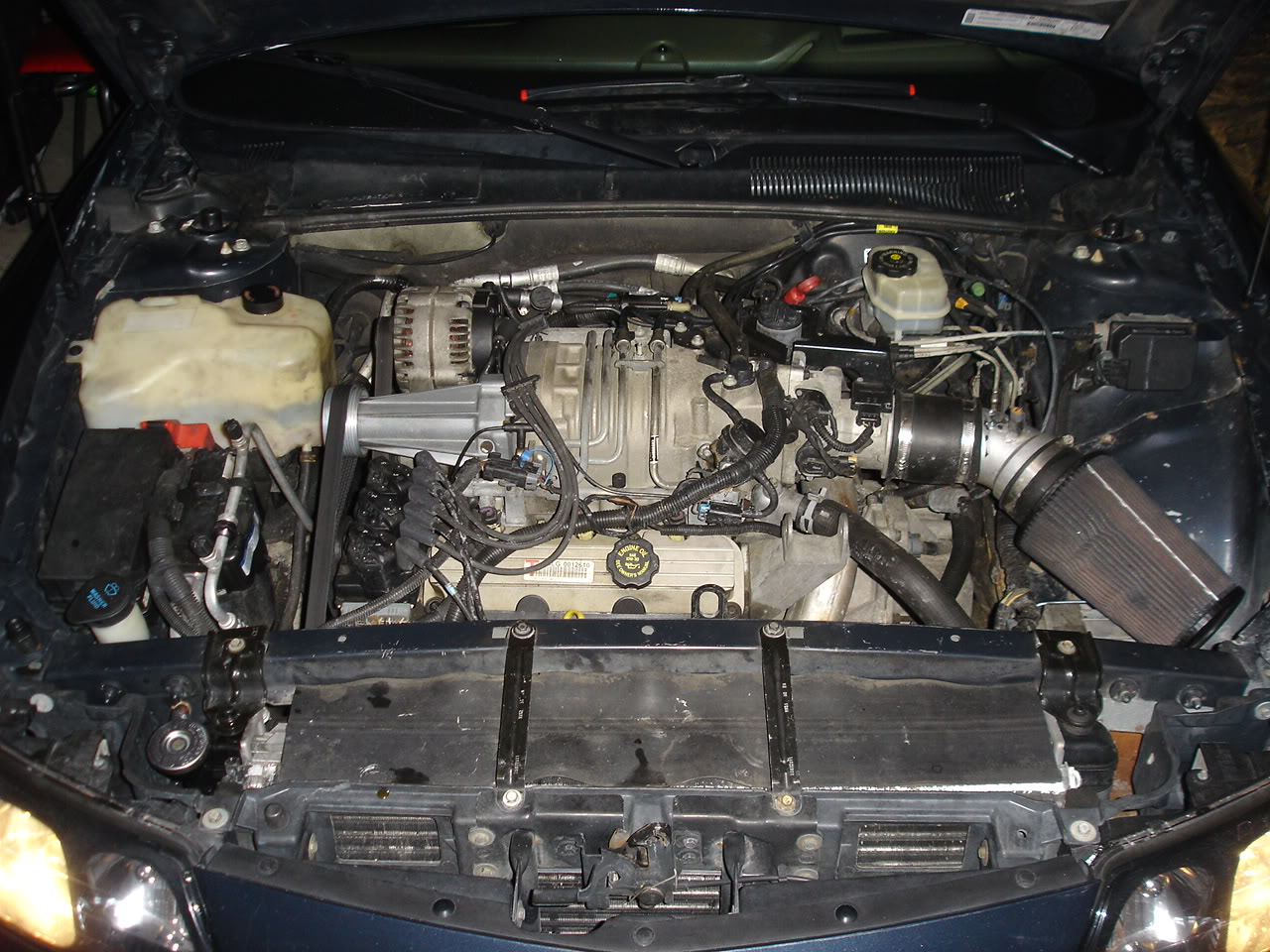

and some PRECLEAN shots...

yes i know it needs major help!

Name:  DSC08821.jpg
Views: 0
Size:  247.5 KB
Name:  DSC08822.jpg
Views: 0
Size:  244.4 KB
Name:  DSC08823.jpg
Views: 0
Size:  186.4 KB

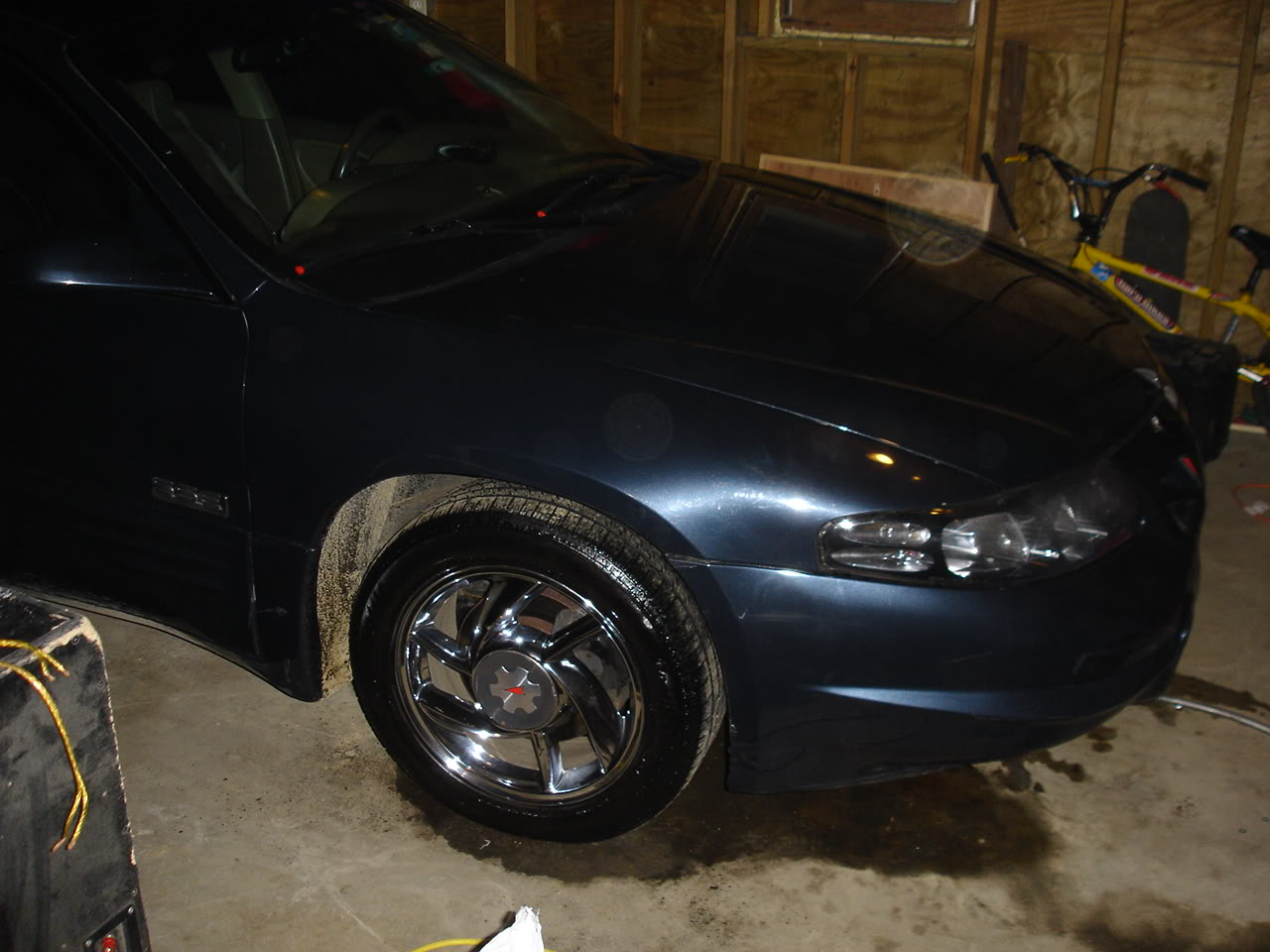

flash makes the fenderwells looks so gross... but damn the car was looking good in the garage...

of course it rained like a bitch today
Name:  DSC08831.jpg
Views: 0
Size:  127.7 KB
harofreak00 is offline   Reply With Quote
