Default WARNING- Do not use HELP! section EGR gaskets (now with pix)

I would say about 4 months ago I replaced the EGR gasket on my '94 because I thought it needed it based on what I could see (it was chipped in several places). The EGR gaskets in the HELP! section were cheap enough, so I picked them up and used the one I needed. (These gaskets also have a screen on themto keep debris from entering the intake stream).

About a month ago I noticed a hissing sound coming from around that area, though I could not locate it. So I let it go, thinking it was air from the intake tube that I was hearing. It was also about this time my fuel mileage started to go to...well, h3LL. Yesterday, after changing the oil AND doing a coolant flush (went with Prestone LL), the hissing sound got worse. So, I took some TB cleaner, spray all around that area....and the engine stutters and shuts off. Ah-hah! So I thought...maybe I didn't tighten the EGR down enough. Nope...all tight. "Nah....it couldn't be. I just replaced the gasket..."

I'll post pics of it later. But rest assured there was nothing left of that gasket but the metal screen.

I HAD to get another HELP! gasket for the interim. I ordered a good one...same type of material exhaust manifold gaskets use...and should be here today or Monday.

And that'* my story.
sandrock is offline   Reply With Quote
Old 11-10-2007, 02:57 PM   #2
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: CT
Posts: 2,099
Thanks: 0
Thanked 1 Time in 1 Post
SSEBONNE4EVA is on a distinguished road
Default help

Their rubber components are crap also. Tried to use one of their 5/8 heater hose bypass plugs on our Supra Turbo coolant port and the thing dried up and cracked in about 6 mo. time.
SSEBONNE4EVA is offline   Reply With Quote
Old 11-10-2007, 03:13 PM   #3
Member
Posts like a V-Tak

Join Date: Nov 2007
Location: Utica NY
Posts: 75
Thanks: 0
Thanked 0 Times in 0 Posts
PalermoCorey90 is on a distinguished road
Default

were did u get yours from i kinda need to order one
PalermoCorey90 is offline   Reply With Quote
Old 11-10-2007, 04:08 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Quote:
Originally Posted by PalermoCorey90
were did u get yours from i kinda need to order one
Advance Auto can get them. I imagine Autozone can get them too...but I don't have one local to me. And it should be of much better quality than the aisle has to offer.
sandrock is offline   Reply With Quote
Old 11-10-2007, 09:02 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Got the pics taken..

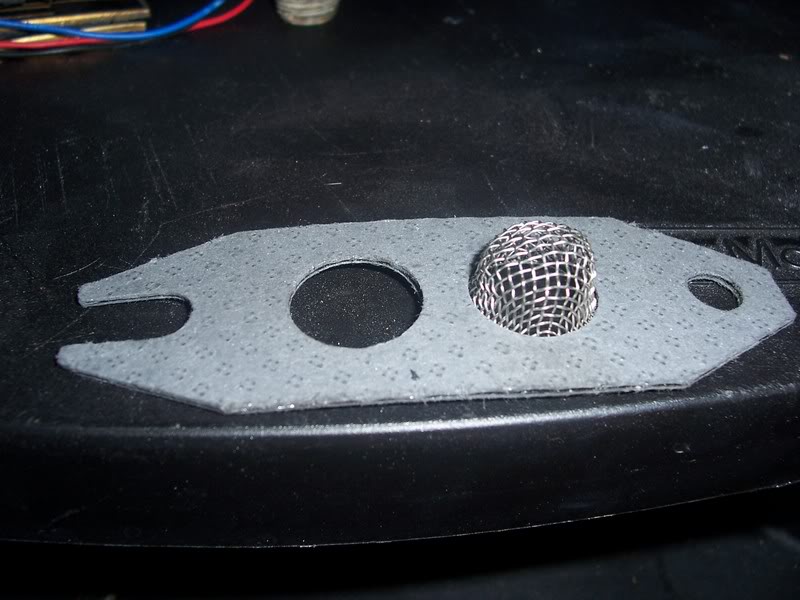

This is one of the gaskets the kit comes with. I think this one is for the Ford models, but the gasket material is the same, along with the addition of the debris screen.
Name:  100_3103.jpg
Views: 2
Size:  69.2 KB

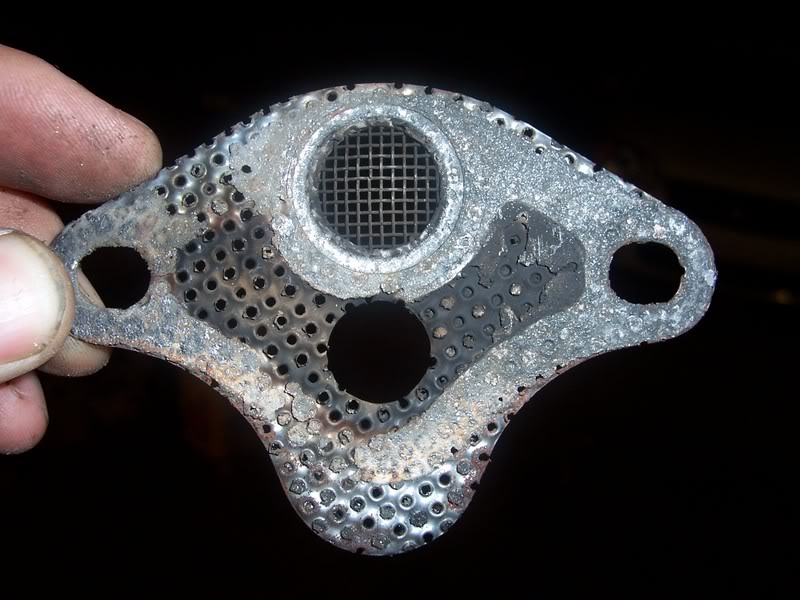

This is what the GM gasket looks like after about 4 months and 10k miles
Name:  100_3107.jpg
Views: 2
Size:  87.1 KB

Nothing left of it. Talk about causing one helluva vac leak
sandrock is offline   Reply With Quote
Old 11-10-2007, 09:36 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You started with clean surfaces and there are no cracks or problems? I'd think something was causing that gasket to go like that.
