Default Aluminum Frame LIM gaskets for Series II pix (56k warning)

Ben (Bignews1) stopped by today with a new set of Aluminum frame lower intake manifold gaskets he just purchased from our local GM dealer for $59 + tax.

With any luck, this is the solution we have been long awaiting. I hope with these gaskets, a reduced diameter stovepipe, and a sleeved upper, that the average L-36 can be restored to become as reliable and long-lived as its predecessors.

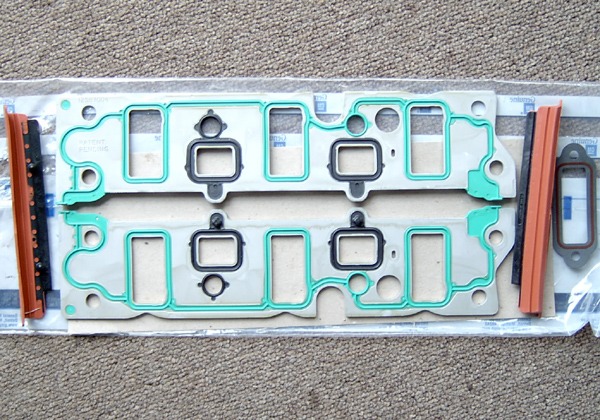

Name:  allimgsktparts.jpg
Views: 13
Size:  113.4 KB

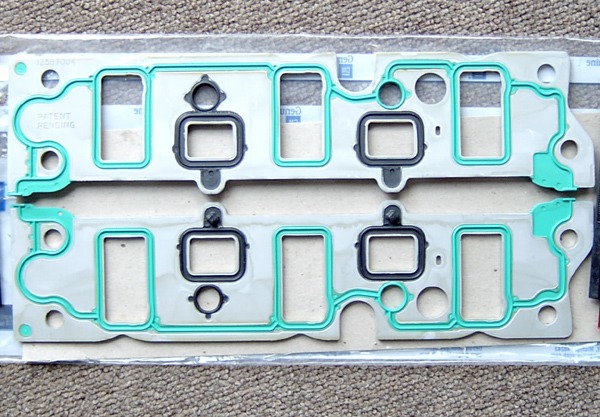

Name:  allimgsktclose2.jpg
Views: 9
Size:  95.4 KB

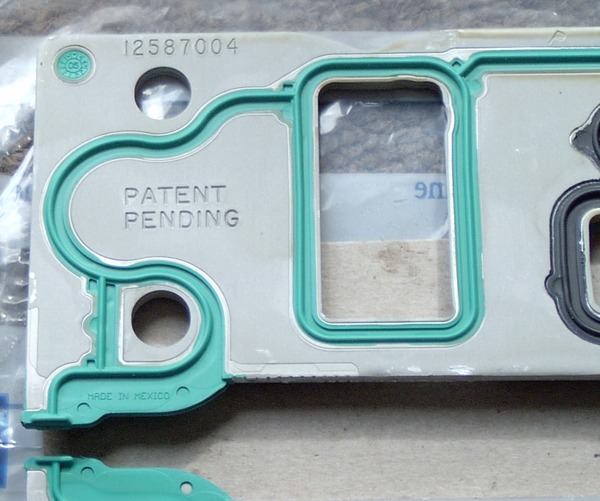

Name:  allimgsktstamp.jpg
Views: 12
Size:  76.4 KB

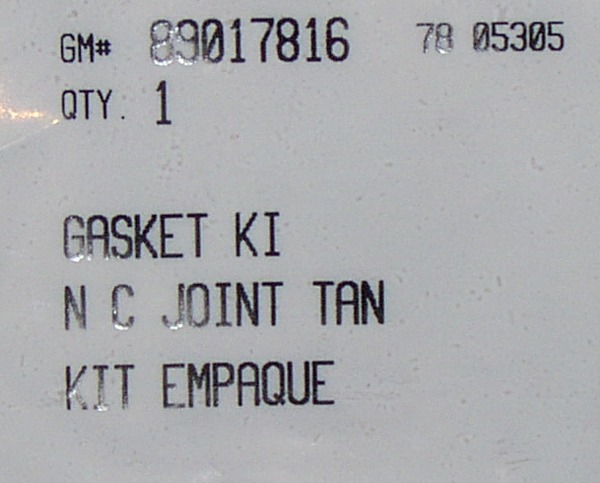

Name:  allimgsktgmpartno.jpg
Views: 18
Size:  57.3 KB

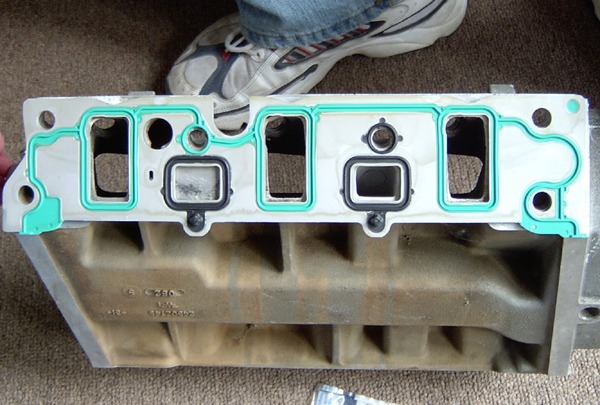

I hope these will fit any Series II engine. Ben bought them for his '97, but they seem to be a perfect fit for my '95 too.
Name:  allimgsktw95.jpg
Views: 12
Size:  82.5 KB

Can't remember these pins. Do all Series IIs have locating pins on the cylinder heads?
bill buttermore is offline   Reply With Quote
Old 03-06-2006, 07:25 PM   #2
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

Those pics turned out pretty well, Bill. Good work!
big_news_1 is offline   Reply With Quote
Old 03-06-2006, 09:04 PM   #3
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

GMPartsdirect.com has the part number up for $34.01.
Bob Dillon is offline   Reply With Quote
Old 03-06-2006, 09:13 PM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

Yeah, I know. But I need these for next weekend, and GMPD has a reputation for taking their sweet time to ship orders. And when you factor in the GMPD shipping charges (which seem steep to me), I don't think $59 is a huge ripoff.

But even more importantly, this is the first time I've actually seen these gaskets to verify their existence. I'm glad GM updated the design, and I'm looking forward to installing them with my newly sleeved UIM.
big_news_1 is offline   Reply With Quote
Old 03-06-2006, 09:17 PM   #5
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

Speaking of GM parts Direct, I just logged on to see where my new o2 sensor is and they had a note up saying they were moving and it'* going to be a while before they ship it.

Naturally, there wasn't any such note when I ordered. That kinda pisses me off.
Bob Dillon is offline   Reply With Quote
Old 03-06-2006, 09:19 PM   #6
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

Quote:
Originally Posted by Bob Dillon
Speaking of GM parts Direct, I just logged on to see where my new o2 sensor is and they had a note up saying they were moving and it'* going to be a while before they ship it.

Naturally, there wasn't any such note when I ordered. That kinda pisses me off.
Yeah.. same thing happened to me. I ordered a set of exhaust tips 3 weeks ago, just got a ship notice an hour ago.
Mortehl is offline   Reply With Quote
Old 03-06-2006, 09:20 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Awesome... we have confirmed pair of gaskets and part number...
BillBoost37 is offline   Reply With Quote
Old 03-06-2006, 09:24 PM   #8
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

we need to take the time to Thank both Bill Buttermore and BigNews1

Thankyou to Bill Buttermore for the constant cahnages and corrections to the Upperintake Techinfo which I will install the correction to tomorrow

And a big thanks to Bignews1 for the info on the revised alluminum gaskets...


Thanks guys...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-06-2006, 10:40 PM   #9
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Glendale, AZ
Posts: 3,459
Thanks: 0
Thanked 1 Time in 1 Post
big_news_1 is on a distinguished road
Default

No problem.... money well spent. I'm glad I could share the info with my fellow Bonnevillians
big_news_1 is offline   Reply With Quote
Old 03-06-2006, 10:46 PM   #10
Senior Member
Certified GM nut

Join Date: Feb 2004
Location: MI
Posts: 2,246
Thanks: 0
Thanked 0 Times in 0 Posts
Logan is on a distinguished road
Default

So where exactly was it that the old ones failed? (Never seen pics so clear)
