Old 02-07-2006, 10:56 PM   #31
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Once you get all of the pics posted up I will link this thread to Techinfo, so that others can see what you have done and the parts that were used during the repair...

Good luck and let us know how it all goes..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 04-09-2006, 03:28 PM   #32
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default UIM Project questions - *** UPDATED WITH PICS ***

Hi All,

I’m sorry I took so long to follow up. Well my brother and I replaced the upper intake manifold and lower intake manifold gaskets. We did the job last Saturday. It took all day. We also replaced the valve cover gaskets and the thermostat as well. My brother did most of the work. I was just a pair of helping hands. Here are the parts that we used:

Pipe Assembly (Elbow coolant pipe) GM Part # 24503423
Gasket Kit (Lower Intake manifold gaskets) GM Part # 89017400
Dorman Intake Manifold Advance Auto Parts # 615-180
Fel Pro Fuel Injector O- Ring Set Advance Auto Parts# ES70599
Fel Pro Valve Cover Gaskets Advance Auto Parts# VS50080R
Fel Pro Valve Cover Grommet Set Advance Auto Parts# ES72833

We only ran into one problem. Part of one end of the elbow pipe broke off and was lodged in the lower intake manifold. My brother had a dental pick and was able to pull it out in a couple of minutes. Oh yes, the PCV O-ring was missing from my Dorman kit, so we just used the old one.

Thanks again for all of the help,
LeifW

Here are the pictures with captions below each picture.
Name:  B1.jpg
Views: 35
Size:  57.1 KB

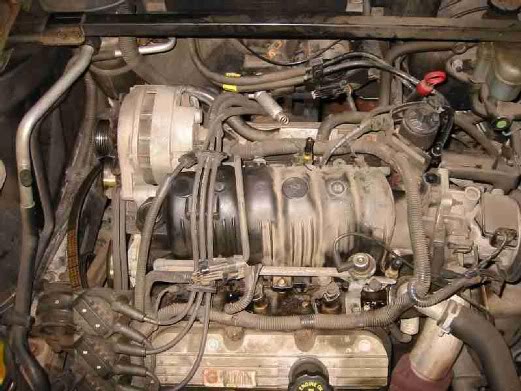

Here’* the patient. A 3800 series engine with 134,000 miles on it. The symptoms: using ˝ liter of coolant every 600 miles. You can also see little puddles of coolant in the little nooks and crannies between the valve cover and the plastic upper intake manifold.


Name:  B2.jpg
Views: 37
Size:  56.7 KB
After the spark plug wires, coil packs, fuel rail and alternator have been removed.


Name:  B3.jpg
Views: 45
Size:  71.5 KB

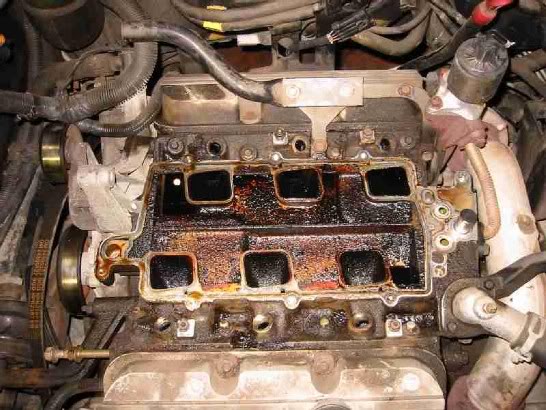

After the upper intake manifold and gasket have been removed. The top of the lower intake manifold was wet with coolant.



After the lower intake manifold has been removed. Notice the horrible state of the lower intake manifold gaskets. They literally crumbled off in our hands.


Name:  B5.jpg
Views: 39
Size:  48.3 KB

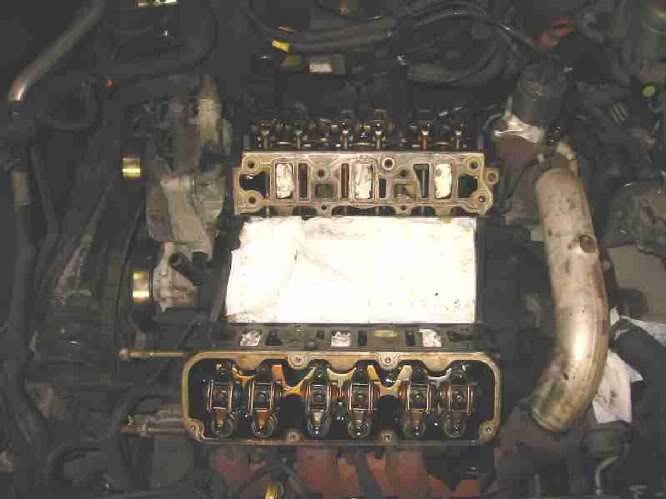

We figured we’d replace the valve cover gaskets as well. Here’* a picture with the covers removed. We put paper towels over the balance shaft and various openings to prevent debris from falling in.


Name:  B6.jpg
Views: 33
Size:  60.0 KB

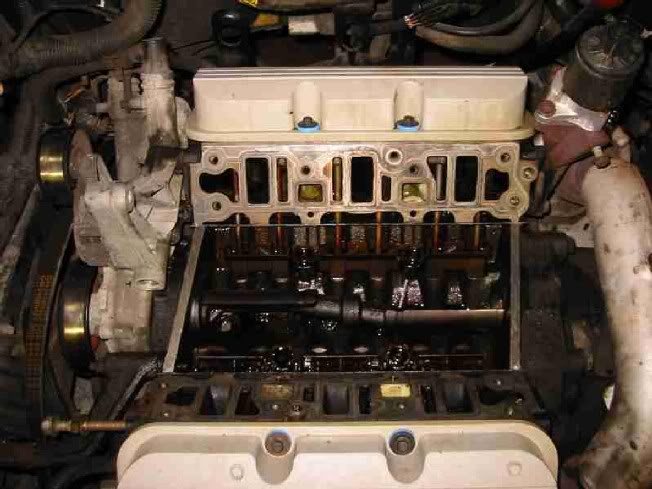

We cleaned all the surfaces that the gaskets would contact. Lots of scraping and cleaning solvent. In this picture the cleaned valve covers with the new gaskets have been installed. You can also see the new valve cover grommets (they’re blue).


Name:  B7.jpg
Views: 35
Size:  60.8 KB
The new lower intake manifold gaskets, valley gaskets and coolant elbow pipe have been installed. We put a little dab of silicone glue at the end of each valley gasket where it contacted the lower intake manifold gaskets


Name:  B8.jpg
Views: 52
Size:  53.9 KB

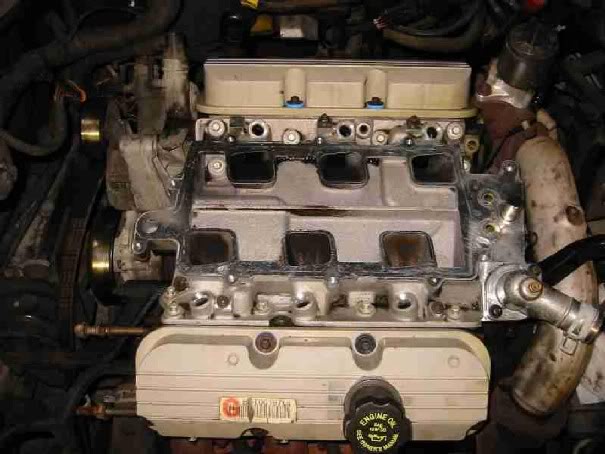

The cleaned and prepped lower intake manifold has been installed. We also installed a new thermostat.


Name:  B9.jpg
Views: 38
Size:  56.6 KB

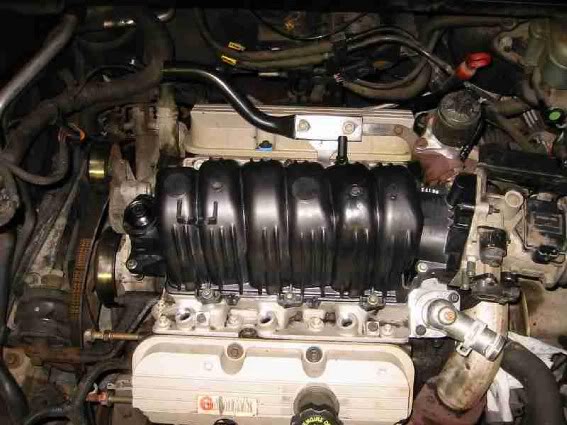

The new Dorman upper intake manifold and gasket have been installed.


Name:  B10.jpg
Views: 40
Size:  62.5 KB

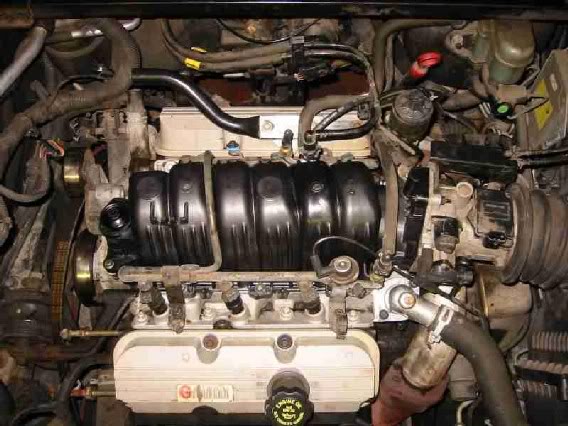

The fuel rail has been installed.


Name:  B11.jpg
Views: 33
Size:  62.8 KB

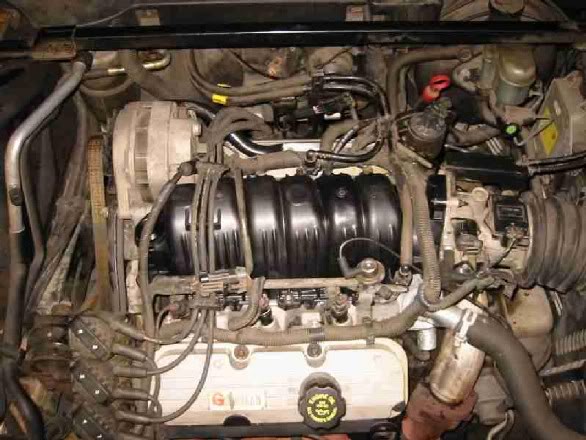

The coil packs, spark plug wires and alternator have been installed.
LeifW is offline   Reply With Quote
Old 04-10-2006, 12:31 AM   #33
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Good work Leif, that deserved its own thread though, nice and clean must feel good
jdq is offline   Reply With Quote
Old 04-10-2006, 10:02 AM   #34
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Definitely a good step-by-step pictorial! Kudos!
lash is offline   Reply With Quote
Old 04-10-2006, 07:43 PM   #35
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

Thanks for the good write up Lief!

I do have a question upon reading this thread, whats the plenum? I always thought it was th uim.
popatim is offline   Reply With Quote
Old 04-11-2006, 11:48 AM   #36
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default

Quote:
Originally Posted by jdq
Good work Leif, that deserved its own thread though, nice and clean must feel good
Yeah, I probably should've put the post in it'* own thread. And yes, it does feel good. When the car was using the coolant, I felt I was driving a ticking time bomb waiting to go off. It'* such a relief to have the problem fixed. I'm really enjoying driving the car now.


LeifW
LeifW is offline   Reply With Quote
Old 04-11-2006, 02:03 PM   #37
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Only thing left now is a good cleaning for the rest of the motor. A little degreaser will do right by it.
BillBoost37 is offline   Reply With Quote
Old 04-12-2006, 10:38 AM   #38
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2005
Location: New Canaan, CT
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
LeifW is on a distinguished road
Default

Quote:
Originally Posted by popatim
Thanks for the good write up Lief!

I do have a question upon reading this thread, whats the plenum? I always thought it was th uim.

Someone else can correct me if I'm wrong, but I believe the plenum and the UIM are the same thing.

LeifW
