Default The SSExi project v3.5

Yep, here we go again. Because this is the same block, it only goes to v3.5 The problem is still there. I have replaced every last part but one, and that is the part that is coming out. The cam is all that is left. So here we go, again.

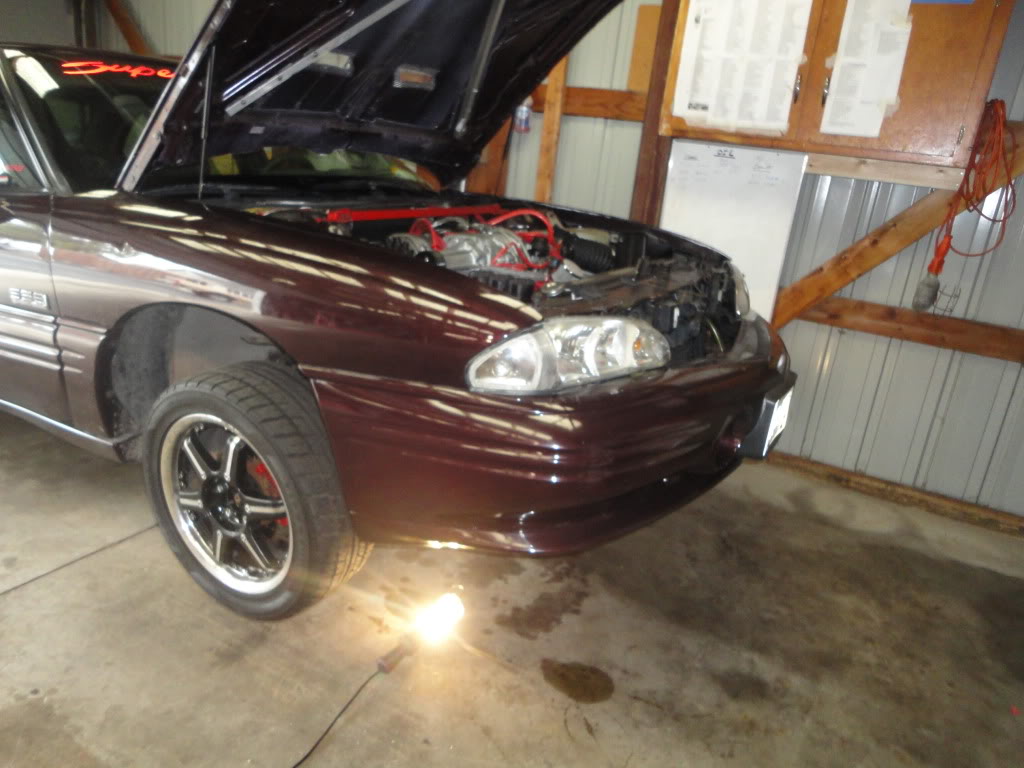

It starts.
Name:  DSC04019.jpg
Views: 11
Size:  100.3 KB

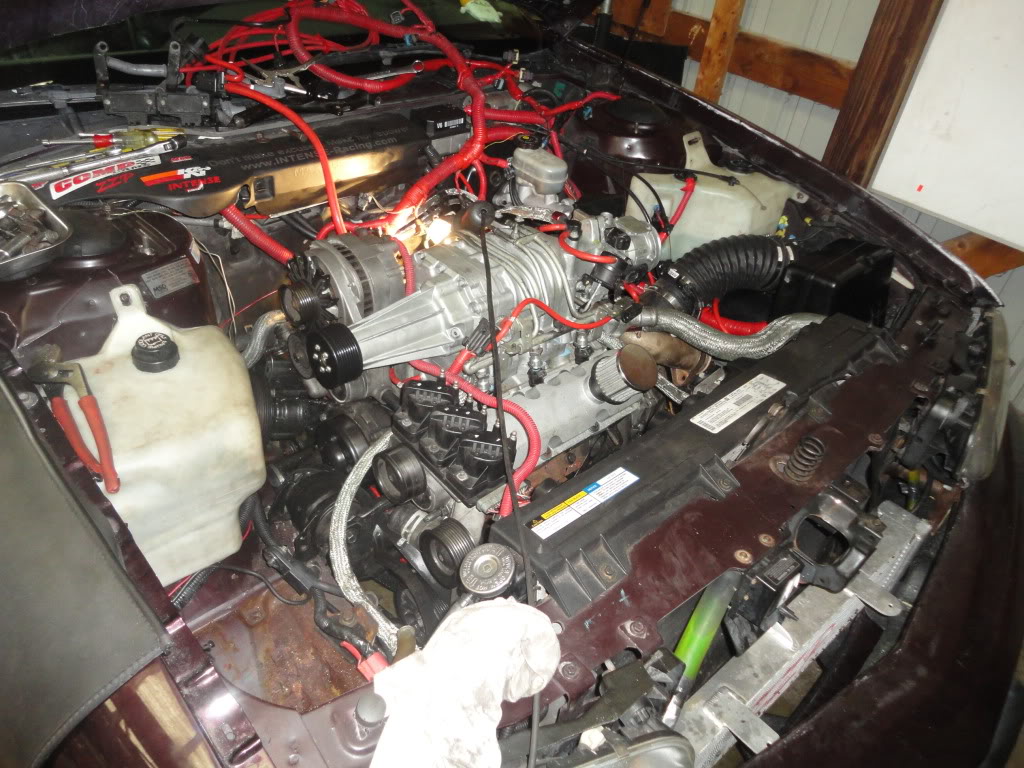

About a hour and a half of work, perhaps a bit more and it'* all ready to be lifted out. All that'* left is the right motor mount, and 4 bolts on the bell housing.
Name:  DSC04020.jpg
Views: 10
Size:  169.7 KB

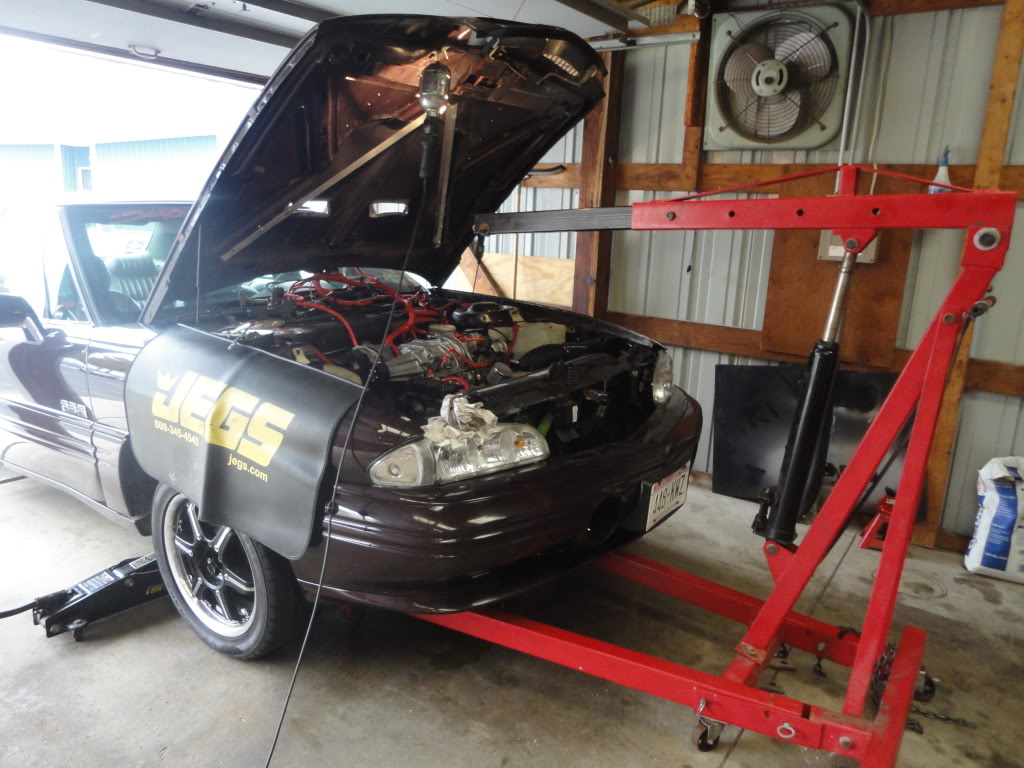

You know the drill, assume the position.
Name:  DSC04021.jpg
Views: 9
Size:  128.4 KB

Popped right out with very little effort.
Name:  DSC04022.jpg
Views: 9
Size:  159.8 KB

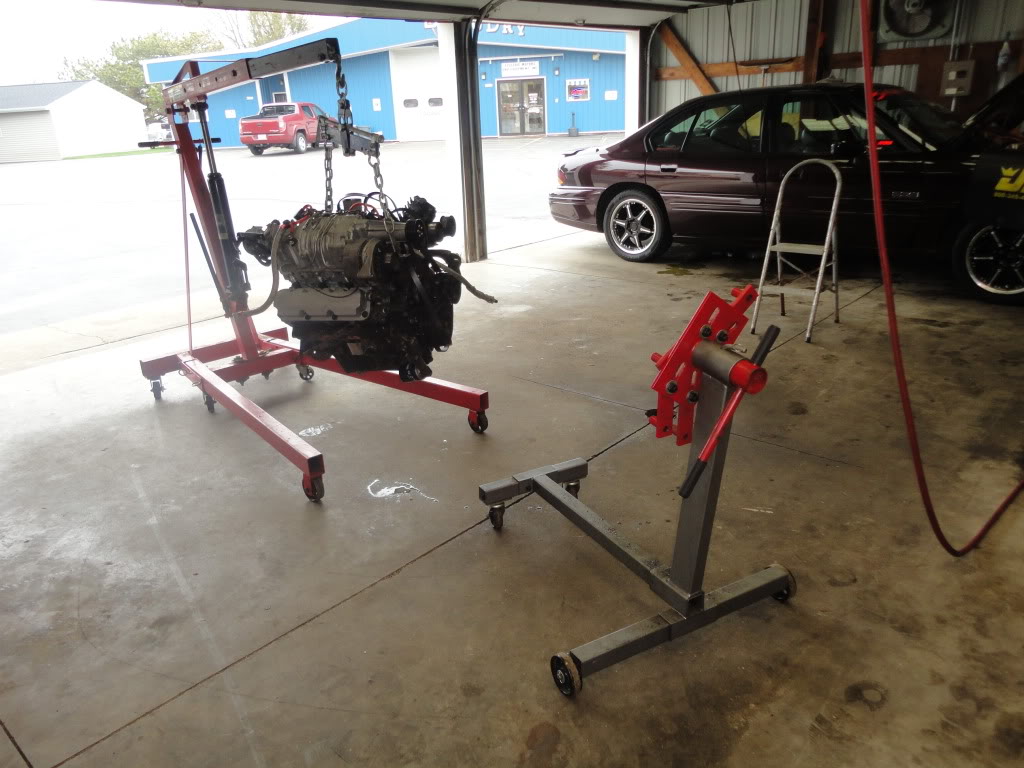

Just need to mount on the stand.
Name:  DSC04023.jpg
Views: 12
Size:  119.1 KB

All done. Total time from start to mount was 3 hours. And that was stopping to eat lunch.
Name:  DSC04024.jpg
Views: 11
Size:  71.8 KB


The only problems I had was the diff to engine mount. Because I only have one working eye I was having a hard time seeing in that area. Also, had a very hard time putting the socket on things like bolts and spark plugs, depth perception is really effected. And getting one bolt off the header crossover was a problem. Should have hit that when I was under the car.
Danthurs is offline   Reply With Quote
Old 05-13-2011, 03:32 PM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Not bad for a feller with one eye LOL nice work dan sad to see ya have to pull it again
sseidriver97 is offline   Reply With Quote
Old 05-13-2011, 03:33 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You know what, I hardly get dirty anymore. The only problem is I think I'm wearing out all my bolts.
Danthurs is offline   Reply With Quote
Old 05-13-2011, 03:36 PM   #4
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Lol i bet you are..Might wanna chase some ogf the threads make sure their all okay LOL
Shouldnt this be like with the other project thread lol
sseidriver97 is offline   Reply With Quote
Old 05-13-2011, 03:37 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I don't even know what project this is anymore.
Danthurs is offline   Reply With Quote
Old 05-13-2011, 03:38 PM   #6
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

lol i have no clue why you pulled the motor out..I saw btso n FB but couldnt quite peice it together
sseidriver97 is offline   Reply With Quote
Old 05-13-2011, 06:04 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Took me all of a hour to rip it all the way down.
Name:  DSC04025.jpg
Views: 11
Size:  167.2 KB

Parts all lined up and waiting to be put back on.
Name:  DSC04026.jpg
Views: 10
Size:  129.8 KB

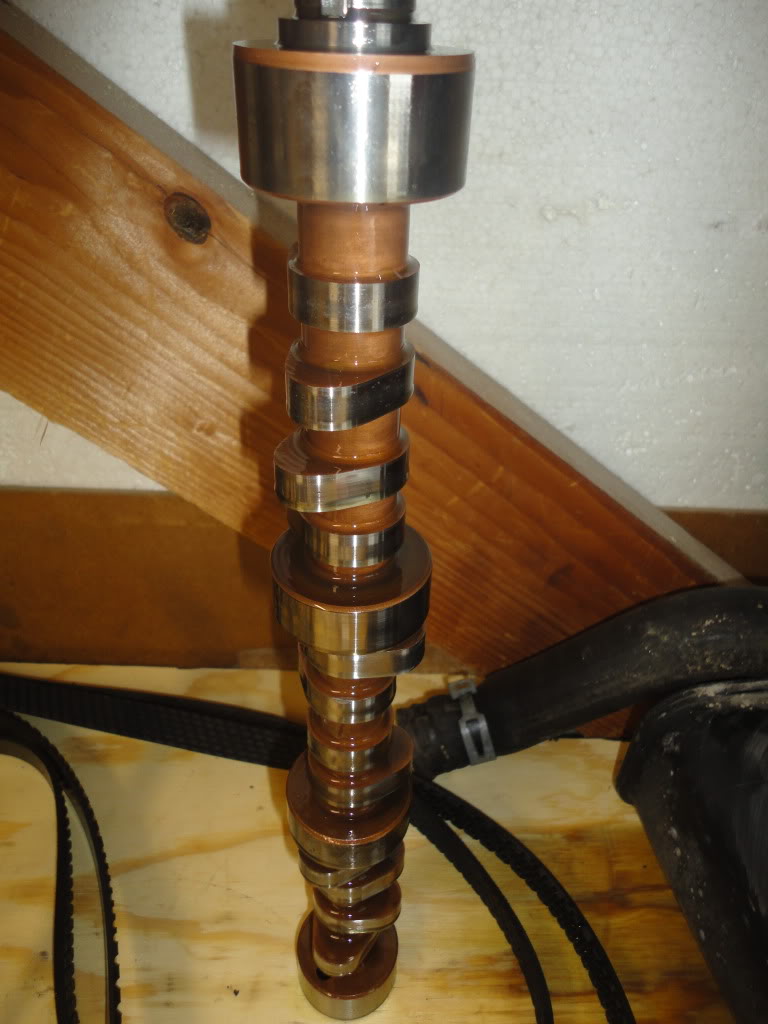

This is what I believe to be the offending part. I looked it over real close, but see nothing with my one good eye.
Name:  DSC04027.jpg
Views: 9
Size:  86.6 KB

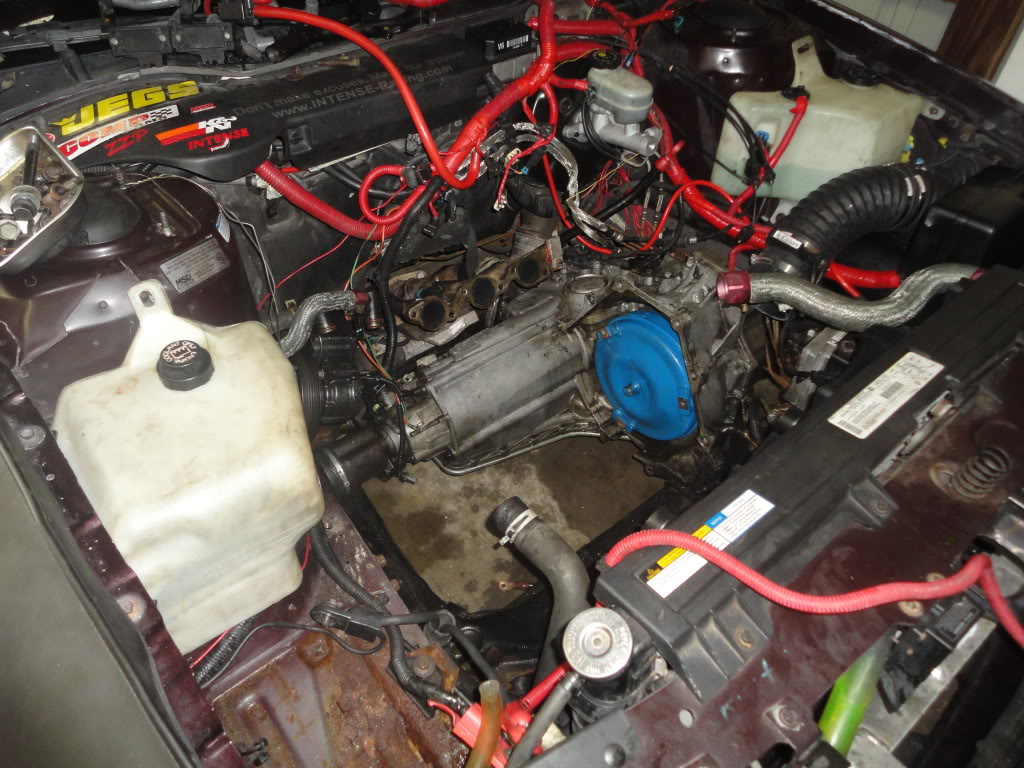

SSExi has looked like this more then as she should this year.
Name:  DSC04028.jpg
Views: 7
Size:  162.7 KB
Danthurs is offline   Reply With Quote
Old 05-13-2011, 06:11 PM   #8
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

So thats the reason behind all this is the cam?
sseidriver97 is offline   Reply With Quote
Old 05-13-2011, 06:35 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I sure hope so. Because I have replaced every other part that could cause the problems I'm having.

If you look at this scan, you can see how I have KR each time I give it a little gas, it'* there each time. And I get up to 14.9* of KR at times. 3 engines, same KR, same area, same conditions.

Name:  KR.jpg
Views: 11
Size:  169.4 KB

I have changed the tune from my custom tune, to a intense box tune, to a stock L67 tune, to a stock L26 tune, no change. I have replaced the harmonic balancer, no change, I replaced the flex plate, no change, I replaced lifters and push rods, I have changed heads, I have used 3 different short blocks, each with it'* own set of pistons and crank. Each engine has had all new sensors. No change. Nothing on the top of the engine, supercharger and intercooler can do this, so that'* not on the list. The transmission can eat it'* self and not destroy a engine. So that leaves one last part that has been transfered from all 3 engines, and that'* the cam. I only hope the short time the engine has been run has not damaged the bearings. That'* a wait and see thing. It is possible the cam is bent, or cracked, or has been dropped. I just don't know. But it'* not going back in my engine. Once it'* back up and running, and if the problem is gone, I will know, the cam was the problem. If the problem is still there, then I'm at a total lose.
Danthurs is offline   Reply With Quote
Old 05-13-2011, 07:43 PM   #10
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Looks like a normal used cam to me. As expected, there'* a loss of luster on each lobe where it contacts the lifters, but like my stock cam, there'* no wear beyond the finish as far as I can see.

The only thing that looks off is that the spaces in between each lobe are brown. Not that I'd expect a color to induce knock, mind you.

I'm guessing it'* false knock from vibrations caused by a loose bolt, worn mount, improperly-torqued bolt, or something that nobody thinks to check.
