Old 02-10-2010, 11:47 PM   #51
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by sgp358 View Post
When we do this at work, we never remove any brake parts, but we have the car on a lift. I'm sure doing this the way you did it made it much easier to get at everything.
Yeah, that rotor gets in the way, and its only an additional 3-4 minutes to get the brake parts off. Makes it a lot easier overall.
xtremerevolution is offline   Reply With Quote
Old 02-13-2010, 12:24 AM   #52
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

As it stands, the side cover is back on, the subframe is lifted and bolted back up, and I coincidentally noticed that I need a new balljoint as the rubber boot protecting it was completely shredded and it won't last much longer like that.

In any case, here'* my progress.

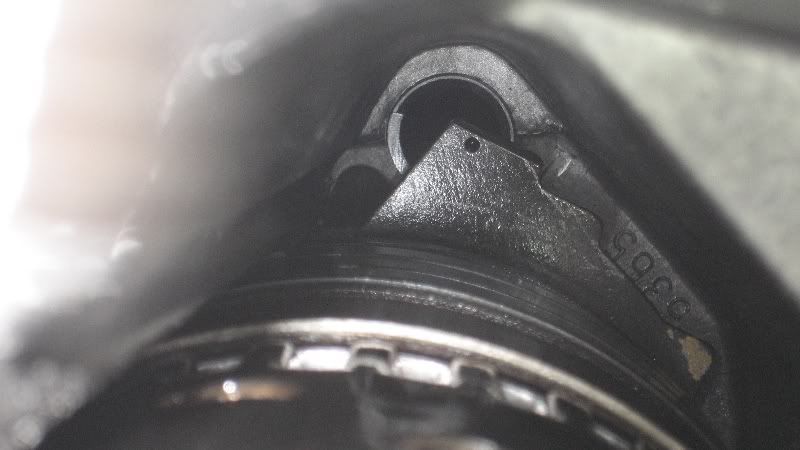

That plate probably prevents the car from being pushed into park while its moving. It can be pushed down fairly easily with the rod as you're inserting it. I first had issues because I thought it was supposed to be rotated.
Name:  IMG_3465-1.jpg
Views: 48
Size:  46.0 KB

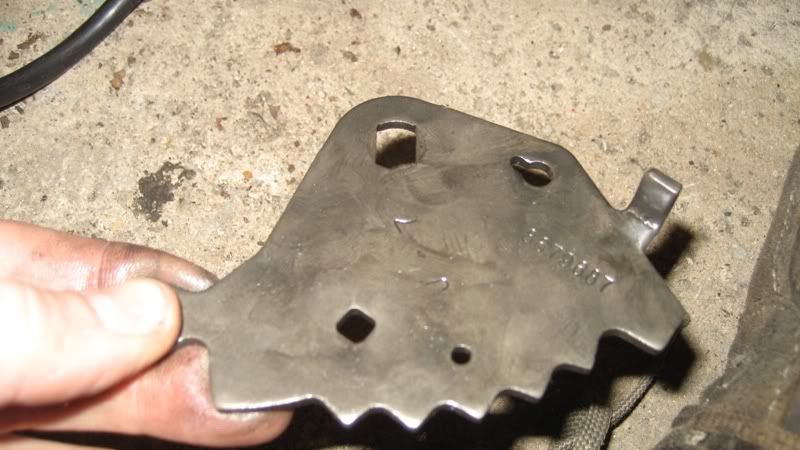

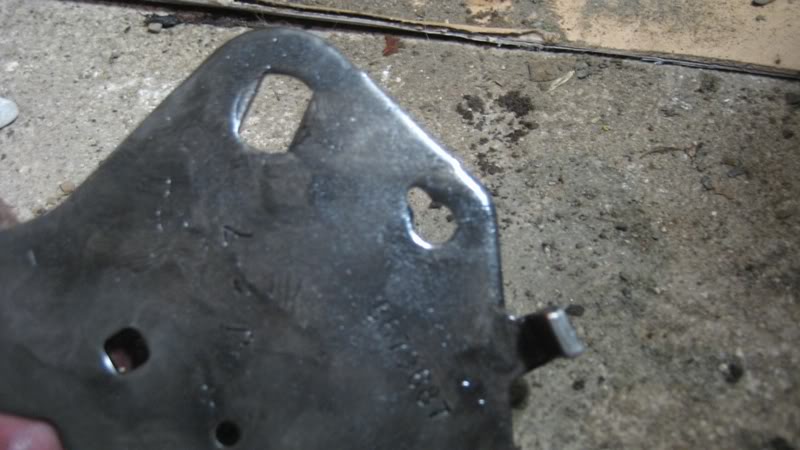

Shifter linkage plate. The second picture shows the notch that'* open to allow the parking pawl rod to fit through.
Name:  IMG_3466.jpg
Views: 49
Size:  65.4 KB
Name:  IMG_3469.jpg
Views: 45
Size:  55.0 KB


Here'* the plate bolted back up and the pawl inserted. This part took me 1 hour. I've forgotten that when I work late at night, I sometimes forget the stupidest things, such as the direction in which you're supposted to rotate a nut to screw it on. I was trying to screw that 15mm nut on in reverse. :facepalm:

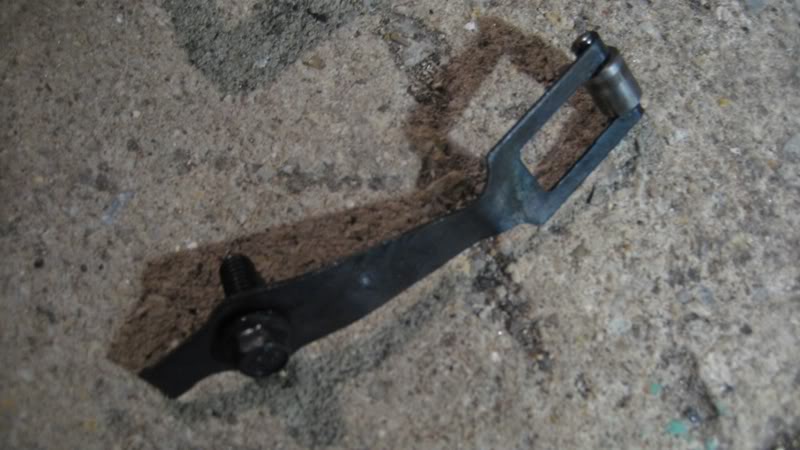

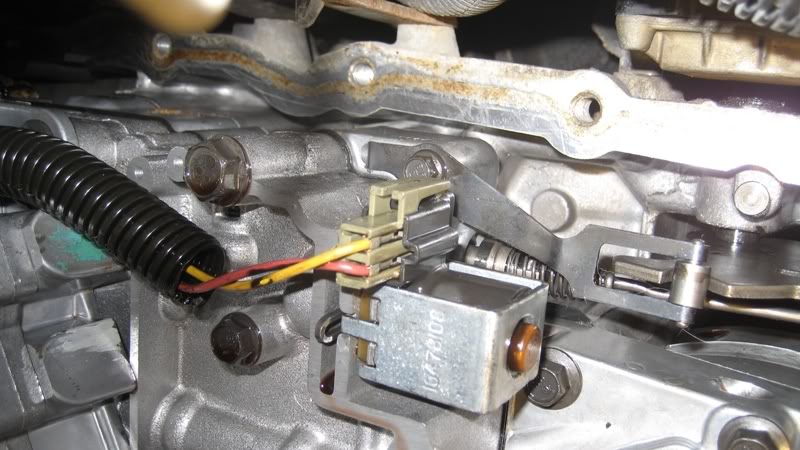

Here'* the spring I mentioned earlier, and the picture of it installed:
Name:  IMG_3476.jpg
Views: 45
Size:  57.6 KB
Name:  IMG_3478.jpg
Views: 47
Size:  78.1 KB

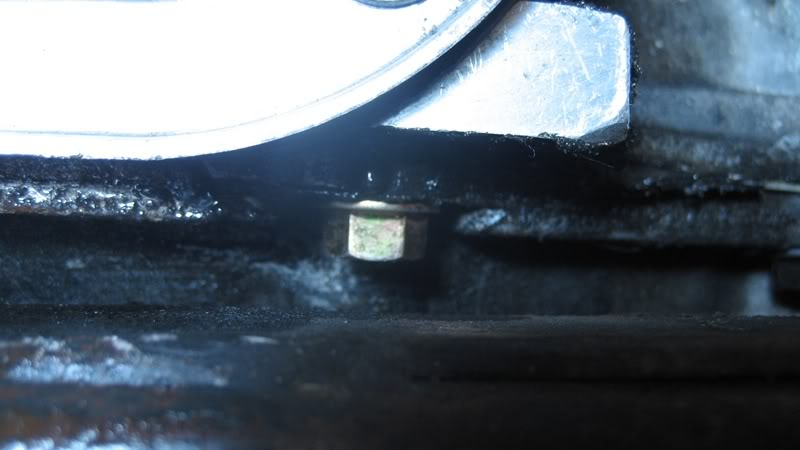

And here'* the clearance you have between the subframe and the transmission at the frontmost bolt (the closest one to the subframe) with the replacement bolts I put in to get rid of those T40 torx bolts:
Name:  IMG_3480.jpg
Views: 50
Size:  38.4 KB
xtremerevolution is offline   Reply With Quote
Old 02-13-2010, 12:28 AM   #53
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Other then removing the side cover, the job looks fairly easy. Think of how much money you saved doing this yourself. Great job.
Danthurs is offline   Reply With Quote
Old 02-13-2010, 12:39 AM   #54
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Other then removing the side cover, the job looks fairly easy. Think of how much money you saved doing this yourself. Great job.
It was fairly easy, although intimidating

All in all here'* my list of costs:

$60 for 8 quarts of Dex VI Trans Fluid
$20 for a transmission filter and gasket
$27 for the parking pawl rod, shipped
$3 for bolts to replace the torx bolts

I called a transmission shop before starting this and they quoted me $800. I called other transmission shops in the area and all of them insisted that they wouldn't do it without pulling the engine, so their price was around the same.

Looks like I saved about $700 doing this myself.

In the process, I replaced a balljoint that seemed like it was going bad, and did an oil change. Car runs perfectly now, and shifts like butter. Dex VI definitely made a huge difference over the 20k mile old Dex III I used previously.
xtremerevolution is offline   Reply With Quote
Old 02-13-2010, 12:41 AM   #55
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That'* a big chunk of change, and only a few hours of time to save it. Not to mention the feeling of doing it yourself.
Danthurs is offline   Reply With Quote
Old 02-13-2010, 12:48 AM   #56
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
That'* a big chunk of change, and only a few hours of time to save it. Not to mention the feeling of doing it yourself.
I'd say the whole job probably took me about 8 hours from start to finish, taking random breaks, wiggling under the car instead of having it on a lift, and spending an hour trying to screw the 15mm nut for the shifter linkage plate backwards. That also includes an oil change.

I'm not afraid to get dirty. So long as I'm making less per hour than I'd have to pay a shop to fix my car, I'll fix it myself.

It felt great to have it done. I went out did some nice WOT runs. The car has been sitting for over 2 months.
xtremerevolution is offline   Reply With Quote
Old 02-13-2010, 12:51 AM   #57
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I know that feeling. Got my car running good today after the cam change. Spent the day tuning and man, did it feel great.
Danthurs is offline   Reply With Quote
Old 02-13-2010, 07:48 AM   #58
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Good job!! I spent all last weekend swapping engines and boy does my body feel it. But its good knowing that I was able to do it myself and save 15% on my car insur.... oh boy. LOL,
Mike is offline   Reply With Quote
Old 02-13-2010, 08:20 AM   #59
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Looks like a job well done.
sgp358 is offline   Reply With Quote
Old 02-27-2010, 04:17 PM   #60
Junior Member

Join Date: Feb 2010
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Thirdgen60 is on a distinguished road
Default

Wow this is an awesome write-up because i am having the exact same problem with my 97 lesabre right now... should be a piece of cake to fix now.
Thirdgen60 is offline   Reply With Quote
