Don't put it in Park!!! Leave it in Neutral.
sgp358 is offline   Reply With Quote
Old 02-04-2010, 02:06 AM   #42
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by sgp358 View Post
Don't put it in Park!!! Leave it in Neutral.
In order to get the parking pawl to disengage, I have to run the shifter up and down from D to 1 very rapidly until I hear a clunk, which signifies the parking pawl disengaging. This always happens as I'm on the 1'* gear position with the shifter. Moving the shifter up to D, Neutral, or Reverse engages the parking pawl, so I can't really leave it in neutral as that wouldn't be solving anything.
xtremerevolution is offline   Reply With Quote
Old 02-08-2010, 02:50 AM   #43
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

I have a friend who'* telling me that I'll need to remove the chain, gears, oil pump, and valve body plate to get the rod out of there. Is that true?

I was under the impression based on a picture shown earlier that I could just disconnect the rod from the shifter linkage plate without needing to remove anything else from the transmission. I'm not looking to do a full transmission rebuild here, just to get that stupid rod out.

Can anyone tell me what I need to do once I get that side cover off? I'd rather not run into any unpleasant surprises.
xtremerevolution is offline   Reply With Quote
Old 02-08-2010, 04:08 AM   #44
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Once you get the side cover off, you can just unbolt the 15mm nut off the linkage shaft and remove the rod. That'* it.
sgp358 is offline   Reply With Quote
Old 02-08-2010, 08:52 PM   #45
Junior Member

Join Date: Feb 2010
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
marc045 is on a distinguished road
Default

Hey guys, I hope you don't mind me butting in. I don't have a Bonneville, but I do have a 95 Park Avenue with the same exact problem. Well same problem but not as bad. I can get it into forward gears the same way Extreme does, and get it into neutral. As soon as I put it into reverse, it locks up. Anyways, my question is, can I change this linkage in my Park Ave with the trans in the car like the Bonny or do I have to pull it completely out? Thanks in advance for your help.
marc045 is offline   Reply With Quote
Old 02-08-2010, 09:27 PM   #46
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

Marc, use the same procedure as the Bonneville.
sgp358 is offline   Reply With Quote
Old 02-08-2010, 09:38 PM   #47
Junior Member

Join Date: Feb 2010
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
marc045 is on a distinguished road
Default

Thanks SGP! I asked the local garage about it today and he said he'd have to pull the tranny to do the job, He quoted me $400 plus parts. I think I'll do the job in my spare time. I should be done before next winter.....
marc045 is offline   Reply With Quote
Old 02-08-2010, 09:41 PM   #48
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

If you need more info, don't be afraid to ask.
sgp358 is offline   Reply With Quote
Old 02-10-2010, 01:41 AM   #49
Senior Member
True Car Nut
Thread Starter

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Damn this is taking a long time.

To start with, whatever GM engineer decided to use 4 T40 Torx bolts to tighten the bottom of the trans side pan needs to be pimp slapped. I nearly stripped them all trying to get them off. Only a copious amount of penetrating lubricant and a lot of hammering got them loose, and I don't dare put them back on.

Here are some pictures of my progress:

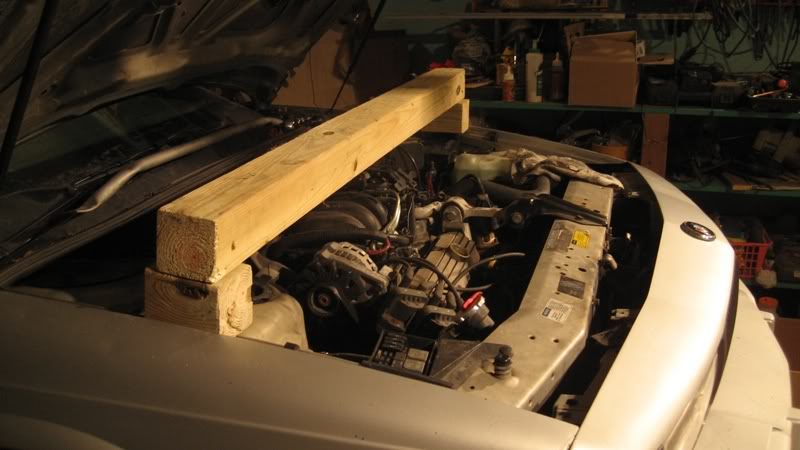

Engine hoist to prepare for subframe drop to change oil pan gasket:
Name:  IMG_3436.jpg
Views: 97
Size:  53.9 KB

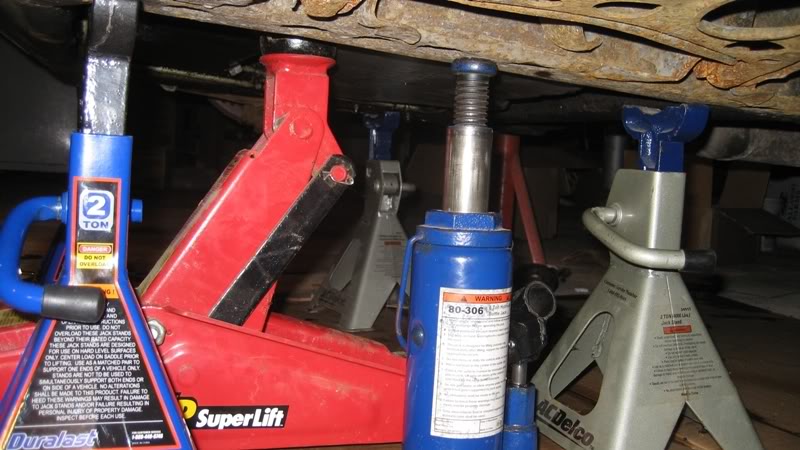

This is how much I dropped the subframe in order to gain access to the side cover:



4 Jackstands for the subframe, and a jack to hold the trans up.
Name:  IMG_3439.jpg
Views: 106
Size:  73.8 KB

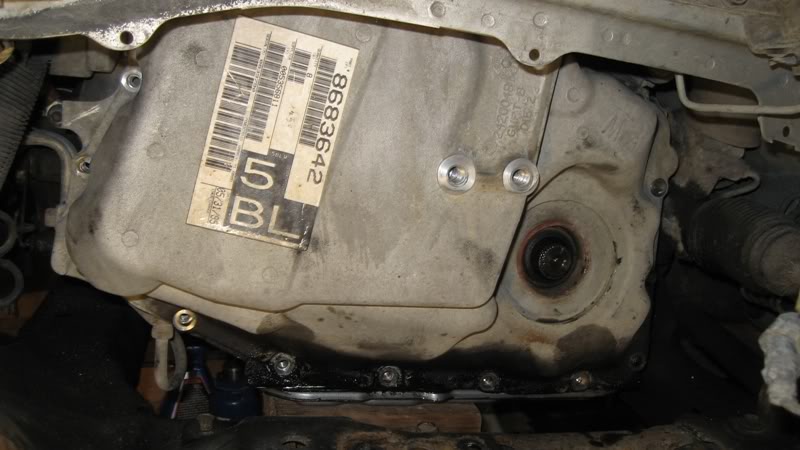

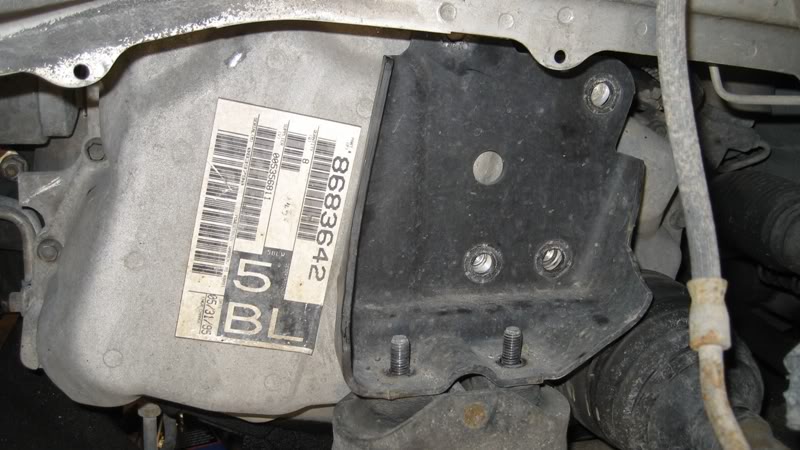

Getting to the side cover was annoying. I had to remove the axle, which I had never done before. Had to call Ken to ask him how. Turns out it was just a matter of prying it off. Fortunately, my trans had been serviced once before, so it came off like butter using a long screwdriver.
Name:  IMG_3440.jpg
Views: 101
Size:  69.2 KB
Name:  IMG_3443.jpg
Views: 98
Size:  57.2 KB

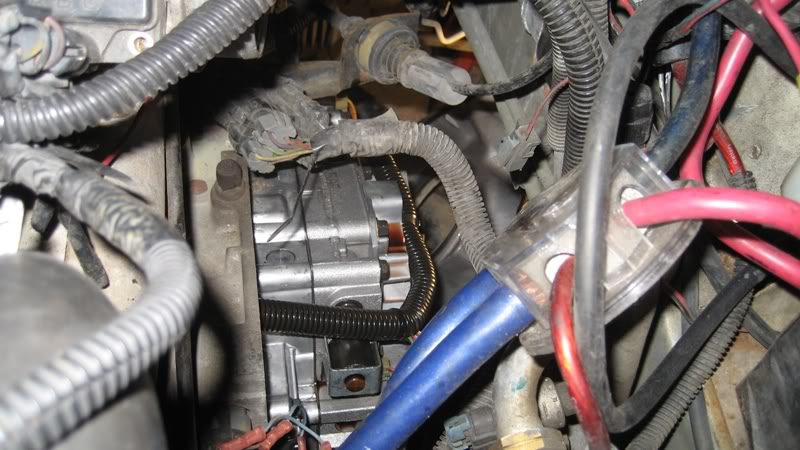

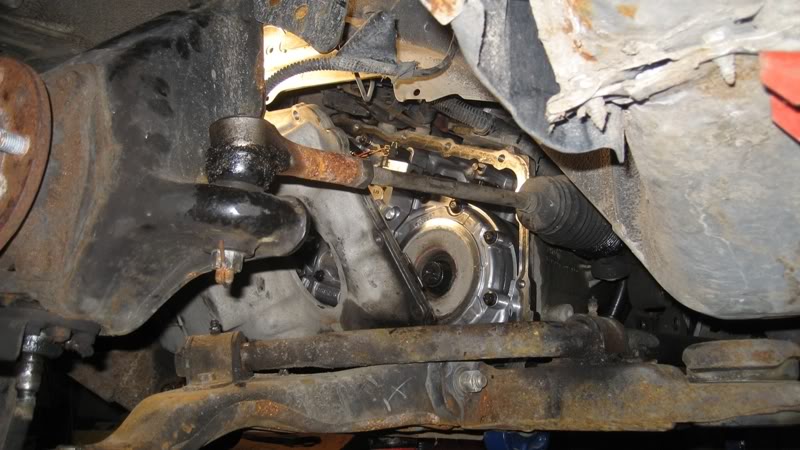

Then I ran into a small problem. I can only drop the engine so far down before the downpipe pushes down on the steering rack, which I don't want. Furthermore, for some strange reason, the subframe would not drop any farther unless I lowered the other side, which I also didn't feel like doing because that would mean I'd have to suspend the engine completely and disconnect the engine mounts. So after a bit of adjusting the height of the trans, I got the side cover moved off the side enough to be able to gain access to my defective part.
Name:  IMG_3449.jpg
Views: 97
Size:  76.3 KB
Name:  IMG_3448.jpg
Views: 141
Size:  73.5 KB

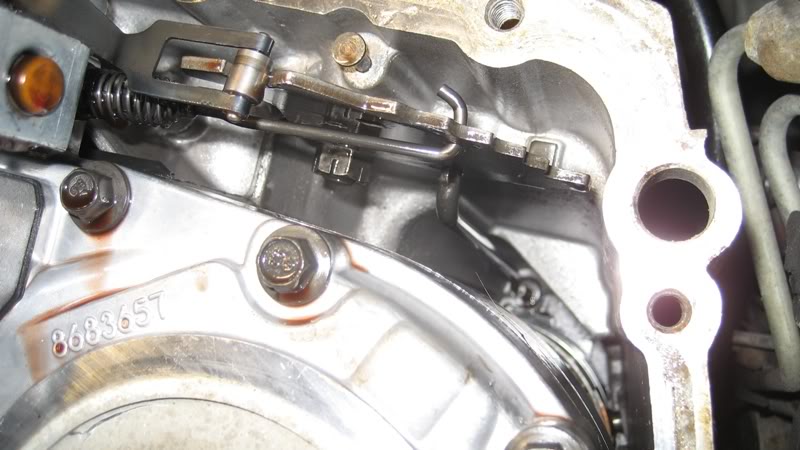

Here you'll see the shifter linkage plate, connected to a rod of sorts for what I presume to be what tells the transmission what gear you want, followed by a a spring that presses against it to keep it in that position, a 15mm nut to hold it up, and of course, the parking pawl rod.
Name:  IMG_3444.jpg
Views: 299
Size:  64.0 KB

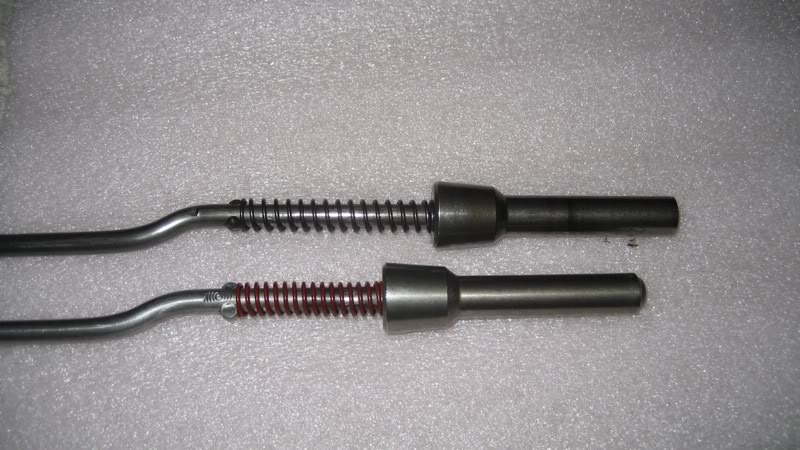

Once I got the spring removed (one 8mm bolt), it was just a matter of turning the plate to disconnect the gear selector rod and the parking pawl rod. The problem was exactly what I had expected it to be. The following picture shows the old rod with the end flush against the spring, with no tension against the end for obvious reasons.
Name:  IMG_3457.jpg
Views: 98
Size:  86.0 KB
Name:  IMG_3452.jpg
Views: 141
Size:  60.0 KB

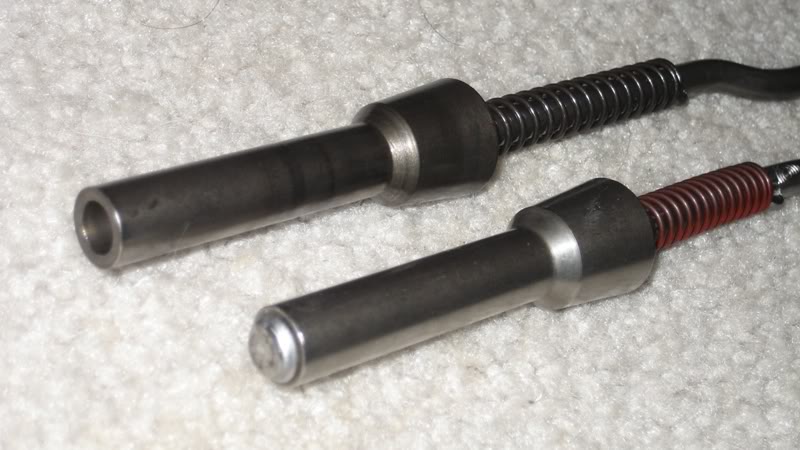

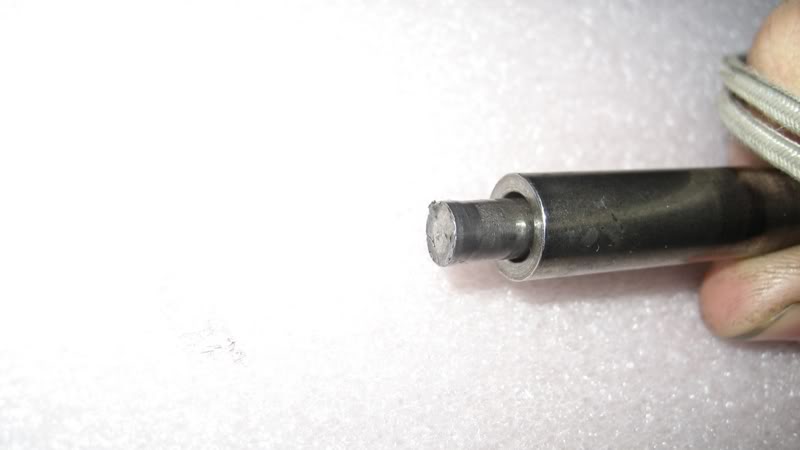

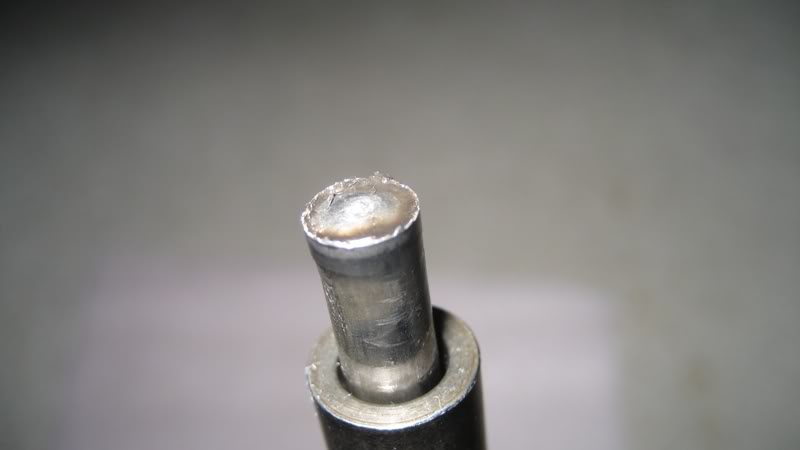

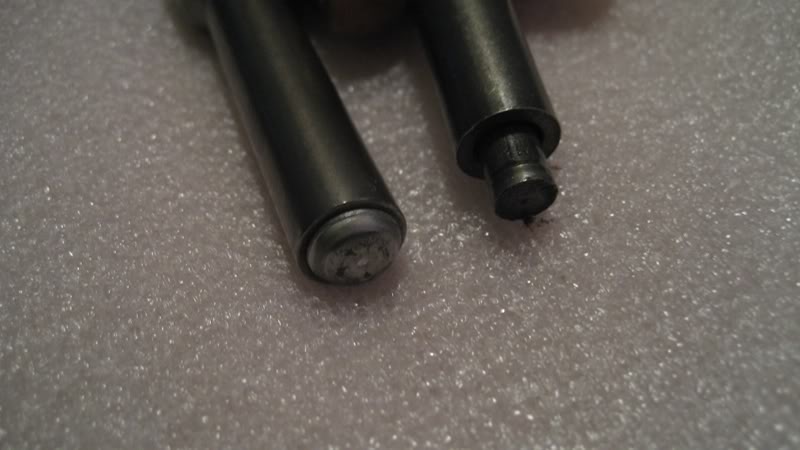

Observe the end of the broken rod. You'll notice it tapers out toward the end. This tapering makes it impossible to get the end off the rod, as the inner diameter of the rod toward the back is smaller than it is in the opening. Were it not this way, I would have had one hell of a time with a telescoping magnet trying to get that end out of the parking pawl deep inside the transmission.
Name:  IMG_3454.jpg
Views: 95
Size:  44.4 KB
Name:  IMG_3460.jpg
Views: 104
Size:  20.5 KB
Name:  IMG_3462.jpg
Views: 113
Size:  24.9 KB


Here'* a breakdown of what you must to in order to service the parking pawl rod:

1. raise car on jacks.
2. drain transmission oil by dropping pan. Make sure to use a very large catch pan. This would also be a good opportunity to replace the transmission filter. Re-install pan once finished.
3. unbolt steering rack from the subframe
4. with two jackstands below one side of the subframe, use a jack to lift up against the subframe. Once that is done, remove the 18mm subframe bolts. You will need a breaker bar, a GOOD 18mm socket, and an extension.
5. lower the subframe onto the jackstands.
6. repeat for the other side
7. slowly lower each side one after another, one jackstand notch at a time, until you can gain access to the transmission pan from the passenger wheelwell.
8. support the transmission using a jack against a piece of wood to prevent damage to the pan
9. disconnect and remove the transmission mount-to-transmission bracket, the transmission mount, and the subframe-to-transmission mount bracket.
10. remove brake caliper, bracket, and rotor
11. remove axle spindle nut
12. disconnect axle from wheel hub. This is tricky. You may need to hammer out the axle with quiet a lot of force. If you must hammer it, screw the nut onto the axle about 75% of the way so that when you hammer against it, you damage the cheap, replaceable nut instead of the axle.
13. move strut off to the side and pull axle out of the wheel hub.
14. using a pry bar or prying tool, carefully pry against the tri-star rubber part of the axle. The axle should pop off. Use caution to avoid damaging the side cover.
15. Remove all of the side cover bolts. The bolts are 10mm, with the exception of one bolt at the top which is a 13mm. The bottom 4 bolts are T40 Torx bolts. It would be advised that you spray them generously with a good penetrating lubricant (50-50 acetone and ATF works best), and using a 3/8" or 1/2" drive torx bit attachment, hammer against the bolts to loosen them up a bit, as they will likely be seized. Be very careful while removing them to avoid stripping the inside of the bolt. If it doesn't come off easily enough, apply more penetrant and do some more hammering.
16. Remove the side cover. This may take some adjusting of the transmission height.
17. Remove the arc spring with the roller. This is held down by one 8mm bolt. I used two long 3/8" drive extensions to get it off easily.
18. Remove the the 15mm nut using a standard wrench.
19. Lower the plate until you can pull it out of the transmission, and disconnect the gear selector rod.
20. Turn the plate until the notches on the end of the parking pawl rod line up to the opening on the plate.
21. Put it back together in the reverse order.
22. Refill transmission with fluid. Dexron VI is recommended.
xtremerevolution is offline   Reply With Quote
Old 02-10-2010, 07:45 PM   #50
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

When we do this at work, we never remove any brake parts, but we have the car on a lift. I'm sure doing this the way you did it made it much easier to get at everything.
sgp358 is offline   Reply With Quote
