Default send picture of motor please

can anybody send me a picture of a 97 sse or the same motor w/o the 3800 series II cover on so i can see where my spark plug wires go...thanks
showshocka2k is offline   Reply With Quote
Old 03-10-2007, 06:12 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Something like this help?

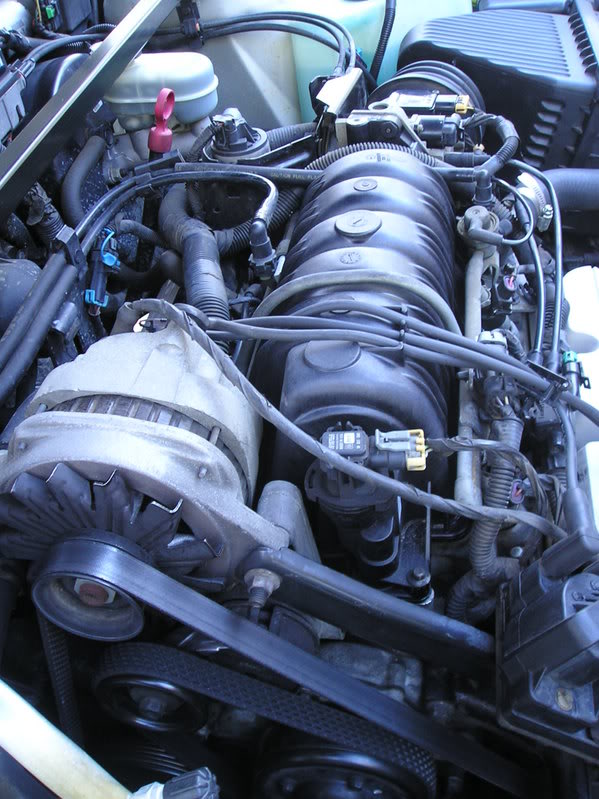

Name:  L36PCV.jpg
Views: 54
Size:  102.9 KB

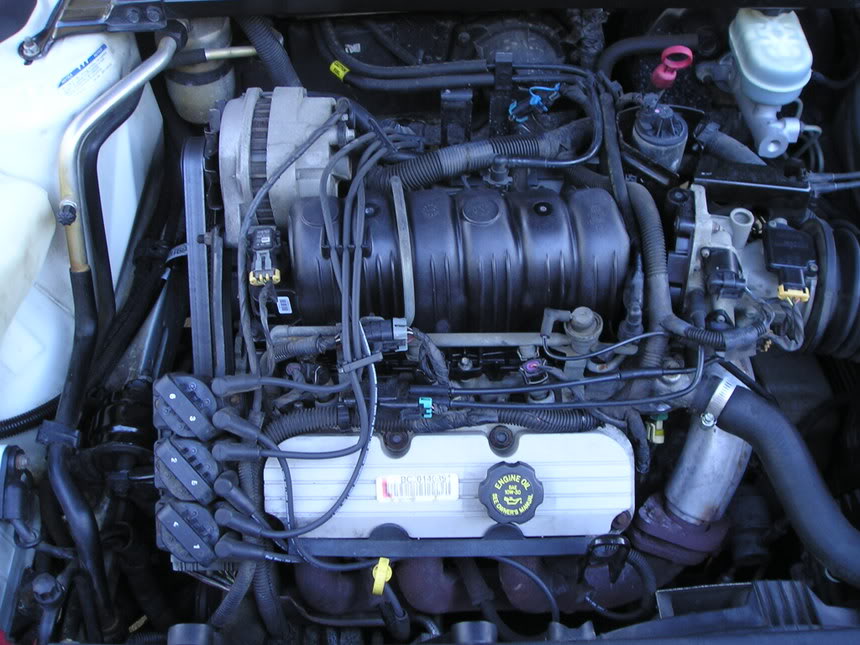

Name:  L36Overview2.jpg
Views: 205
Size:  104.0 KB
Archon is offline   Reply With Quote
Old 03-10-2007, 06:37 PM   #3
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

The front 3 wires (1-3-5) go into a plastic bracket clipped to the front end of the front valve cover, and come out where the green arrows point. Note: wire 1 should loop BEHIND the dipstick tube and wire 5 BEHIND the lifting eye bracket, or else they can be slack enough to get chopped by the fans.

The rear three wires (2-4-6) loop over the UIM, and are held in place by three "snap" brackets indicated by the red arrows, one on the EVAP bracket, one on the fuel rail, and one on the rear bracket that holds on the cover.





EDIT: I see other pix were posted while I was doing my response...
agrazela is offline   Reply With Quote
Old 03-10-2007, 07:21 PM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Feb 2007
Location: Baltimore City, Maryland
Posts: 100
Thanks: 0
Thanked 0 Times in 0 Posts
showshocka2k is on a distinguished road
Default

lots of help thanks to all!!!
showshocka2k is offline   Reply With Quote
Old 03-10-2007, 08:02 PM   #5
Senior Member
Posts like a Camaro

Join Date: Dec 2005
Location: Clovis, CA
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
MACDRIVE is on a distinguished road
Default




MACDRIVE is offline   Reply With Quote
Old 03-11-2007, 12:34 AM   #6
Junior Member
Posts like a V-Tak

Join Date: Mar 2007
Location: Ohio
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
jordan172005 is on a distinguished road
Default

before I got my car I bought a Hayne'* Manual and it tells the firing order and which coils go to which plugs. I think you should get one... best $16 ever spent IMO
jordan172005 is offline   Reply With Quote
Old 03-11-2007, 11:35 AM   #7
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

Aaahhh! I'm BLIND!

(not eto self-buy some Gunk engine cleaner today.)
