Question new guy with blown plenum (pics)

I have a 99 sucks edition, 130,000 miles. the fuel pressure regulator was replaced due to a recall on the old one, yet the thing still blew up! upper intake plenum blown in half due to backfire situation. Was starting it and BOOM. Blew the oil cap about 50 feet in the air!

The car has been sitting for a month now untouched since it happened. I travel for work and havnt had a spare bit of time to mess with it.

Im wondering, if coolant got into the cylinders and its been sitting this long, is my engine trashed? I read something about the bearings getting ate up with coolant or something and it scared me.

Also, whats the cheapest source for a new plenum?

And how likely is it that it messed up the map sensor or blew the lower intake gasket?

Thanks for your help!
Attached Thumbnails

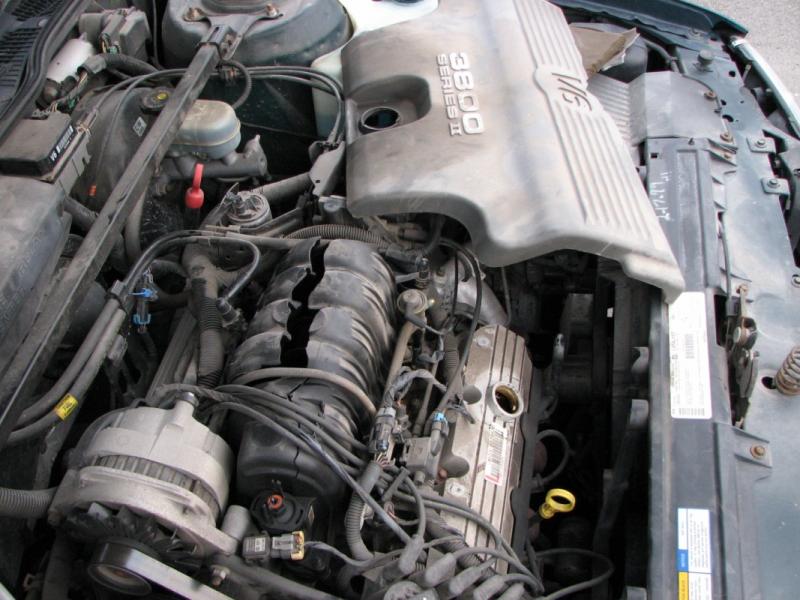

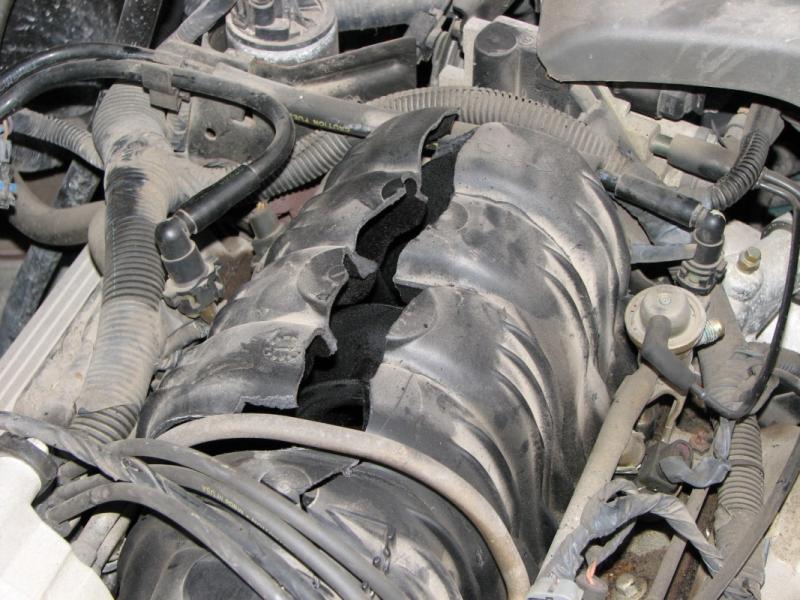

new guy with blown plenum (pics)-img_1963.jpg   new guy with blown plenum (pics)-img_1962.jpg
clintard is offline   Reply With Quote
Old 04-10-2009, 10:55 PM   #2
Junior Member
Posts like a V-Tak

Join Date: Nov 2006
Location: Southern California
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
teachutofly is on a distinguished road
Default

Take a look at this web page

NAPAONLINEŽ

There appear to be two aftermarket replacement intake manifold sets there for your year.

I did mine a couple of years ago with a Ken-Co manifold, but they do not seem to make one for a 99.
teachutofly is offline   Reply With Quote
Old 04-13-2009, 01:09 PM   #3
Member
Posts like a V-Tak

Join Date: Sep 2006
Location: Beverly, Ma.
Posts: 44
Thanks: 0
Thanked 0 Times in 0 Posts
ksmdigital is on a distinguished road
Default

I change my upper intake manifold about two years ago and it wasn't that difficult.

Shop 1A AutoŽ for Pontiac Bonneville 3.8L 231ci Intake Manifold for GM 3800 3.8L 231ci NON supercharged 1995-03 for your Bonneville

It'* recommended that you change out the lower intake manifold gaskets.
ksmdigital is offline   Reply With Quote
Old 04-13-2009, 01:53 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The way things are situationed I'd say you are probably fine. The amount of coolant in the upper and TB isn't enough that it should have gotten into the cylinders.

It takes quite a bit to fill the LIM and then overflow into the cylinders. There'* at most a full cup in the uim and tb.
BillBoost37 is offline   Reply With Quote
