Default Need help identifying a part

Hello all! Grateful for this wonderful forum!

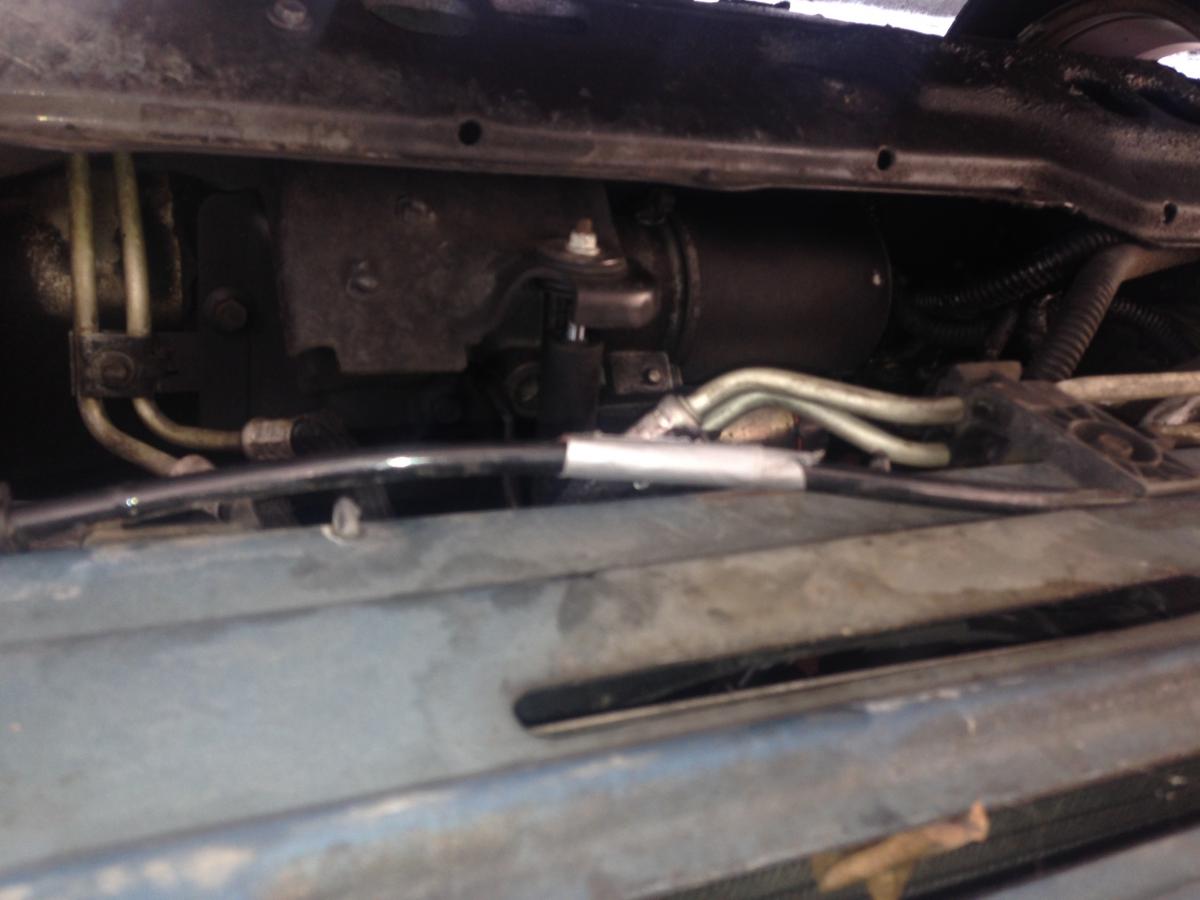

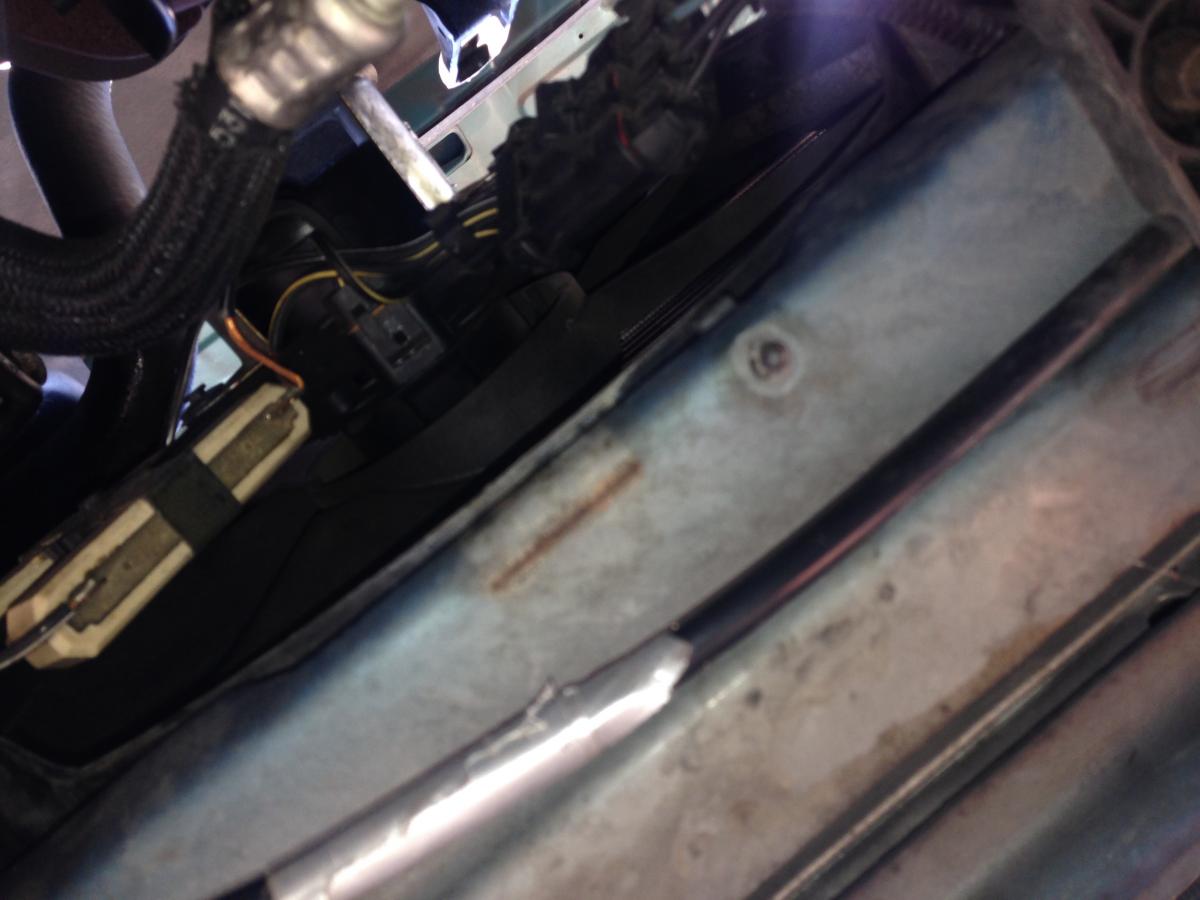

I need help identifying this particular line. It is right under the radiator and up towards the right side of it (looking towards the windshield) and runs towards the left side of the serpentine belt.

This particular line is leaking coolant and I need it replaced ASAP. It'* a black line and I put some duct tape around the leaking part as a temp fix. I also will be replacing the radiator and was wondering if there is anything I should know before doing this? I tried looking at step by step videos on youtube but there is none for the radiator.

Thanks everybody!
Attached Thumbnails
Need help identifying a part-img_0880.jpg   Need help identifying a part-img_7067.jpg   Need help identifying a part-img_8787.jpg
Five-five-six is offline   Reply With Quote
Old 09-13-2014, 08:49 PM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,855
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

The only line that small that has coolant running through it is the line that goes from the overflow at the neck of the radiator, and the overflow bottle.

It looks like it could also be a vacuum line, but if there is coolant running through the vacuum lines, there is a very big problem.

Windshield washer lines are also that small, but shouldn't be in the area you mentioned.
rjolly87 is offline   Reply With Quote
Old 09-13-2014, 09:33 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2012
Posts: 36
Thanked 2 Times in 1 Post
Five-five-six is on a distinguished road
Default

Hmmm, then maybe I mistook it for leaking. That general area is leaking and it is coming from the bottom where the radiator sits. If no hose around there contains coolant than maybe the radiator was just leaking so bad it was overspilling and was leaking on top of that line causing me to think it was leaking. Idk, when I saw it it was at the parking garage at my school so I didn't have much light. I just saw coolant leaking from that spot and I figured it was that line.
Five-five-six is offline   Reply With Quote
Old 09-14-2014, 11:43 AM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That is not a coolant line. That is your EVAP vent line that runs from the fuel tank up to the charcoal canister.

What the problem really is, your leaking coolant from your radiator and it just so happens to be leaking onto that EVAP line.
Mike is offline   Reply With Quote
The Following 2 Users Say Thank You to Mike For This Useful Post:
Five-five-six (09-14-2014), WilliamE (09-14-2014)
Old 09-14-2014, 12:03 PM   #5
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Good call Mike, pretty sure all of the coolant reservoir overflow tanks have soft rubber tubes on them, not hard plastic like that, it is definitely the EVAP line.
WilliamE is offline   Reply With Quote
Old 09-14-2014, 07:38 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2012
Posts: 36
Thanked 2 Times in 1 Post
Five-five-six is on a distinguished road
Default

Quote:
Originally Posted by Mike1995 View Post
That is not a coolant line. That is your EVAP vent line that runs from the fuel tank up to the charcoal canister.

What the problem really is, your leaking coolant from your radiator and it just so happens to be leaking onto that EVAP line.
Yes I think this was what was going on as well.

So we took out the old radiator and it had a decent sized crack at the top left that was causing it to spill coolant down and onto the EVAP line. We replaced the radiator so I can my Bonneville again! Thanks everyone!
Five-five-six is offline   Reply With Quote
The Following 2 Users Say Thank You to Five-five-six For This Useful Post:
Mike (09-14-2014), WilliamE (09-14-2014)
Old 09-14-2014, 09:33 PM   #7
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Thanks for letting us know what you found out, and did to fix it.
