MAF on 1993 ssei????????????????????????

Thread Tools

Search this Thread

Old Feb 6, 2006 | 04:00 PM
  #1
suctoes's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2005
Posts: 95
Likes: 0
From: Northwest Ohio
suctoes is on a distinguished road
Default MAF on 1993 ssei????????????????????????

what the heck does it look like and where is it?????? I took the MAF screen out but I don't see anything else in my throttlebody? WTH?
Reply
Old Feb 6, 2006 | 04:04 PM
  #2
JimmyFloyd's Avatar
Senior Member
True Car Nut

Joined: Feb 2002
Posts: 3,993
Likes: 0
JimmyFloyd is on a distinguished road
Default

On the top front the the TB, it is the square black sensor with the plug at the bottom. AFH50M-020 are on the one I have here and near the plug is A B C with - over the B and + over the C
Reply
Old Feb 6, 2006 | 04:07 PM
  #3
Mortehl's Avatar
Senior Member
Certified GM nut

Joined: Sep 2005
Posts: 2,009
Likes: 0
From: Home Sweet Home in New York
Mortehl is on a distinguished road
Default Re: MAF on 1993 ssei????????????????????????

Originally Posted by suctoes
what the heck does it look like and where is it?????? I took the MAF screen out but I don't see anything else in my throttlebody? WTH?
The MAF Sensor looks like this big square black thing on top of the throttle body.

http://www.mfxpop.com/~aarons/94se/engine-sg.jpg

If you look at that picture and follow the intake pipe up to the throttle body, you'll see a big black square sensor. That'* it.
Reply
Old Feb 6, 2006 | 04:08 PM
  #4
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

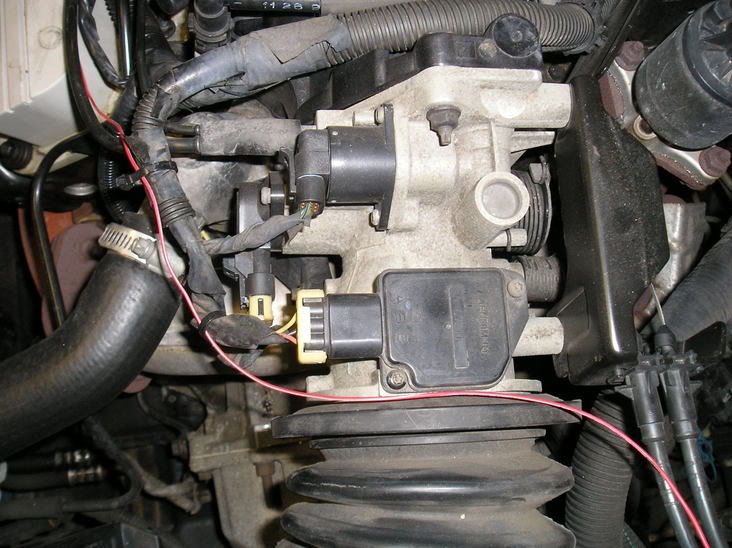

The big square sensor, right up top (not your motor..but for illustration)

Name:  P1010037.jpg
Views: 148
Size:  81.1 KB
Reply
Old Feb 6, 2006 | 05:14 PM
  #5
1993 SLE's Avatar
Senior Member
Certified Car Nut

Joined: Oct 2003
Posts: 19,756
Likes: 1
1993 SLE is on a distinguished road
Default

BE CAREFUL when you remove it and clean it....the little elements can break easily
Reply
Old Feb 6, 2006 | 05:17 PM
  #6
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

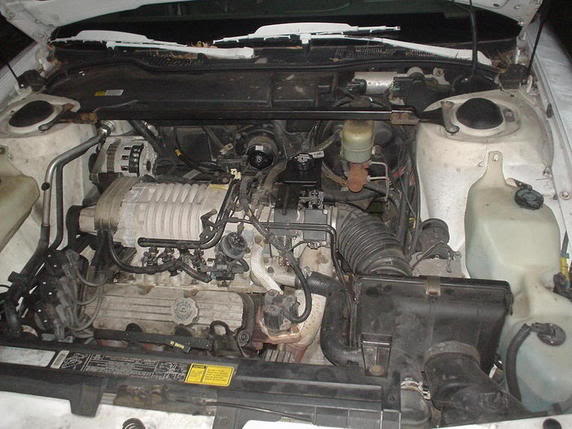

This should be your actual engine. Just to the left of the air accordian tube you will see the same basic sensor as the first pic
Name:  93L67Overview.jpg
Views: 153
Size:  47.9 KB
Reply
Old Feb 6, 2006 | 08:22 PM
  #7
suctoes's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2005
Posts: 95
Likes: 0
From: Northwest Ohio
suctoes is on a distinguished road
Default

Ok, got it cleaned with a cotton swab and some sensor safe TB cleaner... Thanks guys!
Reply
Old Feb 6, 2006 | 08:23 PM
  #8
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

OMG...you got the wrong sensor!!!!!!

Just kidding...

Glad it was easy. Hope it works out for you.
