John's Shave-O-Matic replacement - Page 10 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 04-11-2007, 07:59 PM   #91
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

John..pull the starter, fans and that little cover Dame mentioned. You'll have the easiest time getting the bolts where the starter should be.

Use a big ratchet and socket on the HB bolt (remove belts first) and you can turn it over (plugs too if you want to make it super easy). As the next bolt comes up..pull it out. There'* just three bolts that couple your engine to your torque converter power wise...
BillBoost37 is offline   Reply With Quote
Old 04-11-2007, 08:02 PM   #92
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Why would I pull the fans? Just for more room? Is it necessary that the TC and flywheel be lined up the same way afterwards or will I even have that choice?
J Wikoff is offline   Reply With Quote
Old 04-11-2007, 10:24 PM   #93
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The fans will give you much more room and for a few quick bolts and two connectors..well worth it.

Trust me.. I've done 7 of these motors..(going to pull #8 tomorrow)

The three bolt holes are equally spaced and shouldn't require any concern as to placement. (It'* the flywheel you gotta watch for ..lol)
BillBoost37 is offline   Reply With Quote
Old 04-12-2007, 12:13 AM   #94
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The FSM tells me to mark the flywheel/TC relationship.

Special tools I want:

J 37096 flywheel holder
J 35354 front cover seal tool
J 37089 crank sensor adjuster


I was gonna use the timing cover off the 93 SE, but GMPD and the old parts list tells me it'* different than mine. But I think I will use the spare walled LIM I have for the break-in period till I finally get the project heads done. I want to have as much of the new engine ready to go in at swap time to minimize the time I am without vehicle.
J Wikoff is offline   Reply With Quote
Old 04-12-2007, 12:40 AM   #95
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

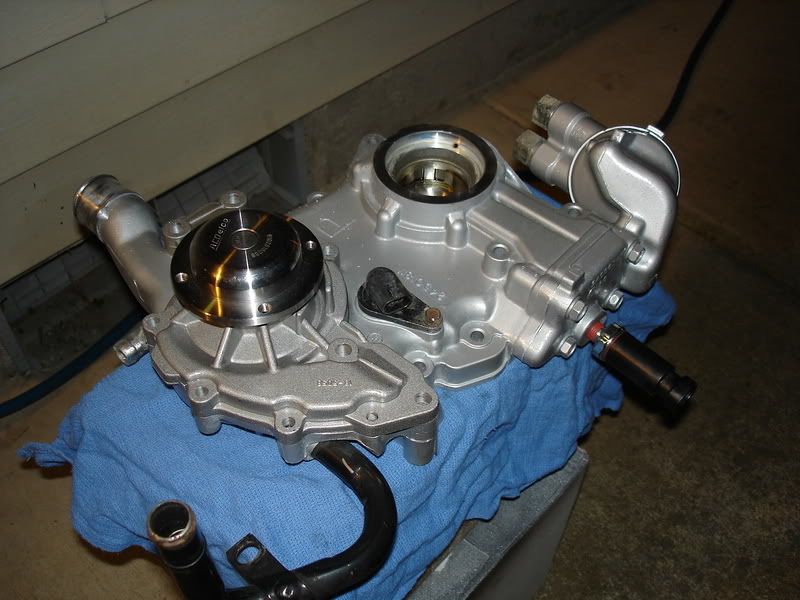

What'* the physical difference between these two timing covers? Uses the same water pump, front cover seal, front cover gasket, oil filter adapter... I'm trying to figure out if I can use the cover off my 93 SE. According to the lists I can find, all 92'* had their own cover, 93-95 Series I'* shared a different cover.

Name:  DSC03709.jpg
Views: 1
Size:  84.6 KB

J Wikoff is offline   Reply With Quote
Old 04-12-2007, 01:14 AM   #96
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
J 37096 flywheel holder
Use a screwdriver.

Quote:
Originally Posted by J Wikoff
J 35354 front cover seal tool
Use a block of wood. The tool makes sure that you get the seal in straight. It'* idiot proof.

Quote:
Originally Posted by J Wikoff
J 37089 crank sensor adjuster
Use your eyes. Slide the HB on, Look at the sensor, Anything look like it'* going to hit? Adjust accordingly.
Damemorder is offline   Reply With Quote
Old 04-12-2007, 12:04 PM   #97
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

How would a screwdriver hold the flywheel on an engine stand?

Used wood before, and it worried me. I want to do it right.

Can't really see the rings when the HB is on. I'd rather have it right the first time.
J Wikoff is offline   Reply With Quote
Old 04-13-2007, 12:22 AM   #98
Senior Member
Certified Car Nut
Thread Starter

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Ordered:
Head bolt set
OEM sc gasket
OEM water pump
exhaust donuts
TB gasket


Am I missing anything?

4 feet of socket extension... anything else?

I have a oil pump rebuild kit also, two, actually.
J Wikoff is offline   Reply With Quote
Old 04-13-2007, 07:34 AM   #99
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
How would a screwdriver hold the flywheel on an engine stand?.
The same way it does when there'* a transmission on it....

Quote:
Originally Posted by J Wikoff
Used wood before, and it worried me. I want to do it right..
It'* personal preference, But I wouldn't spend the money. Light taps and you're done.

Quote:
Originally Posted by J Wikoff
Can't really see the rings when the HB is on. I'd rather have it right the first time.
Turn the motor over, It'* easy to see from the bottom.
Damemorder is offline   Reply With Quote
Old 04-13-2007, 08:30 AM   #100
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I dunno nuthing bout adjusting the sensor. S2 FTW in this case. I'd trade you belt changing ease for adjusting a sensor you never touch.

To hold the flywheel on the engine stand. Take a bigger screwdriver.. slide it through one of the bolt holes or other hold in wheel and when you begin turning your other item..it should lock up. Leave the plugs in the motor for this..they will help with resistance.

The other thing that helps when doing things on a stand (removal..not install) is air tools. If you have a friend or availability in any way..I highly suggest it.
BillBoost37 is offline   Reply With Quote
