Default Ignition lock cylinder replacement

Hey all,
I have a 92 bonneville that I'm changing the ignition lock cylinder on. If I replace the lock cylinder with one that doesn't use the "pass key" will the car not start when I put everything back together? And what do I do with the two white wires connected to the old cylinder?

Thanks,

Arjay
Arjay is offline   Reply With Quote
Old 11-15-2006, 10:15 PM   #2
Senior Member
Posts like a 4 Banger

Join Date: Oct 2006
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
motorhead is on a distinguished road
Default

The car will not start without a passlock cylinder....unless you hot wire it by giving it the chip code it wants to see.
motorhead is offline   Reply With Quote
Old 11-15-2006, 10:47 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Take a DVM, set it to OHMS, and measure the value of the pellet on the current key. Once you get the value, run to Radio Shack and purchase that value resistor. Get under your dash and look for (someone correct me on this) 2 small yellow wires. Cut them, solder the new resistor in place and voila. VATS is now bypassed and you can now install the new lock/cylinder.
Mike is offline   Reply With Quote
Old 11-15-2006, 11:29 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2006
Location: Arizona
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Arjay is on a distinguished road
Default

Thanks guys. I guess I'll need to find someone with a DVM.

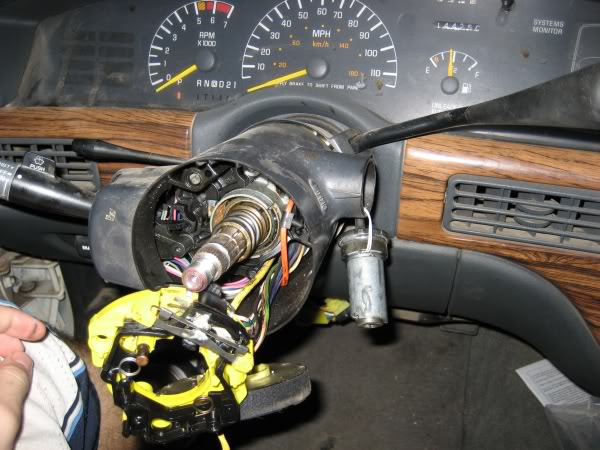

Here'* where I'm at now. What do I do with the 2 white wires? Connect them together? Name:  Column.jpg
Views: 151
Size:  60.1 KB
Arjay is offline   Reply With Quote
Old 11-15-2006, 11:39 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

No, do not connect them together....

That pellet on the ignition key, is a resistor. The VATS system looks at the resistance value of that pellet and see'* if its the correct one. I do believe its only 12 different values used here.

Better yet, take the key to Radio Shack and have them use a DVM. They should know how to do it.

When you get the resistor from Radio Shack, you will disconnect those 2 white wires and solder them to the resistor.
Here is the resistor...NOTE, this may not look like the one you buy. Only a couple cents.


And the new resistor will take the place of this...
Mike is offline   Reply With Quote
Old 11-16-2006, 12:05 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2006
Location: Arizona
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Arjay is on a distinguished road
Default

Thanks a lot Mike! That clears things up. I'll head to radioshack in the morning and see if I can get them to get a reading from my key. Thanks again,


Arjay
Arjay is offline   Reply With Quote
