Default ICM Connector - Bare wires - problems?

Hi All,

I am in the process of putting the 1993 LeSabre back together. During disassembly I discovered the connector for the ignition control module had some bare wires and appeared to have the insulation charred.

I have cleaned it up and taken a photo which is attached. I plan to scrap this connector and replace with one I have from the salvage yard (re-soldering each of the 13 wires).

However, my question is: What may have caused this and how might this have affected drivability? (I also am replacing the upper intake manifold as this was leaking coolant into the intake so needless to say the car was not running smoothly to start with (particularly a rough idle).

Thanks for any help and suggestions!
unis3 is offline   Reply With Quote
Old 12-02-2010, 03:23 PM   #2
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2010
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
unis3 is on a distinguished road
Default

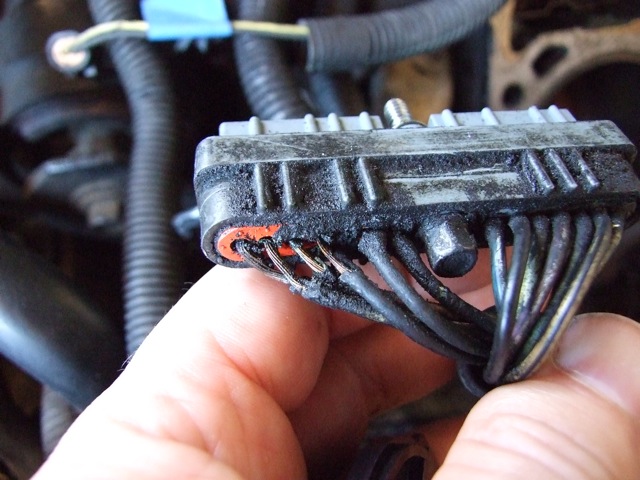

Here is the photo of the wiring:
Attached Thumbnails
ICM Connector - Bare wires - problems?-dscf3104.jpg
unis3 is offline   Reply With Quote
Old 12-02-2010, 04:33 PM   #3
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Was there a lot of tension on those wires when it was installed?
Jonpro03 is offline   Reply With Quote
Old 12-02-2010, 05:12 PM   #4
Senior Member
Posts like a 4 Banger

Join Date: Oct 2010
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
D Ryan is on a distinguished road
Default

Great picture!!!!!!!!!!!!!!

Do those wires have just oil on them or crispy , as in burnt ?
Could be intentional !
D Ryan is offline   Reply With Quote
Old 12-02-2010, 06:01 PM   #5
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

They look oily and crispy lol......question is how did it get oily like that.......anyways it could have affected driveablility because the two wires furthest to right apear to be touching...not good...any bare touching wires is not good
sseidriver97 is offline   Reply With Quote
Old 12-02-2010, 06:08 PM   #6
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Just by the fact that all of the stripped wires are on one side of the connector, I would say that there was too much tension on the wires.
Jonpro03 is offline   Reply With Quote
Old 12-03-2010, 01:29 AM   #7
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Not only do the ICM wires control your coils and ignition, but they also transmit data from the cam and crank sensors. If your engine was stalling a lot or your tach was flaky, congratulations -- here'* the culprit.
SignOfZeta is offline   Reply With Quote
Old 12-03-2010, 02:41 AM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2010
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
unis3 is on a distinguished road
Default

When I took the connector off the there was no tension that I noticed. The wires at first didn't look bare but after removed the grime it was evident. The underside of the ICM module seems to have a crispy burnt coating but I see nothing else around that area that would indicate high temperatures. Who knows, maybe it was intentional...It was like what you get burning insulation off a wire with an open flame, it flaked right off. At least two of the wires look as though they could easily have been touching. Could arcing cause they charred wires or is the current to low?
unis3 is offline   Reply With Quote
Old 12-03-2010, 07:44 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

My first thought seeing that is heat.
BillBoost37 is offline   Reply With Quote
Old 12-03-2010, 08:01 AM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Doesn't look like high heat to me. Looks like a lot of oil grim, and perhaps solvents and a little heat degraded the wires isolation. Only some of the isolation is missing, but nothing else is damaged.
