Default How to install belt?

Well this is kinda weird...but where is the bolt and spacer i have to pull out to put on my belt?

sounds retarded but a pic would be great..
99bonne is offline   Reply With Quote
Old 02-24-2008, 09:07 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

pulley closest to the alternator

Name:  L36belt.jpg
Views: 6
Size:  96.4 KB
harofreak00 is offline   Reply With Quote
Old 02-24-2008, 09:10 PM   #3
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

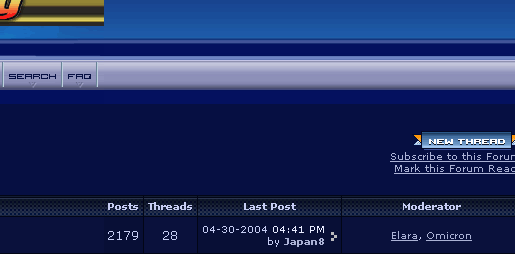

Name:  search.gif
Views: 3
Size:  14.2 KB

LOL, j/k. i believe you are talking about the TAM. if you search you can find a few good threads on the procedure.

but the best way to access it is through the passenger side wheel well.
samueljackson is offline   Reply With Quote
Old 02-24-2008, 09:12 PM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Dec 2007
Location: Fort Wayne, IN
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
99bonne is on a distinguished road
Default

that doesn't show where to put it on at..it shows how to install the last pulley belt...
99bonne is offline   Reply With Quote
Old 02-24-2008, 09:16 PM   #5
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

no pics, but here is a post from another thread

Quote:
Originally Posted by Echo SSEI
You don't have remove the TAM, only the sleeve at the bottom of the TAM to allow you to slip the belt on/off.

Engine doesn't have to be jacked. The top mount of the TAM will suppot the motor, but getting the sleeve out and back in might require the motor to be lifted ever so slightly so the sleeve can be slipped back in.

Best way to do all this is to:

- Put on the parking brake
- Block the rear wheels (safety first, you know)
- Jack front of Bonne
- Support front using jackstands
- Remove passenger side wheel
- Remove plastic splash shield pins from plastic shield and remove shield (or remove the back two or three and rotate shiled forward out of the way)
- Remove nut and stud from center of TAM sleeve (sometimes the nut and stud come out as one unit and sometimes the nut comes off then the stud), Stud is an external torx but can be removed using a regular socket that fits tightly over the torx head of the stud (may be a 5/32nd...i can't remember exactly)
- Remove metal sleeve, I found for my car that pushing the sleeve up, towards the hood area, from underneath the car, was easier than trying to pull it striaght down and out of the bottom of the car. Also may need to wiggle the sleeve, and eventually ist will come out.
- Slip belt off and past any pullies. (notice belt path so you put it back on correctly)
- Slip new belt on and reverse the above.

Many posts here about the procedure. Type "belt" in the search function and select "92-99l" where it says "Forum" and hit Search for all sorts of info and pics.
