Default HELP!

I have been driving my car pretty frequently the past few weeks since i am off from school for winter break. Yesterday i went to check my oil and to my surprise my supercharger belt was laying in my engine bay. The 3.8" pulley (don't laugh, haha) looks to be fine, but a bearing closer to the front of the engine bay looks a little cracked. I snapped a few pictures for a visual. Any advise or help?? Thanks for your time guys.

http://i3.photobucket.com/albums/y70...g?t=1167247146

http://i3.photobucket.com/albums/y70...g?t=1167247146

http://i3.photobucket.com/albums/y70...g?t=1167247146
BonneAlien is offline   Reply With Quote
Old 12-27-2006, 03:28 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

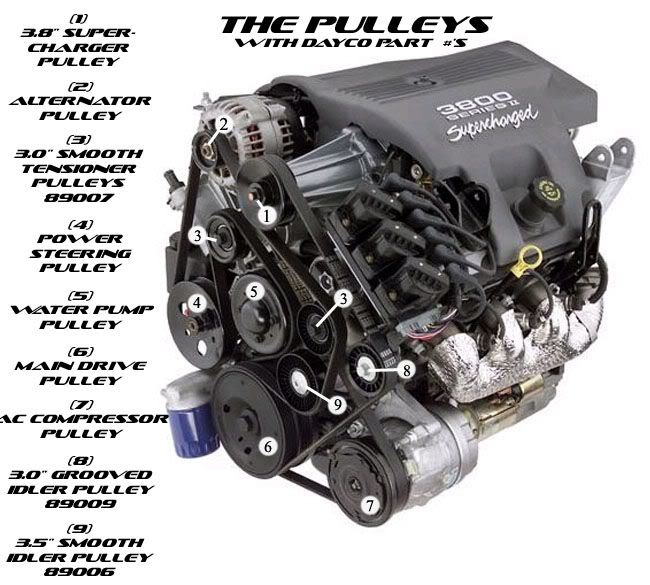

You lost an idler pulley:

Name:  S2L67.jpg
Views: 1
Size:  74.1 KB
willwren is offline   Reply With Quote
Old 12-27-2006, 03:42 PM   #3
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

wow! that pully is gone!
GreenMachine98 is offline   Reply With Quote
Old 12-27-2006, 03:49 PM   #4
Senior Member
Certified GM nut
Thread Starter

Join Date: Sep 2002
Posts: 2,204
Thanks: 0
Thanked 0 Times in 0 Posts
BonneAlien is on a distinguished road
Default

Thanks a ton for your help Bill.. rock on
BonneAlien is offline   Reply With Quote
Old 12-27-2006, 03:51 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Your idler pulley (#8 in the pic above) is completely gone and from what it looks like in your pics, your tensioner pulley (#3 above) is getting to be in rough shape.

check out the tensioner pulley carefully before going to the store/dealer for the idler pulley. How does it spin by hand? Noisey? Is it cracked or too worn?
lash is offline   Reply With Quote
Old 12-27-2006, 03:58 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Alien...while you have them off... It'* torture...but make yourself look at #9..

And the threads on that broken one should be reverse threads.
BillBoost37 is offline   Reply With Quote
