Default Fuel sender delay issue with 97 Pontiac Bonneville

Today 05:47 PM - permalink
madtech1972
I have heard about fuel sender calibration problems for 97 Pontiac Bonneville can I please get some more info on this problem my car is having delayed readings on the gas gauge stay at half tank and 3 quarter tank and when low go to e fast . could the instrument cluster be the problem ? thanks

madtech1972 is offline   Reply With Quote
Old 07-29-2014, 09:33 PM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

No, its in the software in the PCM. I remember seeing a TSB somewhere about it. GM has an update for your PCM. Just stop by the dealer and give them your VIN # and he can double check it.
Mike is offline   Reply With Quote
Old 07-30-2014, 10:12 AM   #3
Junior Member
Thread Starter

madtech1972's Avatar

Join Date: Jul 2014
Location: Painesville Ohio
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
madtech1972 is on a distinguished road
Default

thanks Mike
madtech1972 is offline   Reply With Quote
Old 07-30-2014, 11:34 AM   #4
Junior Member
Thread Starter

madtech1972's Avatar

Join Date: Jul 2014
Location: Painesville Ohio
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
madtech1972 is on a distinguished road
Default

I remember seeing in one of the threats I think it was you mike 1995 you look up vin numbers for what the car had from factory could you look up my vin please ? its 1G2HX52K3VH213225 97 Pontiac Bonneville se 3.8 liter non supercharged thank you
madtech1972 is offline   Reply With Quote
Old 07-30-2014, 12:29 PM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 07-30-2014, 08:16 PM   #6
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

No, he'* talking about GM'* TIS webservice. You punch in the VIN and it tells you all the PCM updates.

MADTECH,

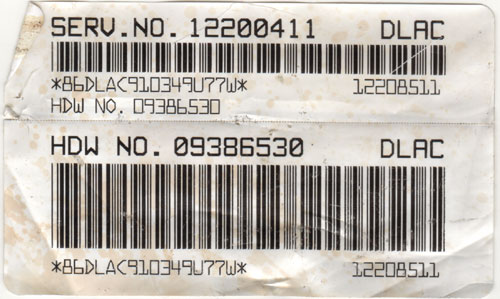

I need to know the service number from your PCM sticker that looks just like this one...

Attached Thumbnails
Fuel sender delay issue with 97 Pontiac Bonneville-pcm_service_tag.jpg
Mike is offline   Reply With Quote
Old 07-30-2014, 08:17 PM   #7
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

This is the actual thing that GM posted about it....

Quote:
FUEL GAUGE REMAINS ON 'FULL' TOO LONG (FLASH WITH UPDATED #73-83-25

SUBJECT: FUEL GAUGE REMAINS ON "FULL" TOO LONG (FLASH WITH UPDATED POWERTRAIN CONTROL MODULE (PCM) CALIBRATION)
MODELS: 1997 BUICK LESABRE
1997 OLDSMOBILE EIGHTY EIGHT
1997 PONTIAC BONNEVILLE
WITH 3.8L ENGINE (VIN K - RPO L36)
CONDITION:
SOME OWNERS MAY COMMENT THAT THE FUEL GAUGE REMAINS ON "FULL" TOO LONG. THE VEHICLE MAY BE DRIVEN APPROXIMATELY 100 MILES BEFORE MOVEMENT BEGINS.

CAUSE:
UPDATE FUEL SENDER INFORMATION CALCULATION MAY BE TOO SLOW.

CORRECTION:
FLASH WITH UPDATED POWERTRAIN CONTROL MODULE (PCM) CALIBRATION.

IMPORTANT:
DO NOT ATTEMPT TO ORDER THE CALIBRATIONS FROM GMSPO. THE CALIBRATIONS ARE PROGRAMMED INTO THE VEHICLE'* PCM VIA A TECHLINE TOOL DEVICE.

USING THE TABLE BELOW, DETERMINE THE CALIBRATION P/N NEEDED FOR YOUR VEHICLE APPLICATION. ENTER THE SERVICE PROGRAMMING SYSTEM (SPS) ON THE TECHLINE TERMINAL. THE MOST UP TO DATE CALIBRATION P/N SHOULD BE IN THE SYSTEM. CONTINUE WITH THE PROGRAMMING PROCESS BY SELECTING PROGRAM.

CALIBRATION AXLE
NUMBER RATIO EMISSIONS TIRE APPLICATION
----------- ----- --------- ---- -----------
16259014 2.84 USA/FEDERAL P205/P215 BUICK LESABRE
+ WA2 OLDS. EIGHTY EIGHT
PONT. BONNEVILLE
16259324 2.84 CALIFORNIA P205/P215 BUICK LESABRE
+ WA2 OLDS. EIGHTY EIGHT
PONT. BONNEVILLE
16259334 2.84 UNLEADED P205/P215 BUICK LESABRE
EXPORT/ OLDS. EIGHTY EIGHT
CANADA PONT. BONNEVILLE
+ WA2
16259344 2.84 USA/FEDERAL P225 OLDS. EIGHTY EIGHT
16259354 2.84 CALIFORNIA P225 OLDS. EIGHTY EIGHT
16259364 2.84 UNLEADED P225 OLDS. EIGHTY EIGHT
EXPORT/
CANADA
16259374 3.06 USA/FEDERAL BUICK LESABRE
OLDS. EIGHTY EIGHT
PONT. BONNEVILLE
16259384 3.06 CALIFORNIA BUICK LESABRE
OLDS. EIGHTY EIGHT
PONT. BONNEVILLE
16259394 3.06 UNLEADED BUICK LESABRE
EXPORT/ OLDS. EIGHTY EIGHT
CANADA PONT. BONNEVILLE
WARRANTY INFORMATION:
FOR VEHICLES REPAIRED UNDER WARRANTY, USE:

LABOR OPERATION LABOR OPERATION
NUMBER DESCRIPTION TIME
--------------- ----------- ---------------
J6355 ON CAR PROM REPROGRAMMING USE PUBLISHED LABOR
FLASH E-PROM OPERATION TIME
FIGURES: 0 ATTACHMENTS: 0

GENERAL MOTORS BULLETINS ARE INTENDED FOR USE BY PROFESSIONAL TECHNICIANS, NOT A "DO-IT-YOURSELFER". THEY ARE WRITTEN TO INFORM THOSE TECHNICIANS OF CONDITIONS THAT MAY OCCUR ON SOME VEHICLES, OR TO PROVIDE INFORMATION THAT COULD ASSIST IN THE PROPER SERVICE OF A VEHICLE. PROPERLY TRAINED TECHNICIANS HAVE THE EQUIPMENT, TOOLS, SAFETY INSTRUCTIONS AND KNOW-HOW TO DO A JOB PROPERLY AND SAFELY. IF A CONDITION IS DESCRIBED, DO NOT ASSUME THAT THE BULLETIN APPLIES TO YOUR VEHICLE, OR THAT YOUR VEHICLE WILL HAVE THAT CONDITION. SEE A GENERAL MOTORS DEALER SERVICING YOUR BRAND OF GENERAL MOTORS VEHICLE FOR INFORMATION ON WHETHER YOUR VEHICLE MAY BENEFIT FROM THE INFORMATION.

COPYRIGHT 1997 GENERAL MOTORS CORPORATION. ALL RIGHTS RESERVED.
Mike is offline   Reply With Quote
The Following 2 Users Say Thank You to Mike For This Useful Post:
Soft Ride (07-31-2014), WilliamE (07-31-2014)
Old 07-31-2014, 12:05 PM   #8
Junior Member
Thread Starter

madtech1972's Avatar

Join Date: Jul 2014
Location: Painesville Ohio
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
madtech1972 is on a distinguished road
Default

thank you mike and Softride I will get the numbers from the pcm
madtech1972 is offline   Reply With Quote
Old 07-31-2014, 04:38 PM   #9
Junior Member
Thread Starter

madtech1972's Avatar

Join Date: Jul 2014
Location: Painesville Ohio
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
madtech1972 is on a distinguished road
Default

Hi Mike I have the service number from my pcm its 16217058
madtech1972 is offline   Reply With Quote
Old 07-31-2014, 07:05 PM   #10
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Looks like your software hasn't been updated yet. Here are the updates...


9365394 9365351 N/A Change to correct 3-4 transmisssion harsh upshift and enhance post 02 sensor diagnostics, Bulletin Number 876520.
16259374 16259017 N/A Reduces the potential for intake manifold over pressure and corrects inaccurate fuel gauge, Bulletin 738325.
16257624 16257550 N/A Corrects wrong fuel level curve information in calibration and intake manifold overpressurization.
16253084 16252951 N/A Supercession - Fix for trouble code P0121
16243694 16243608 N/A New calibration for improved speedometer accuracy and reduced potential for spark timing errors
16231394 16231308 N/A Control module calibration
Mike is offline   Reply With Quote
