Default Engine transmission bolt

having troubling removing the third rear engine to transmission bolt. Is that one that is on the engine side? How do i remove it?
jspence3 is offline   Reply With Quote
Old 04-19-2014, 11:54 AM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

MODS: Please split this off in to a new thread.

I don't know the exact details or which 3800/Tranny combos have it, but I do recall there being mention of one bolt on the bell housing that is backwards, and usually must be reached through the drivers side wheel well with enough extensions to get the ratchet in to the wheel well to turn. I will try and dig up more details on it.
rjolly87 is offline   Reply With Quote
Old 04-19-2014, 12:13 PM   #3
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Did some digging in tech info.

Engine removal:

https://www.gmforum.com/mechanical-1...6-99-a-285073/

This is transmission removal, however it directly references and pictures the backwards bolt.

https://www.gmforum.com/mechanical-1...6-99-a-289278/

Looks like I was wrong, it'* the passenger side that many go through to get to it.
rjolly87 is offline   Reply With Quote
Old 04-19-2014, 01:58 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
jspence3 is on a distinguished road
Default

it there a picture to show how to get there from the passenger front wheel well
jspence3 is offline   Reply With Quote
Old 04-19-2014, 02:22 PM   #5
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,639
Thanked 993 Times in 771 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

First, you need to remove the passenger side tire.
Remove any plastic splash shields
Remove the oil pressure sensor and this metal bracket that has 4 bolts.

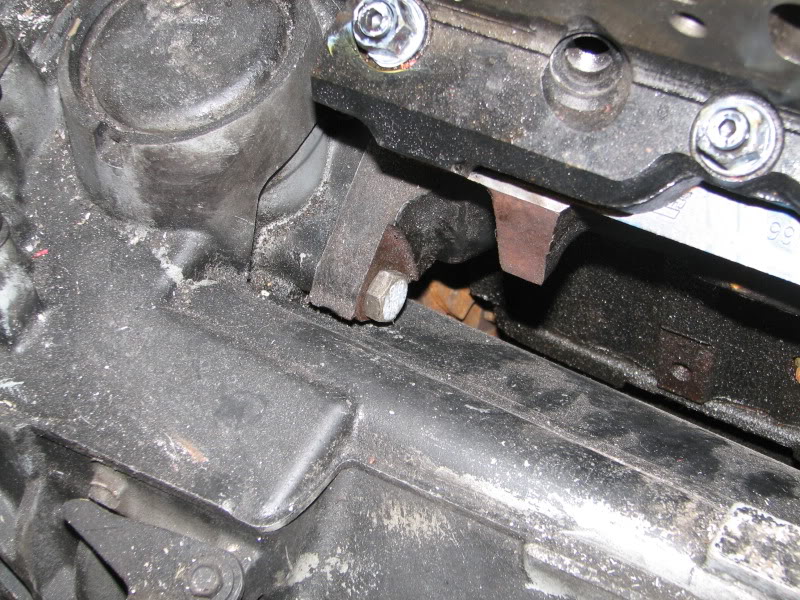

Now you should be able to see the backwards bolt just like in this picture...



Use a long extension like shown here...



Thanks goes to Billboost for the pictures.
Attached Thumbnails
Engine transmission bolt-img_5451.jpg   Engine transmission bolt-img_5449.jpg   Engine transmission bolt-img_5516.jpg
Mike is online now   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
WilliamE (04-19-2014)
Old 04-19-2014, 02:25 PM   #6
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

https://www.gmforum.com/1992-1999-91...e-swap-291106/

This is a thread from someone else faced with similar problems, and also has the above pics in there plus more.
