Old 05-01-2008, 11:37 PM   #21
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Brooklyn, NY
Posts: 152
Thanks: 0
Thanked 0 Times in 0 Posts
Vas62 is on a distinguished road
Default

So maybe we'll finally have a article in techinfo with detailed step by step info how to change actuator without removing dashboard.
Vas62 is offline   Reply With Quote
Old 05-02-2008, 12:41 AM   #22
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It'* been posted before. See this pic:

Name:  IMG_4424.jpg
Views: 5
Size:  94.2 KB

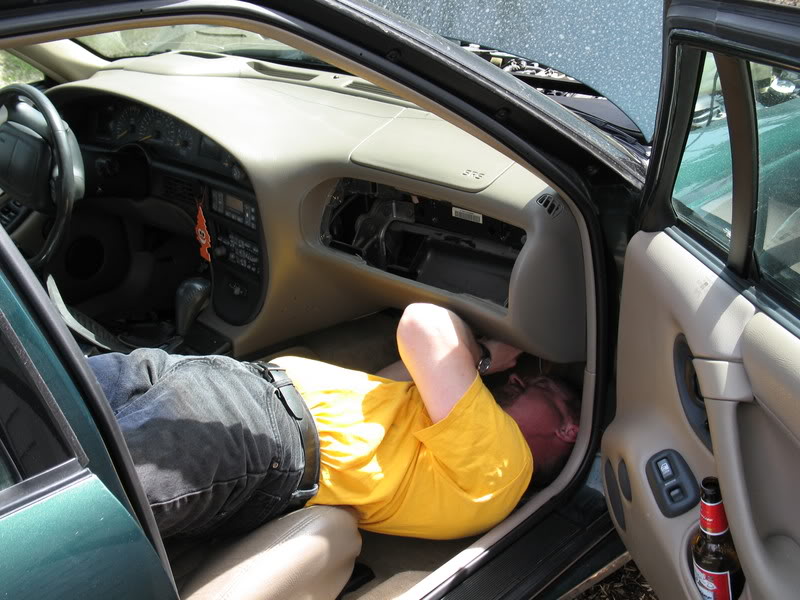

That'* me in Tpulliam79'* 96 SSEi. The glovebox is out, and the hushpanel is out. Remove the HVAC controller, and reach up through the hole. Two small hex nuts hold it in place. It took me 20 minutes (not racing the clock). Taylor, Matt, and Pdad left for Arby'* across the street for lunch as I started. When they got back with food to go, I was putting the tools away. It'll take you 2-4 hours your first time.

It'* really that simple. Your arms will get scratched up, and it'll take you longer because you don't know what you're after, but I gaurantee you'll figure it out from there.

Yes, it really IS that simple. Especially after you've done a few. I did my first that way simply from a posted description.
willwren is offline   Reply With Quote
Old 05-02-2008, 12:45 AM   #23
Senior Member
Posts like a Turbo
Thread Starter

LeSabreUltra's Avatar

Join Date: Feb 2007
Location: Alabama
Posts: 494
Thanks: 0
Thanked 0 Times in 0 Posts
LeSabreUltra is on a distinguished road
Default

And all I had to do was kneel on the pavement next to the car.
.
.
.
LeSabreUltra is offline   Reply With Quote
Old 05-02-2008, 09:02 AM   #24
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I can do it that way on a Bonneville as well, but this is easier on my knees and back.
willwren is offline   Reply With Quote
Old 05-02-2008, 02:04 PM   #25
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Brooklyn, NY
Posts: 152
Thanks: 0
Thanked 0 Times in 0 Posts
Vas62 is on a distinguished road
Default

Does HVAC controller has some vacuum connections and how easy it can be disconnected?
I'm afraid not to break something and make things worse.

EDIT: I have "redneck fix" in place for now .It'* getting hotter so I won't be fried in the car ,but have to fix it anyway.

Oh,and that bottle with Budweiser in the picture. Can I replace it with Heineken when fixing that thing?
Vas62 is offline   Reply With Quote
Old 05-02-2008, 02:50 PM   #26
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Wouldn't you know it. My recliner function died, making Willwren'* gymnastic routine near impossible.
93RedSled-SSE is offline   Reply With Quote
Old 05-02-2008, 04:39 PM   #27
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You don't have to disconnect the vac lines. Just unscrew the HVAC programmer, and pull it out of the way (after disconnecting the electrical harness on the actuator).

Any beer can be substituted.

Sled, Just remove your seat and clean/lube the screws. They get gummy over time. You can kill two problems in one afternoon that way. I used a battery charger to actuate the seat motors for cleaning and lubing. Both my recline functions (both front seats) needed that treatment last winter.
willwren is offline   Reply With Quote
Old 05-02-2008, 04:54 PM   #28
Senior Member
Posts like a Turbo

Join Date: Jan 2008
Location: Memphis, TN
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
93RedSled-SSE is on a distinguished road
Default

Quote:
Originally Posted by willwren
Sled, Just remove your seat and clean/lube the screws. They get gummy over time. You can kill two problems in one afternoon that way. I used a battery charger to actuate the seat motors for cleaning and lubing. Both my recline functions (both front seats) needed that treatment last winter.
Way cool. It had fooled me into thinking the controller relays were bad, with both failing. Fact is stranger than fiction. Ahh. Battery charger... good idea. On the top of the list for weekend projects!
93RedSled-SSE is offline   Reply With Quote
Old 05-02-2008, 06:37 PM   #29
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

If yours moves JUST BARELY, that'* your problem. It'* hard to tell if it tries just a bit though.
willwren is offline   Reply With Quote
