Default Door hinge bushings

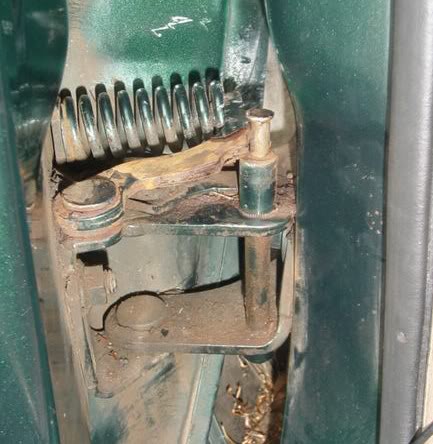

As you can tell from the pic, I need new door hinge bushings, pins or whatever the official term is. The roller was not even connected to the pin on the driver'* side. Before I start hammering away, I'd like to get an idea of the proper procedure for removing and reinstalling.

Name:  hinge.jpg
Views: 49
Size:  39.3 KB
randman1 is offline   Reply With Quote
Old 08-29-2004, 02:10 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Re-alignment is a bitch, the pins and bushings aren't sold seperately. You have to buy the whole hinge. Upper and lower are different part numbers and will probably run 30-60 dollars each from gmpd.
willwren is offline   Reply With Quote
Old 09-05-2004, 01:04 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Can anyone supply the part numbers for both the driver'* and passenger'* hoor hinges??
randman1 is offline   Reply With Quote
Old 09-05-2004, 03:00 PM   #4
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Front Right Upper:
Quote:
GM PART # 25540144
CATEGORY: Door Hinge
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $59.28
OUR PRICE: $34.98
DESCRIPTION: HGE ASM-F
Front Right Lower:
Quote:
GM PART # 16630228
CATEGORY: Front Door Lower Hinge
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $106.64
OUR PRICE: $62.92
DESCRIPTION: HGE ASM -
Front Left Upper:
Quote:
GM PART # 25540145
CATEGORY: Door Hinge
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $59.28
OUR PRICE: $34.98
DESCRIPTION: HGE ASM-F
Front Left Lower:
Quote:
GM PART # 16630229
CATEGORY: Front Door Lower Hinge
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $106.64
OUR PRICE: $62.92
DESCRIPTION: HGE ASM -
Rear Right Upper:
Quote:
GM PART # 25540146
CATEGORY: All
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $34.75
OUR PRICE: $20.50
DESCRIPTION: HGE ASM-R
Rear Right Lower:
Quote:
GM PART # 16627112
CATEGORY: All
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $76.61
OUR PRICE: $45.20
DESCRIPTION: HINGE ASM
Rear Left Upper:
Quote:
GM PART # 25540147
CATEGORY: All
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $34.75
OUR PRICE: $20.50
DESCRIPTION: HGE ASM-R
Rear Left Lower:
Quote:
GM PART # 16627113
CATEGORY: All
PACK QTY: 1 CORE CHARGE: $0.00
GM LIST: $72.93
OUR PRICE: $43.03
DESCRIPTION: HINGE ASM
If you'd like used ones, I'v got ones from the 94 in a box... Good luck with the re-alignment
Damemorder is offline   Reply With Quote
Old 09-05-2004, 03:56 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Used ones would be OK if they are in good shape. I need the left front lower and could use the right front too.
