climate control mix door - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 04-30-2006, 06:02 PM   #1
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jun 2005
Location: Ohio
Posts: 125
Thanks: 0
Thanked 0 Times in 0 Posts
markviiisvt4 is on a distinguished road
Default climate control mix door

OK my climate control started flashing the other day, it seems i have the ominous mixer door problem that seems to be pretty previlent. my question is for those of you that have had it what did you do to fix it?
markviiisvt4 is offline   Reply With Quote
Old 04-30-2006, 10:16 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Replace the airmix actuator by ripping the entire dash out, or apply my redneck fix I used on the 95 until I can get to it.

Do a search on 'airmix redneck fix'. You'll find it.
willwren is offline   Reply With Quote
Old 04-30-2006, 10:21 PM   #3
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

how do you know what the problem is? I thought only the dealer could pull the climate codes.
popatim is offline   Reply With Quote
Old 05-02-2006, 04:20 PM   #4
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

Ding, ding, ding, ding. You DON'T have to pull the entire dash to get to that wretched air mix actuator. It'* not the most pleasant of tasks, but you can get to it by removing the heater core cover. I know because I just did it a few weeks ago and I think it required a much smaller bag of cuss words than pulling the dash would.

If your ECC display is flashing, chances are real good it'* the air mix actuator. I read all the codes out of my '93 and it said the HVAC Programmer was toast. It was wrong, but I did get to upgrade my '93 ECC to a later model. But make sure that'* what it is, 'cause changing it probably won't be a lot of fun.

I have been working on step-by-step procedures for doing this (complete with pictures, I might add), but I've been so busy lately I haven't had time to finish it. Maybe I can get to it this week. The redneck fix is a good temporary solution until you can find the time to replace the actuator. I'd block out about 4 hours or so to do it.
SSE Motorhead is offline   Reply With Quote
Old 05-03-2006, 07:31 PM   #5
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

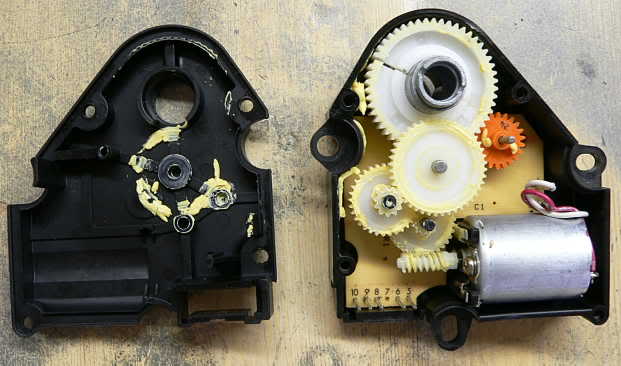

If you're interested, here'* the typical failure mode for the Air Mix Actuator - the big plastic gear splits and slips on the serrated shaft that moves the air mix door.


Name:  Open_air_mix.jpg
Views: 3
Size:  31.3 KB

It'* hard to see in this photo, but mine was split through more than 75% of the gear. This caused all sorts of whacky problems with my ECC.
SSE Motorhead is offline   Reply With Quote
Old 05-03-2006, 08:43 PM   #6
Junior Member
Posts like a V-Tak

Join Date: Dec 2002
Location: Lancaster, PA
Posts: 27
Thanks: 0
Thanked 0 Times in 0 Posts
armorplated is on a distinguished road
Default

SSE Motorhead- I second the motion for a tech write-up on the air mix door. Mine'* been blowing lavalike air on my passengers for a while. It seems like this is becoming a very common problem. Anyone price a new part at the dealer? I'm almost afraid to bother with one at the junkyard...
armorplated is offline   Reply With Quote
Old 05-06-2006, 12:54 PM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jun 2005
Location: Ohio
Posts: 125
Thanks: 0
Thanked 0 Times in 0 Posts
markviiisvt4 is on a distinguished road
Default

ditto i thought i had one lying around but i can't find it for the life of me. any one have a prt number and a price from the dealer. Or do the park aves and such use the same one? if so i'll grab a bunch from a local yard with a ton of buicks and olds h bodys.
markviiisvt4 is offline   Reply With Quote
Old 05-07-2006, 12:05 AM   #8
Member
Posts like a V-Tak

HotZ28's Avatar

Join Date: Apr 2006
Location: USA
Posts: 38
Thanks: 0
Thanked 1 Time in 1 Post
HotZ28 is on a distinguished road
Default

I got one from Advanced for about 36 bucks.:P
http://www.partsamerica.com/Advance Auto Parts
HotZ28 is offline   Reply With Quote
Old 05-09-2006, 06:56 PM   #9
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

I got off my corpulent arse and drafted up procedures for changing the air mix actuator. It'* going through a review right now to make sure I'm not completely insane. I'll give it another week or so, incorporate the changes, then post a link.

Now that I've changed that silly thing, I'm not afraid to do it again if I have to. It'* not quite as bad as it appears, but it'* not as simple as changing the air filter either. I did a few things that make the project a little more palatable. It'* all in the instructions which I'll make available in a few days.
SSE Motorhead is offline   Reply With Quote
