Default A/C Problems

First off I have a 98 Bonne SSEi. Now my actuators for my A/C vents are stuck on defrost. I took it to a local shop that I have used before and he said he was able to open and close the actuators manually but couldn't troubleshoot any further b/c Pontiac would not release the master schematic. Frustrated I took it to Beck & Masten Pontiac in Houston. They are saying my HVAC is defective and want to charge $750 for a new one followed by $400 in labor. Does anyone have any suggestions or comments that could lead me in the direction that would not end up getting me screwed. What is the HVAC and its functions? Any place I could find it for cheaper than $750?

Thanks for the help.
nixen1 is offline   Reply With Quote
Old 08-07-2007, 09:29 PM   #2
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

Fix it yourself for under $10.
Search on Programmer should eventually find the thread. I'll see if I can dig it up.

Edit - Heres my thread on the the programmer issue (the vacuum line connector gets clogged) and my 'fix'.
http://www.bonnevilleclub.com/forum/...ght=programmer


Let me add that first you need to verify that you have vacuum coming in from the engine compartment. The hose gets knocked off the firewall sometimes and the system will default to defrost-mode in that case.
popatim is offline   Reply With Quote
Old 08-08-2007, 10:12 AM   #3
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

While you are doing diagnostics on your system, you might want to do a read of this very well written, if somewhat wordy (lol), diagnostic procedure (written by Stan: SSE Motorhead). It includes the possibility that your actuator may need repair.

http://www.trialsnuts.com/ecc.pdf

There are also a number of threads that directly address the diagnostics, if you really want to save that money.
lash is offline   Reply With Quote
Old 08-08-2007, 10:49 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

This sounds like you have collapsed nipples..

That'* HVAC talk for needing a little vacuum line.
BillBoost37 is offline   Reply With Quote
Old 08-08-2007, 05:16 PM   #5
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

If you have cold air, and it only blows out the floor vents, then the "nipple" replacment fix most likely will cure your problems. If not, then the vacuum feed or resevoir tank could be the culprit, but it is probably a collapse of the nipple(*) in the connector attached to the programmer case.

Here is the nipple fix procedures I used:

The violet colored line shown in the pics below is the vacuum supply line for the HVAC system. It runs though your firewall, into a harness cover (with other wires) where it t'* off to a black vacuum line that connects to the vacuum storage tank, in front of your passenger side wheel, underneath the car. A leak in this line or storage tank (black plastic pill looking tank about 8 inches long) may cause the system to take a long time to store up enough vacuum to operate your system. You may need to check that tank and the vacuum connector for cracks/splits/problems.

On to the "nipple" fix. First remove the plastic panel that is way underneath the dash, on the passenger side. Move the passneger seat back as far as it can go. Lay on your back and look underneath the dash. you should see a bunch of multi colored vacuum tubes going into a clear connector that is part of a black plastic box (the box is your HVAC programmer).

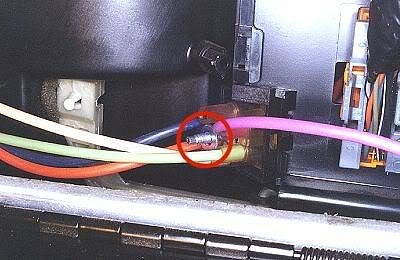

Name:  F2-open_programmer.jpg
Views: 18
Size:  26.2 KB

There are two bolts that hold the plastic box together. One on the middle front of the box and one on the bottom. You may not see the middle one, but you can undo it by feel. Get a flashlight and look at the box to get an idea of where the bolts are and what they are like. Undo the bolts (you do not have to take them completely out) and use the flat blade of a screwdriver to pry the box open (like a clam shell). Keep undoing the bolts until you can remove/slide the clear (and black) piece that the multi-colored lines are going to out of the box. There are lines on the other side of the piece as well, but they are different colors. Note which color lines up with which other color (make a diagram if needed).

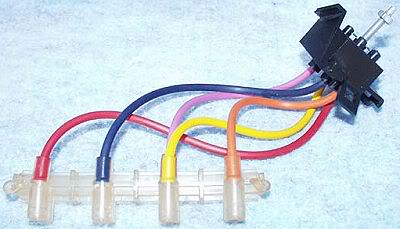

The lines lead to another clear connector insdie the box that looks like this, but you don't need to take the box apart and get to this piece for the fix. You only need to cut the lines at the connector itself.

Name:  conenctor.jpg
Views: 12
Size:  19.5 KB

Once the piece is dangling free from the box, you simply cut each vacuum line (do it one at a time or use your diagram of the colors) at the connector on both sides. Get some new vacuum tubing (I took a small piece from one of the lines I cut to NAPA, to insure I got tubing that was tight, but not too tight.) and rejoin/reconnect the lines, in correct order, matching the two different colors (from the diagram you made) using the new tubing. I used a little WD-40 to help me slide the vacuum lines into the tubing.

Re-route the connected tubes through the hole in the black box where the clear/black connector used to be, retighten the bolts on the black box, enjoy air from center vents.

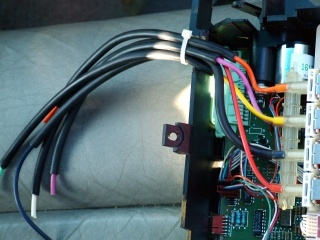

The finished product would look similar to this photo. I only used about an inch of new tubing on mine instead of the several inches shown in this pic.

Name:  programmer.jpg
Views: 15
Size:  35.5 KB

More pics showing the programmer and connector for further reference

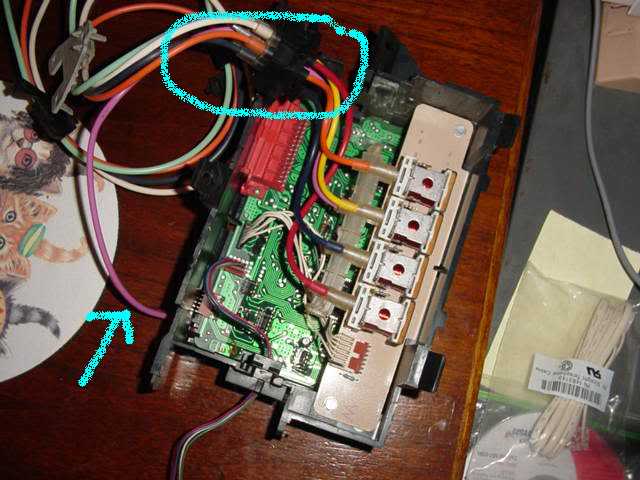

Name:  HAVC1.jpg
Views: 29
Size:  46.0 KB

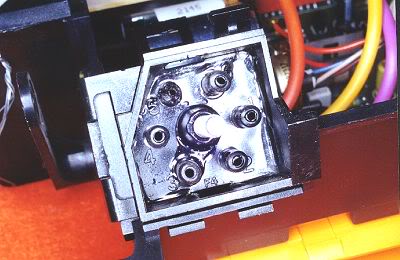

Name:  F1-male_connector.jpg
Views: 17
Size:  26.5 KB

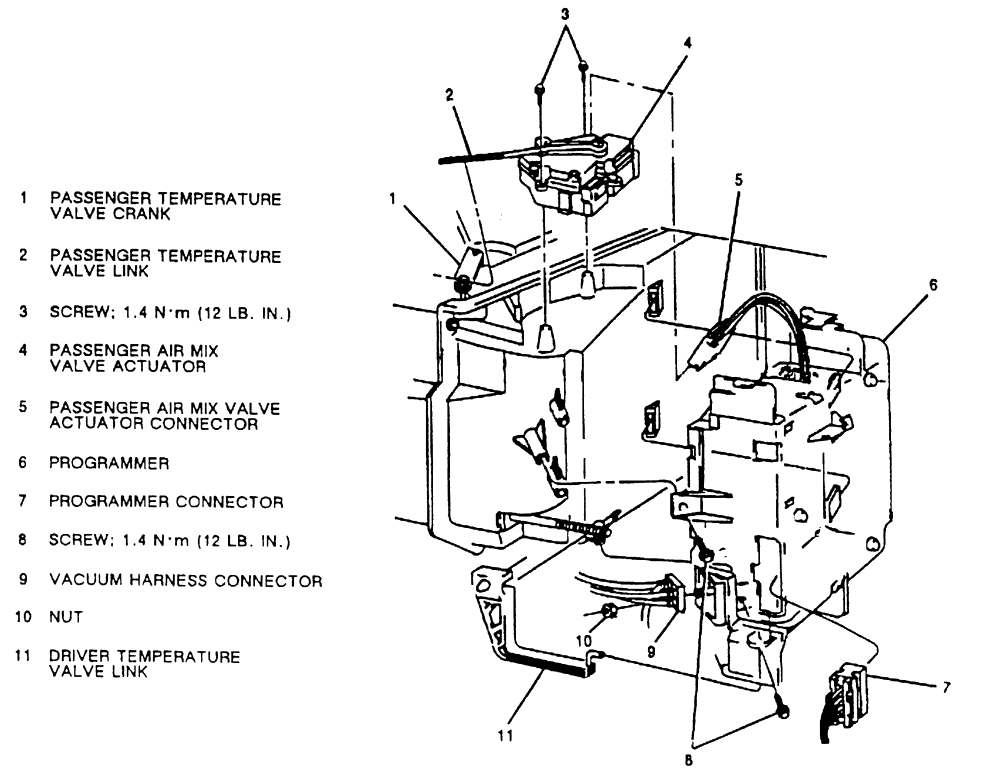

Name:  0900823d8017f925.gif
Views: 17
Size:  89.4 KB

Last edited by Toddster; 01-03-2010 at 06:16 PM.
Echo SSEI is offline   Reply With Quote
Old 08-08-2007, 07:58 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2004
Location: Magnolia, TX
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nixen1 is on a distinguished road
Default

Thanks guys. You all are great. This is a plethora of information and I am positive I can locate the problem now.
nixen1 is offline   Reply With Quote
Old 08-08-2007, 08:24 PM   #7
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

For about $1.79 (I think that is what the vacuum tubing cost me from NAPA), and an hours worth of work, give or take (not hard, just time consuming, and some akward positioning of the body), this just may fix you up. Just did this procedure with Ben (big_news_1) last Sunday evening....well, I walked Ben through it and he did all the work while I supervised.....and he now has air from his center vents, again. He said the job was a piece of cake.

If this does not work for you then I would next be looking for a leak along the violet purple supply tubing or vacuum canister.
Echo SSEI is offline   Reply With Quote
Old 08-12-2007, 08:22 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2004
Location: Magnolia, TX
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nixen1 is on a distinguished road
Default

sorry for the double post.

Well I have resolved my HVAC and airflow problem
culprit ended up being a broke nipple on the conn. for the defroster vaccuum line.

just saved alot of $$$.

but I still have this weird noise. As soon as I crank the engine I get this squeak (like a haunted house door slowly opening) and then it stops. It resumes when I put it in D and take off. It eventually subsides after +/- 20 secs. maybe a vaccuum problem somewhere or could it be the AC fan/blower.

houston weather is really hurting no AC
