Quote:
Originally Posted by rkpatt
Throttle body ( TB) gasket too ?
Yup. Everything you need to do the upper half of the motor.
TheDude is offline   Reply With Quote
Old 02-07-2008, 10:11 PM   #22
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Yes, the TB gasket is included with the APN.
Barry is offline   Reply With Quote
Old 02-08-2008, 04:53 PM   #23
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2008
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
rkpatt is on a distinguished road
Default

Another question - What are the torque specifications for the new style GM alumimun frame LIM ( lower intake manifold ) gaskets 3.8 L36 ?
- Thanks

Edit - I found some more info on the procedure at with some diagrams from GM --

http://www.gminsidenews.com/forums/*...ad.php?t=60606
rkpatt is offline   Reply With Quote
Old 02-08-2008, 06:18 PM   #24
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

11 ft-lb in proper sequence. Someone will have an illustration of the sequence which is typically starting from the center of the piece, alternating sides, working out to the ends. Best to work up to the spec in two or three passes. Use blue loctite on the cleaned bolt threads.
bill buttermore is offline   Reply With Quote
Old 02-08-2008, 10:17 PM   #25
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Archon is offline   Reply With Quote
Old 02-09-2008, 01:21 AM   #26
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

What'* that 80 and 90 degrees stuff? Never heard of that as a torque value.
Barry is offline   Reply With Quote
Old 02-09-2008, 02:58 AM   #27
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by Barry
What'* that 80 and 90 degrees stuff? Never heard of that as a torque value.
Torque to yield bolts usually have "angle torque" tightening specs like those. Basically, you snug them up to some pre-load then turn the head of the bolt another (n)degrees. In some applications, the total angle is achieved in several passes through the sequence. With torque to yield bolts, this brings you into the range where the bolt begins to stretch. Clamping force achieved with TTY bolts is more evenly distributed than can be obtained by relying on the torque value alone. Torque values are greatly affected by the condition of the bolt and the type of lubricants used on the threads. Almost all cylinder head bolts are now done this way.
bill buttermore is offline   Reply With Quote
Old 02-09-2008, 11:33 AM   #28
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Thanks Bill. It appears that water pump bolts are TTY. Does that mean they should be replaced if I replace the water pump?
Barry is offline   Reply With Quote
Old 02-09-2008, 03:31 PM   #29
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by Barry
Thanks Bill. It appears that water pump bolts are TTY. Does that mean they should be replaced if I replace the water pump?
Don't say I said so, , but depending on the application, most TTY bolts can be re-used. For critical applications like head gaskets, I almost always buy new bolts. But the last Lexus cylinder head I did I re-used the TTY bolts because the factory service manual permitted it. Don't sue me when your water pump falls off, but I have never bought new bolts for a water pump.
bill buttermore is offline   Reply With Quote
Old 02-09-2008, 06:29 PM   #30
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

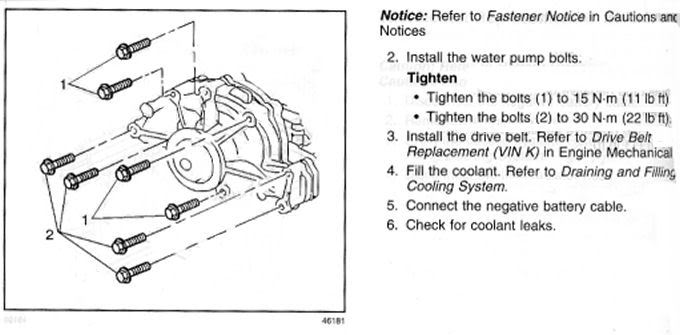

I don't know where that table Archon posted came from, but I checked my FSM and there is no indication the bolts for the Water Pump are TTY. It does have two sets of bolts that have different torque ratings.
