Old 03-06-2006, 10:56 PM   #11
Senior Member
Posts like a Northstar

Join Date: Jan 2005
Location: Richfield, MN
Posts: 781
Thanks: 0
Thanked 0 Times in 0 Posts
alec_b is on a distinguished road
Default

Yea those are the ones i got when i did my UIM/LIM. I just assumed that'* what everyone used... they did seem like a very solid design however.
alec_b is offline   Reply With Quote
Old 03-07-2006, 01:39 AM   #12
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by Logan
So where exactly was it that the old ones failed? (Never seen pics so clear)

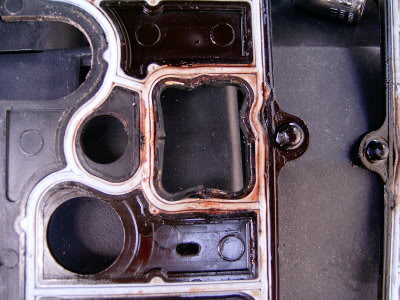

Here is a typical example - this pic swiped from Jr's3800 recent UIM/LIM fix:
http://www.bonnevilleclub.com/forum/...lim+gasket+pic

The plastic frame around the coolant passage distorts and the seal eventually is lost.

Name:  Picture234.jpg
Views: 2
Size:  32.3 KB
bill buttermore is offline   Reply With Quote
Old 03-07-2006, 02:25 AM   #13
Senior Member
Posts like a Camaro

Join Date: Nov 2002
Posts: 857
Thanks: 0
Thanked 0 Times in 0 Posts
Bugsi is on a distinguished road
Default Re: Aluminum Frame LIM gaskets for Series II pix (56k warnin

Quote:
Originally Posted by bill buttermore
Can't remember these pins. Do all Series IIs have locating pins on the cylinder heads?
In December my UIM went in my 97SE. From this thread:
http://www.bonnevilleclub.com/forum/...ic.php?t=44637
I got that same part number and gave it to my dealership. They ordered that gasket, and determined that whatever the deal is with the pins, they weren't compatible with my engine. I'm not sure exactly what the pins are or where they're supposed to go, but they didn't work with the rest of my engine, so they had to use whatever gaskets people used before these came out.

So no, apparently not all Series IIs have locating pins on the cylinder heads.
Bugsi is offline   Reply With Quote
Old 03-07-2006, 02:32 AM   #14
Senior Member
Posts like a Turbo

Join Date: May 2003
Location: B'ham.AL
Posts: 435
Thanks: 0
Thanked 0 Times in 0 Posts
ron350 is on a distinguished road
Default

Bill Buttermore and BigNews1

Thanks for the excellent pictures.
ron350 is offline   Reply With Quote
Old 03-07-2006, 10:57 AM   #15
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default Re: Aluminum Frame LIM gaskets for Series II pix (56k warnin

Quote:
Originally Posted by Bugsi
Quote:
Originally Posted by bill buttermore
Can't remember these pins. Do all Series IIs have locating pins on the cylinder heads?
In December my UIM went in my 97SE. From this thread:
http://www.bonnevilleclub.com/forum/...ic.php?t=44637
I got that same part number and gave it to my dealership. They ordered that gasket, and determined that whatever the deal is with the pins, they weren't compatible with my engine. I'm not sure exactly what the pins are or where they're supposed to go, but they didn't work with the rest of my engine, so they had to use whatever gaskets people used before these came out.

So no, apparently not all Series IIs have locating pins on the cylinder heads.
Hmmmm. Ben was sold the aluminum ones for his '97 SE, but you were told they would not work on yours. This may be a little tricky to figure out.
bill buttermore is offline   Reply With Quote
Old 03-07-2006, 11:04 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think they are all the same design.. the locating pins merely hold the gaskets in place on the heads better.
BillBoost37 is offline   Reply With Quote
Old 03-07-2006, 11:10 AM   #17
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

We finally have visual P/N confirmation on these. Thanks, youse guys!
lash is offline   Reply With Quote
Old 03-07-2006, 02:18 PM   #18
Senior Member
Posts like a Camaro

Join Date: Nov 2002
Posts: 857
Thanks: 0
Thanked 0 Times in 0 Posts
Bugsi is on a distinguished road
Default Re: Aluminum Frame LIM gaskets for Series II pix (56k warnin

Quote:
Originally Posted by bill buttermore
Hmmmm. Ben was sold the aluminum ones for his '97 SE, but you were told they would not work on yours. This may be a little tricky to figure out.
Exactly. It looks the the deciding factor is the cylinder heads. At some point in production they must have changed. I wonder if the compatible cylinder heads are the "Pre 1997.5" or "Post 1997.5". I'd guess "Post" but we need to nail this down if we can.

I'll leave open the possibility that my dealership lied to me, although it looks like they were pretty specific about their reason why the gaskets would not work on my car. If it'* just a matter of holes for locator pins, I wonder why GM doesn't make two versions of the aluminum gasket, one with pins and one without?
Bugsi is offline   Reply With Quote
Old 03-07-2006, 02:40 PM   #19
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default Re: Aluminum Frame LIM gaskets for Series II pix (56k warnin

Quote:
Originally Posted by Bugsi
If it'* just a matter of holes for locator pins, I wonder why GM doesn't make two versions of the aluminum gasket, one with pins and one without?
THAT, I think is a very valid question. I would tend to believe that these gaskets will fit them all, since it'* well known that the LIM gasket issue is more widespread than pre-'97.5

The thing we will have to try and verify is the differences between the earlier and later S2 3800 head-to-LIM mating surfaces. As other members do their gaskets, we'll have to remember to ask for specific pics.
lash is offline   Reply With Quote
Old 03-07-2006, 02:45 PM   #20
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Corvettecrazy used 2nd design (w/pins) on his 96
I used them on my 97

I think that dealer that didn't give them up was smoking something...
BillBoost37 is offline   Reply With Quote
