Default Motor Mount In The Way, WTF??

OK, so now I really need some help from somebody who'* done the serpentine belt replacement before, on a '97 SE. It really looks to me like I have to remove the freakin' actual mount from the engine and transaxle assembly in order to get the routing correct. But that seems to be ridiculously difficult, as one bolt is behind the power steering pump pulley, which is pressed on?!?

Please tell me that I'm missing something really obvious and simple here. Or else let me in on the real secret to getting this done sometime today. I've never run into such a PIA belt replacement before. Some engineering team should be shot, even IF they are retired already.
lash is offline   Reply With Quote
Old 12-28-2005, 02:14 PM   #12
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

There is a sleeve near the crank sensor that will come out, you have to remove the bolt and then you will be able to install the belt...

You may want to unplug the crank sensor to avoid any damage to the connector or the crank sensor its self..

I wish I had a pic of that sleeve

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 12-28-2005, 02:16 PM   #13
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

you only have to pull the bottom motor mount nut, unscrew the mount bolt, and slide out the spacer. Put belt on and reassemble.
sonoma_zr2 is offline   Reply With Quote
Old 12-28-2005, 02:19 PM   #14
Senior Member
True Car Nut
Thread Starter

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

OK, while waiting for someone to pipe in, I did a quick search and found this:

http://www.bonnevilleclub.com/forum/...lt+replacement

I hope this helps. I was about to throw something. I'll check in later.

Cheers!
lash is offline   Reply With Quote
Old 12-28-2005, 02:21 PM   #15
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

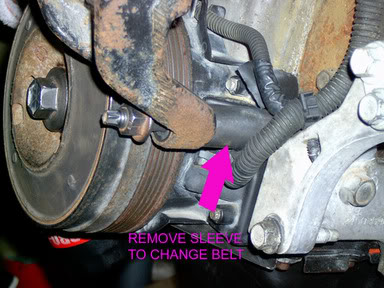

Heres a pic of that sleeve that bill buttermore posted:
Name:  L36beltchg.jpg
Views: 0
Size:  39.9 KB
95naSTA is offline   Reply With Quote
Old 12-29-2005, 11:18 AM   #16
Senior Member
True Car Nut
Thread Starter

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Thanks 95naSTA! I appreciate it.

Anyway, for those interested, Here'* some pics of the carnage and etc. (These are clickable thumbnails for those who care):

The mess I found under the hood (and yes I know it'* very dirty under there...)

The melted plastic pulley w/156,000 on it.

Pulley parts on bench, bearings were all gone...

Shiny new metal pulley

New pulley on car

New Gatorback belt and old belt remains

Access to stud through wheel well (didn't remove tire)

Torx stud w/nut removed

Someone had already been grinding on this spacer and not a very clean job either...
lash is offline   Reply With Quote
Old 12-29-2005, 12:04 PM   #17
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

I've got ya beat




:Hijack mode off:
sonoma_zr2 is offline   Reply With Quote
Old 12-29-2005, 12:28 PM   #18
Senior Member
True Car Nut
Thread Starter

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

I'll give you that one, !
lash is offline   Reply With Quote
Old 12-29-2005, 01:00 PM   #19
Member
Posts like a V-Tak

Join Date: Nov 2002
Location: Pleasant Bend, Ohio
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
coopsse is on a distinguished road
Default

I know you already have the belt routing diagram, but if you still have the owner'* manual, it is in there. I wasted a few hours looking for a diagram awhile back...
coopsse is offline   Reply With Quote
Old 12-29-2005, 01:05 PM   #20
Senior Member
True Car Nut
Thread Starter

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Quote:
Originally Posted by coopsse
I know you already have the belt routing diagram, but if you still have the owner'* manual, it is in there. I wasted a few hours looking for a diagram awhile back...
Thanks, I appreciate your response, but don't have the OM.

At least now it'* posted here for someone else to find, right?
